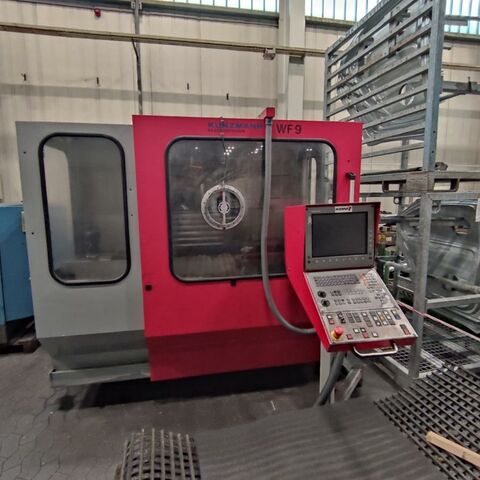

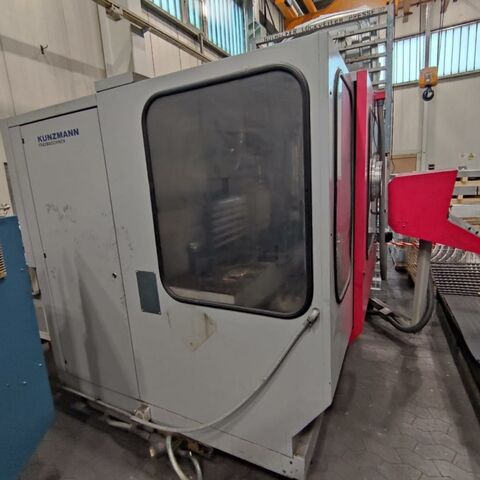

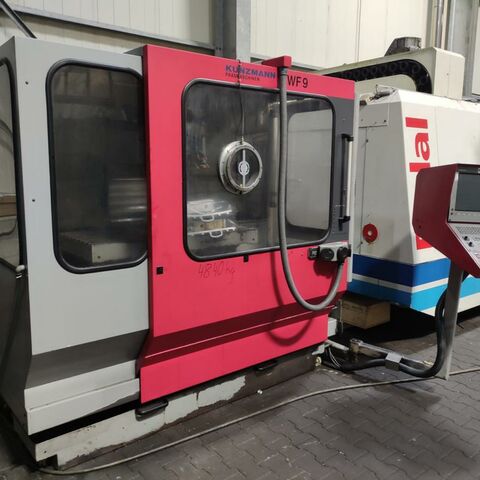

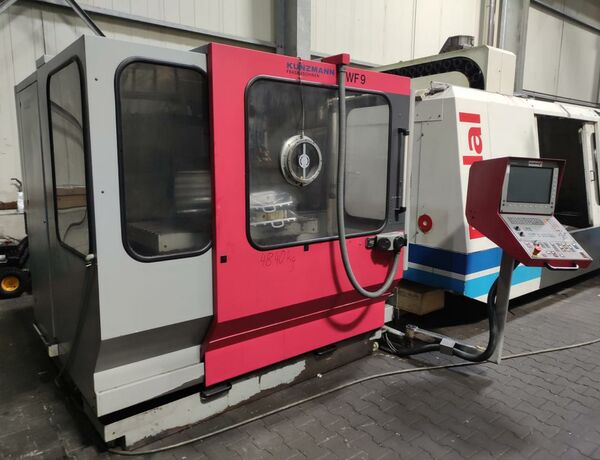

Machining Center - Universal

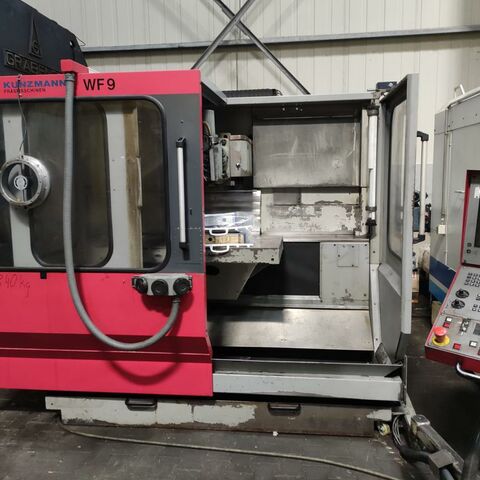

KUNZMANN WF 9 CNC
Catalog no. 1111181
Built in 2001, Control TNC 426,
Machine has a Heidenhain TNC 426 control and an additional universal table.

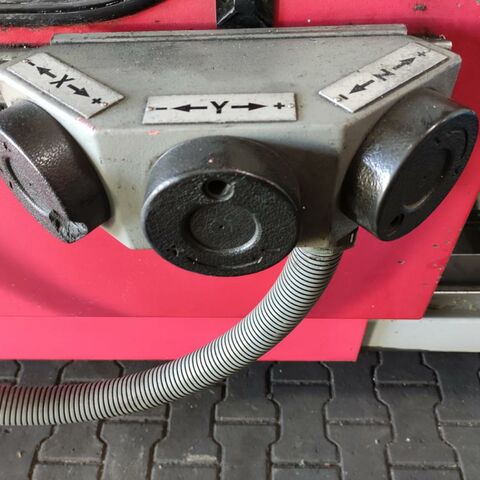

Machine has electronic hand wheels in all three axes.
| x-travel |
|---|
| 0900 mm |
| y-travel |
|---|
| 600 mm |
| z-travel |
|---|
| 600 mm |
| table-size |
|---|
| 1200 x 600 mm |
| spindle turning speed range |
|---|
| 1- 5000 U/min |

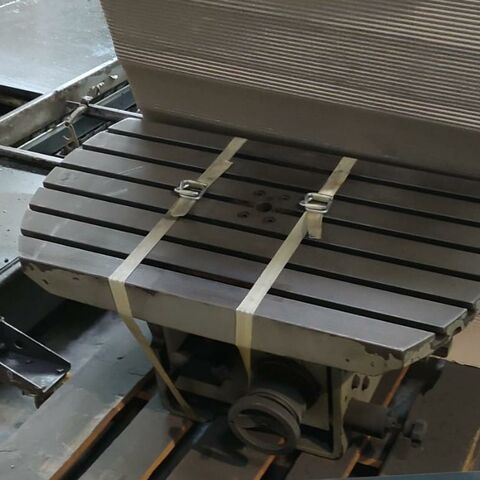

| rotary table dia. |
|---|
| 750 x 500 mm |
| spindle taper |
|---|
| SK 40 |
| control |
|---|
| TNC 426 |
| drive capacity - spindle motor |
|---|
| 18 KVA |
| feed stepless |
|---|
| 0- 2000 mm/min |
| rapid traverse |
|---|
| 10 m/min |
| tool change unit |
|---|
| 22 Pos. |
| total power requirement |
|---|
| 11 kW |
| weight of the machine ca. |
|---|
| 5 t |
| dimensions of the machine ca. |
|---|
| 3,8 x 3 x 2,6 m |
Additional Information
Country of origin Germany, Current location warehouse Ennepetal H 1,
Delivery as per agreement, Quotation ex site, free on truck,
Price on request
