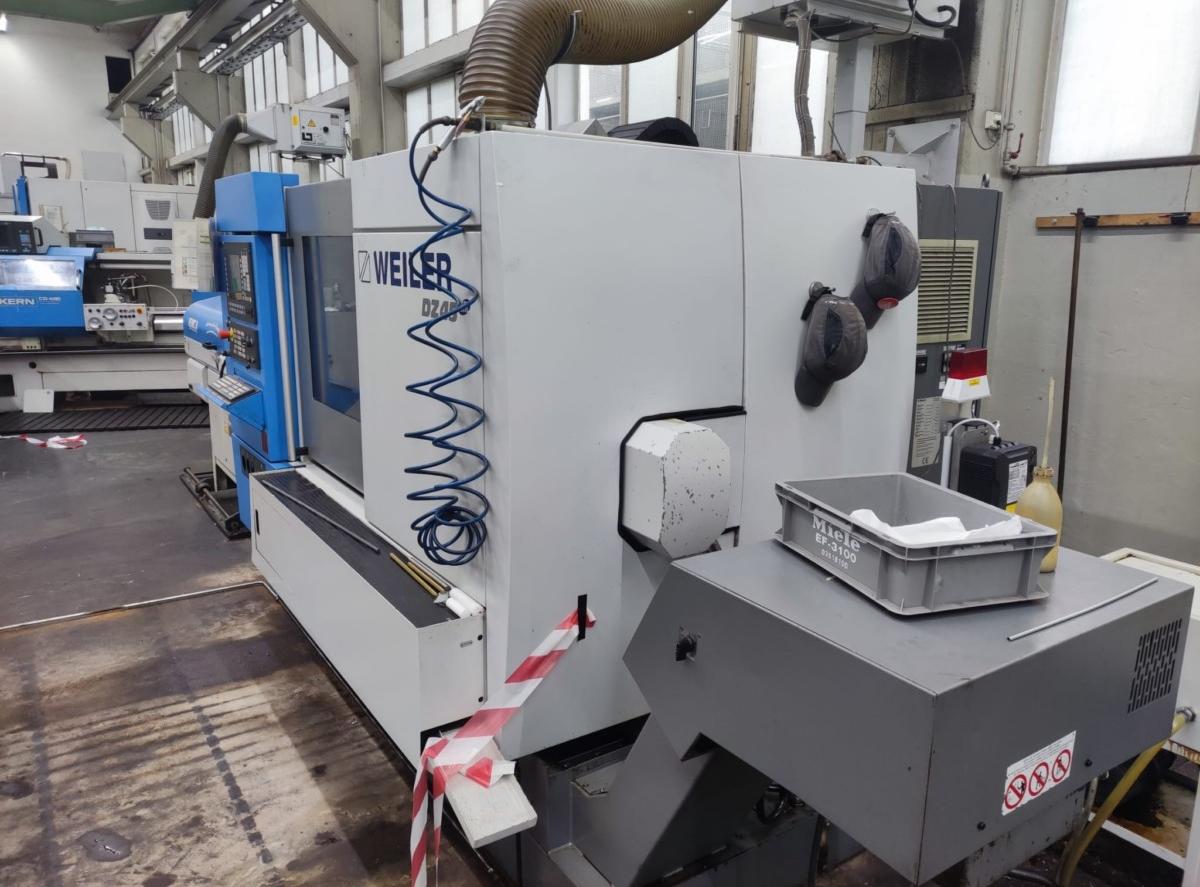

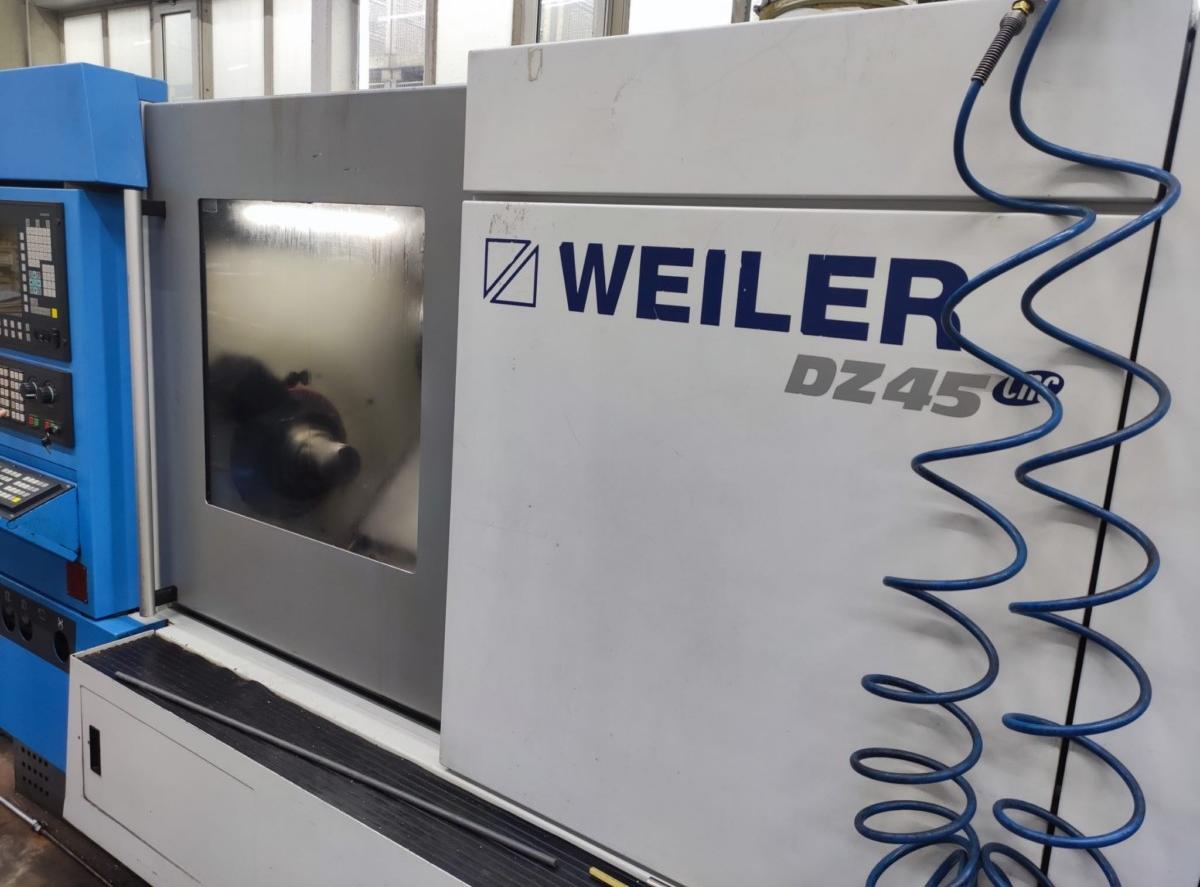

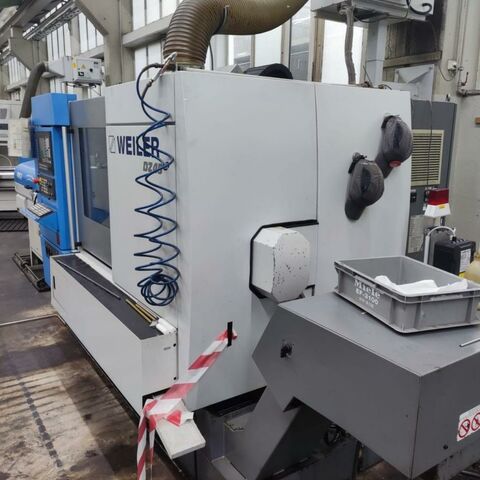

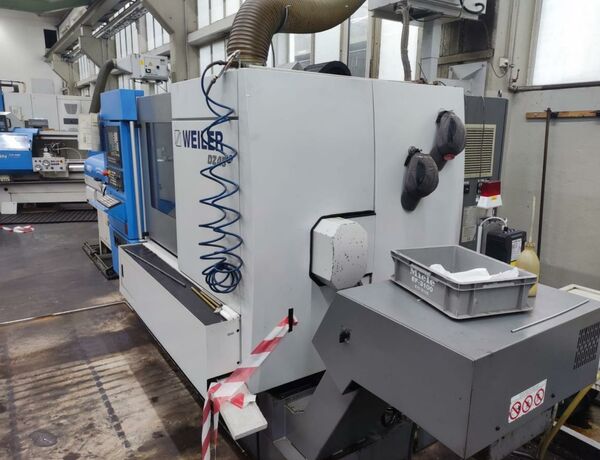

CNC Lathe

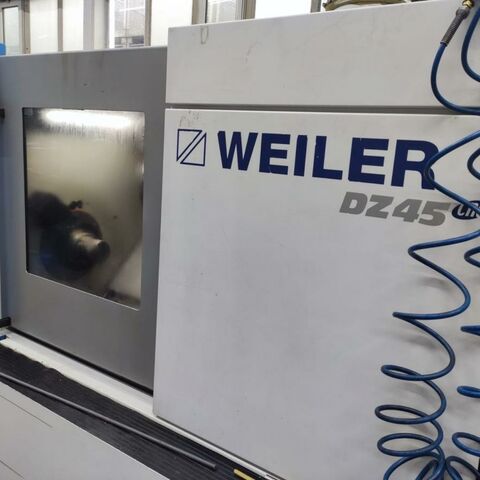

WEILER DZ 45
Catalog no. 203459

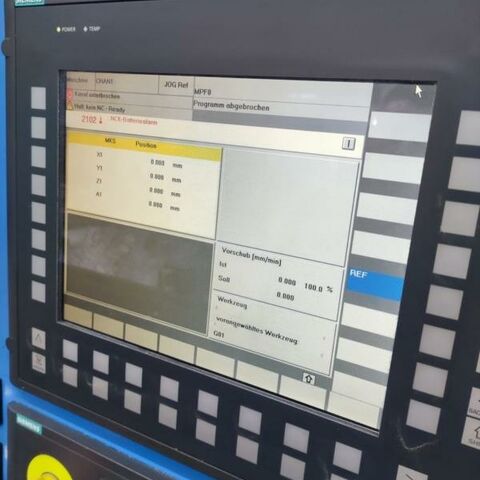

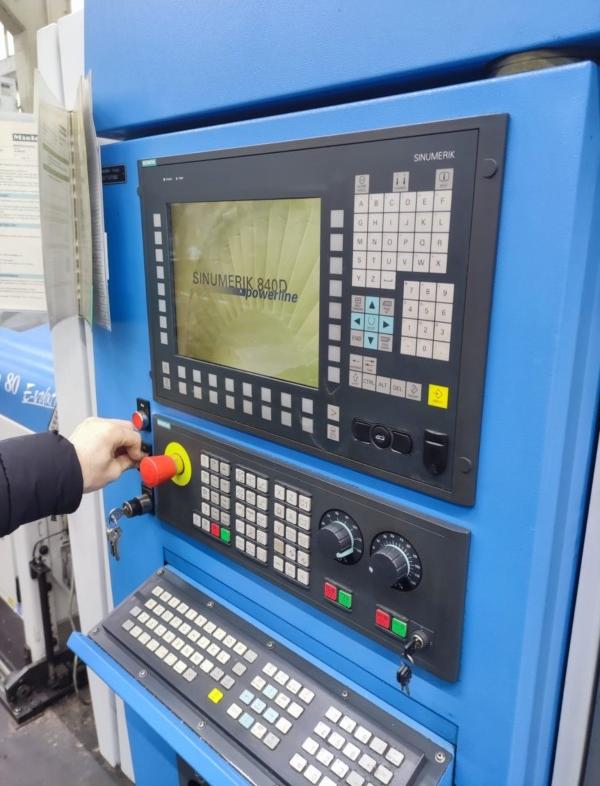

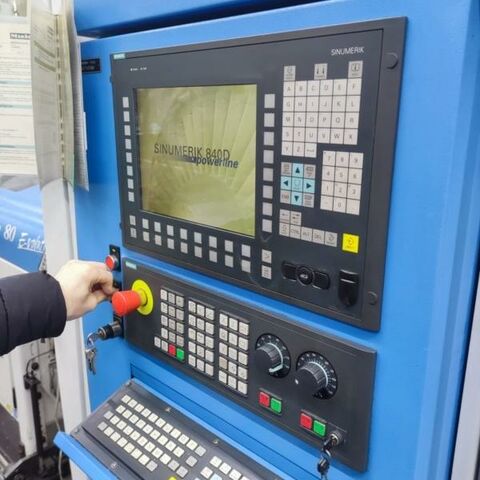

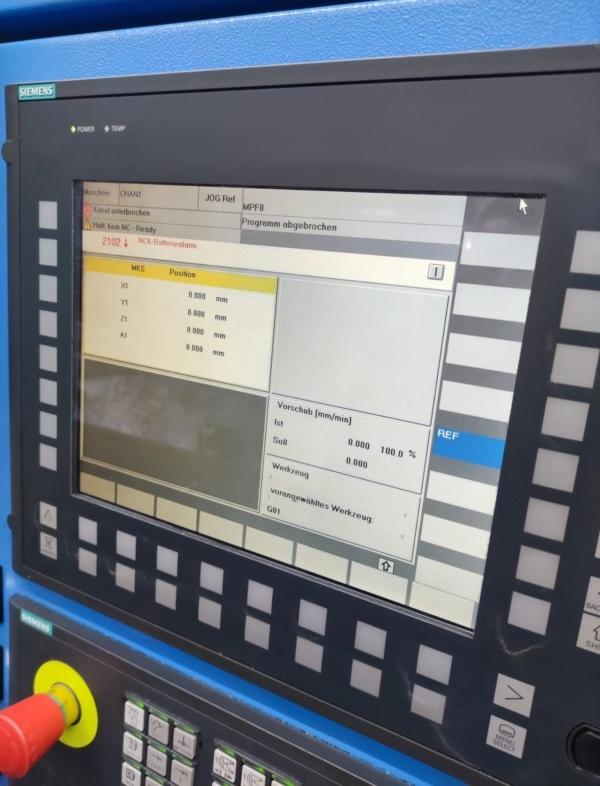

Built in 2003, Control 840 D Siemens,

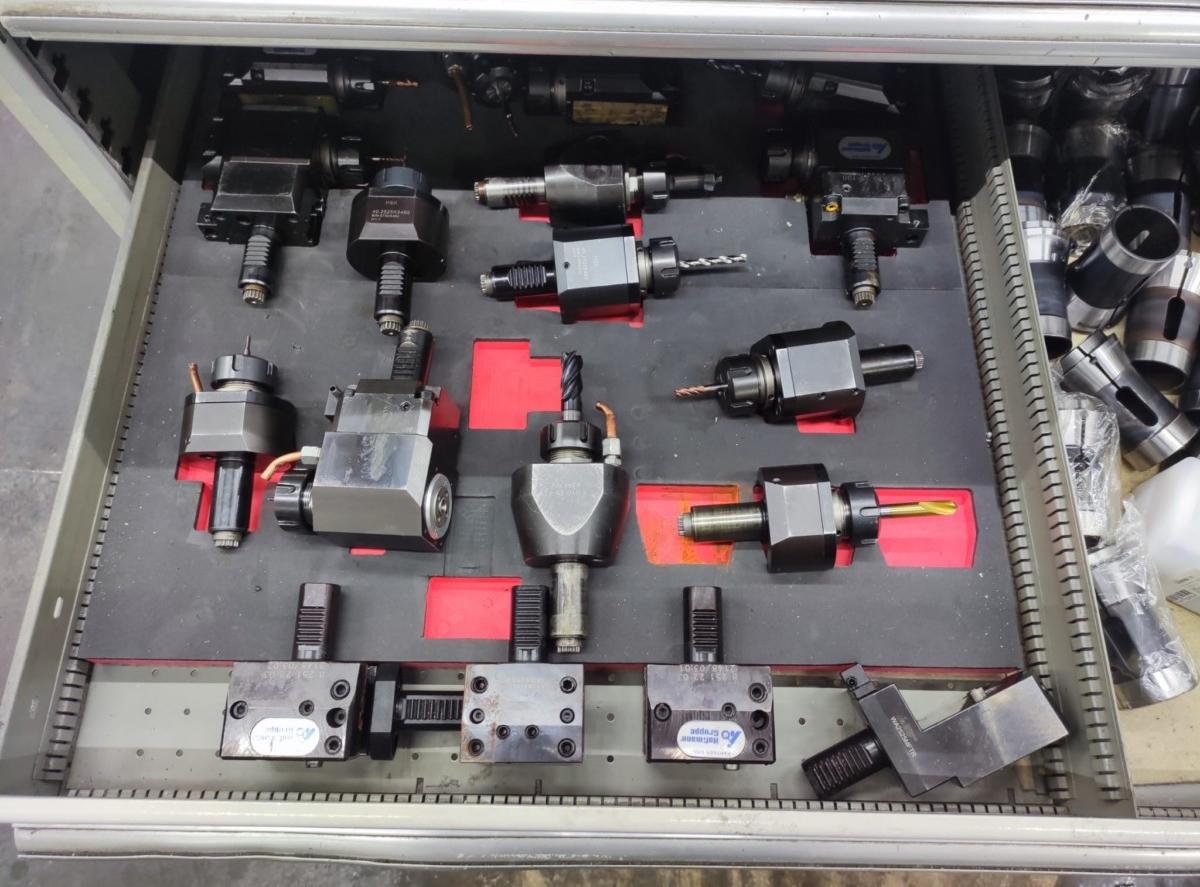

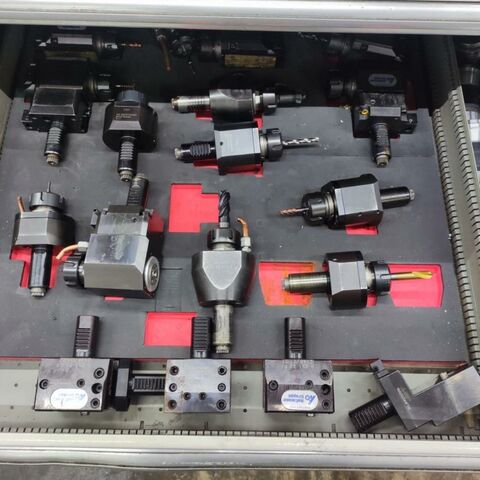

CNC - Lathe with sub spindle. Control Siemens 840 D. Machine has Y- axe and

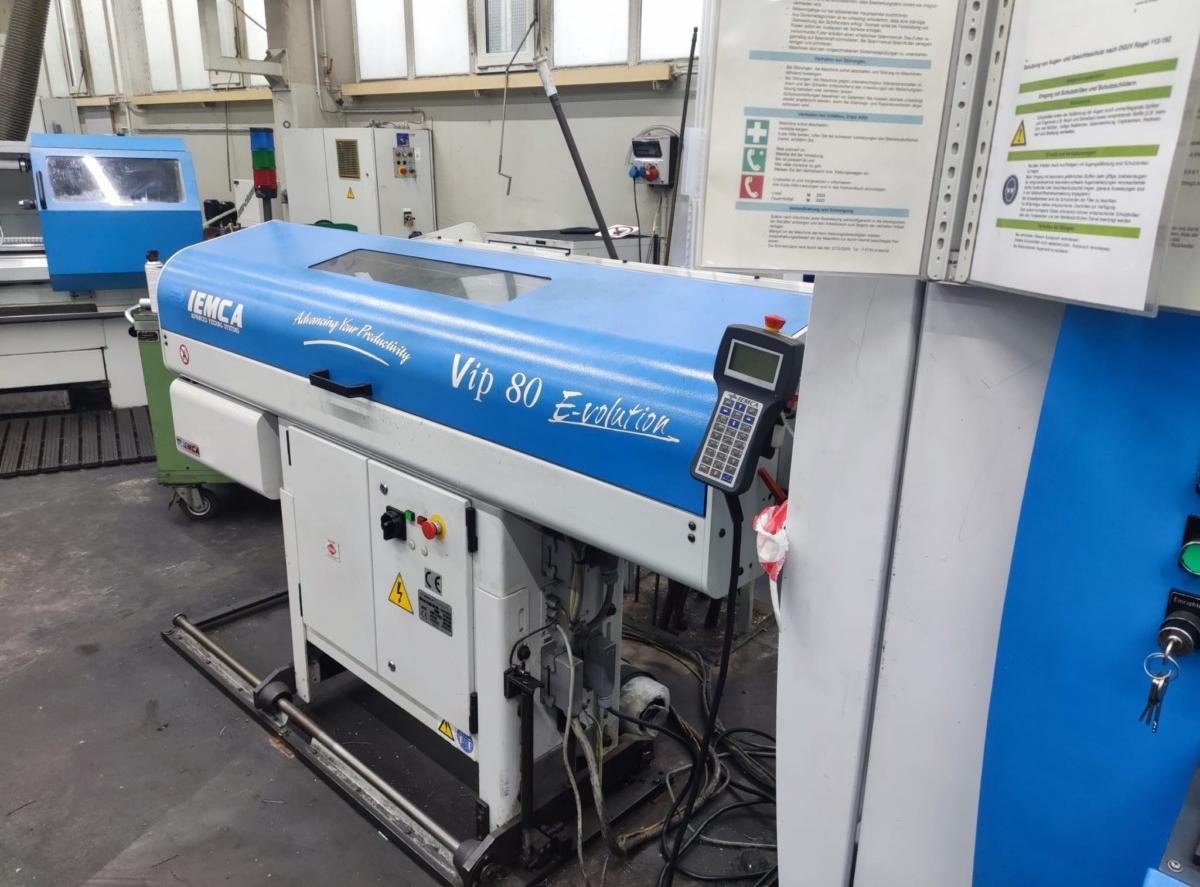

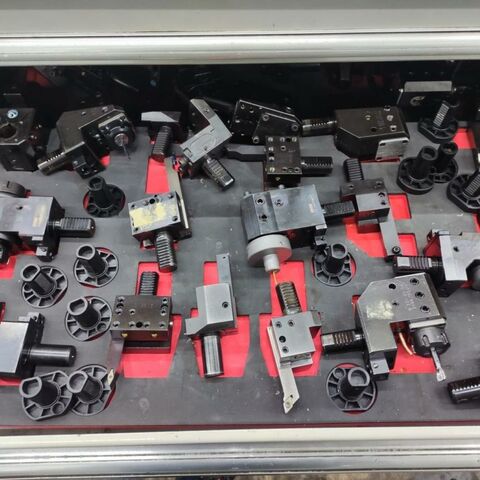

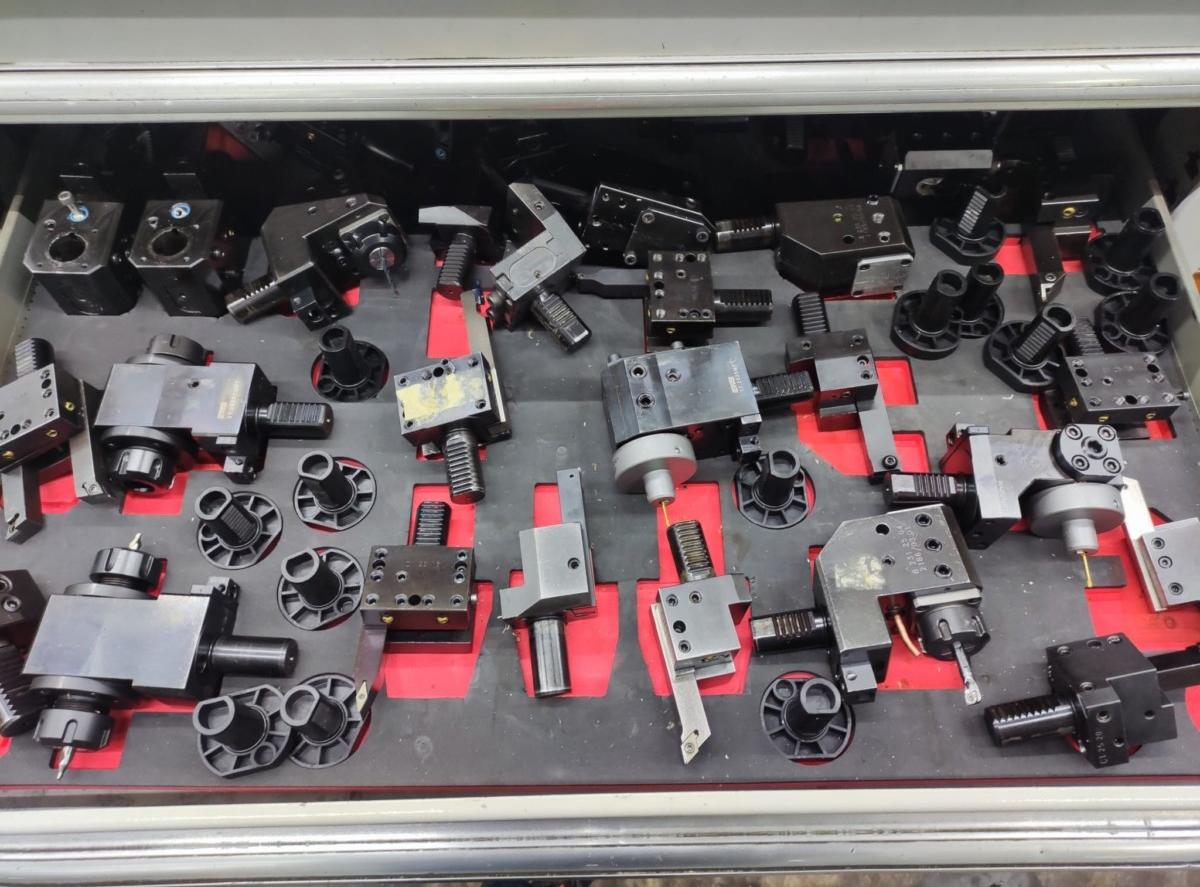

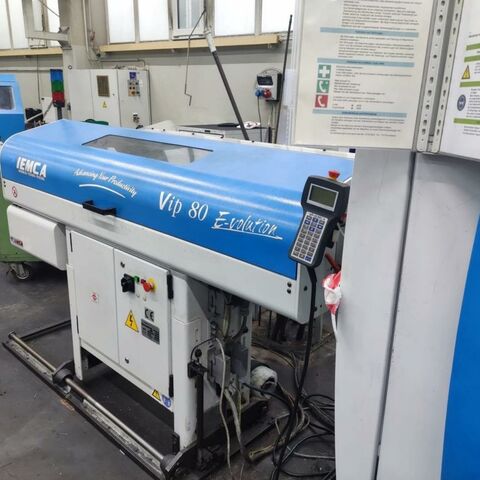

live tooling. We supply an IEMCA VIP 80 bar loader along with the machine and
many accessories.
| turning diameter |
|---|
| 0240 mm |
| turning length |
|---|
| 525 mm |
| control |
|---|
| 840 D Siemens |
| centre height |
|---|
| 120 mm |
| turning diameter over bed |
|---|
| 450 mm |
| turning dia. over face-slide |
|---|
| 300 mm |
| turning speed range - main spindle |
|---|
| max. 5.000 min/-1 |
| power capacity - main spindel |
|---|
| 21,5 kW |
| usable bar diameter |
|---|
| 42 mm |
| travel -x axis |
|---|
| 210 mm |
| travel -y axis |
|---|
| 80 mm |
| travel -z axis |
|---|
| 525 mm |
| number of toolpositions |
|---|
| 16 pos. |
| tool taper |
|---|
| VDI 30 |
| Shank diameter |
|---|
| 20 x 20 mm |
| rapid traverse |
|---|
| X: 24 / Z: 30 m/min |
Additional Information
Country of origin Germany,
Delivery to be agreed, Quotation ex stock, free on truck,
Price on request
