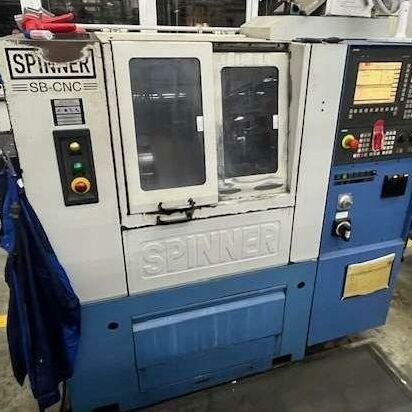

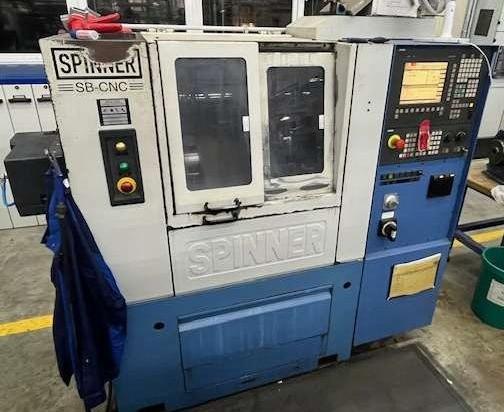

CNC Lathe
SPINNER SB-CNC
Catalog no. 203465

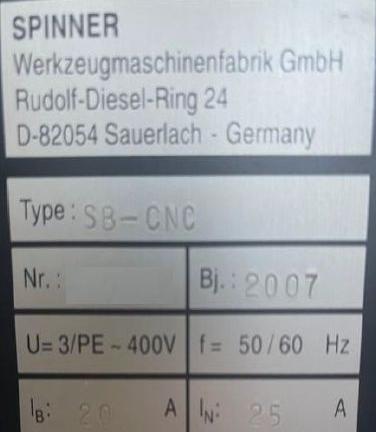

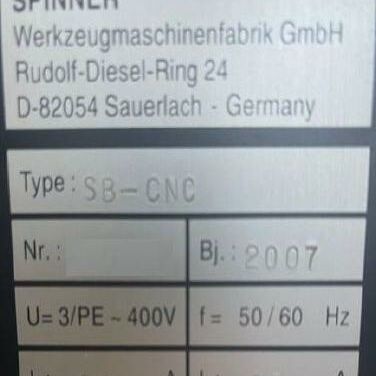

Built in 2007, Control 810D Siemens,

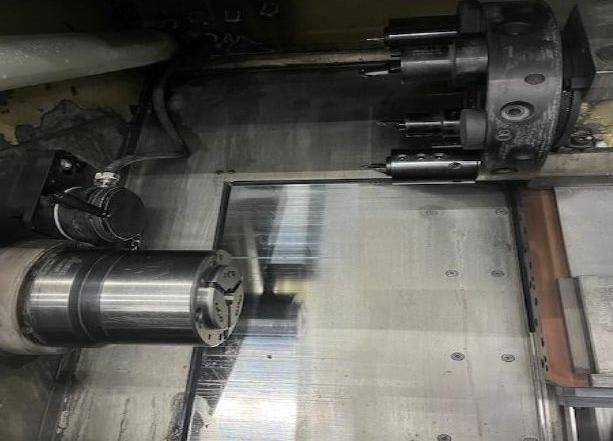

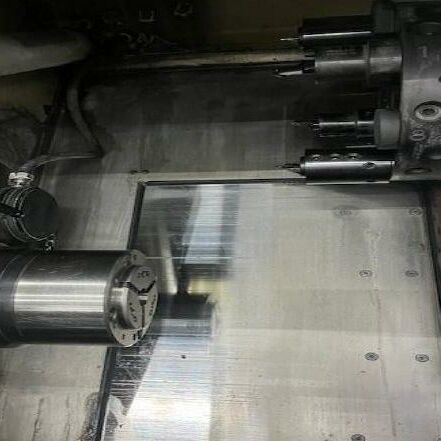

Machine has 8 position turret with 6 pos. live tooling. Machine has VDI 20.
Machine is with tailstock !
| turning diameter over bed |
|---|
| 0140 mm |
| turning length |
|---|
| 285 mm |
| control |
|---|
| 810D Siemens |
| turning diameter over bed slide |
|---|
| 140 mm |
| swing dia. |
|---|
| 300 mm |
| spindle turning speed - stepless |
|---|
| 0- 5000 U/min- rpm |
| spindle bore |
|---|
| 45 mm |
| feeds |
|---|
| 0- 12 m/min |
| voltage |
|---|
| 400 V |
| connected load |
|---|
| 14 KW |
| face slide travel |
|---|
| 250 mm |
| longitudinal travel |
|---|
| 285 mm |
| dimensions of the machine ca. |
|---|
| 2,7 x 1 x 1,6 m |
| taper diameter |
|---|
| VDI 20 mm |
| main drive motor |
|---|
| 10,2 kW |
| weight of the machine ca. |
|---|
| 1,7 t |
Additional Information
Country of origin Germany, Current location ex site,
Delivery as per agreement, Quotation ex place,
Price on request
