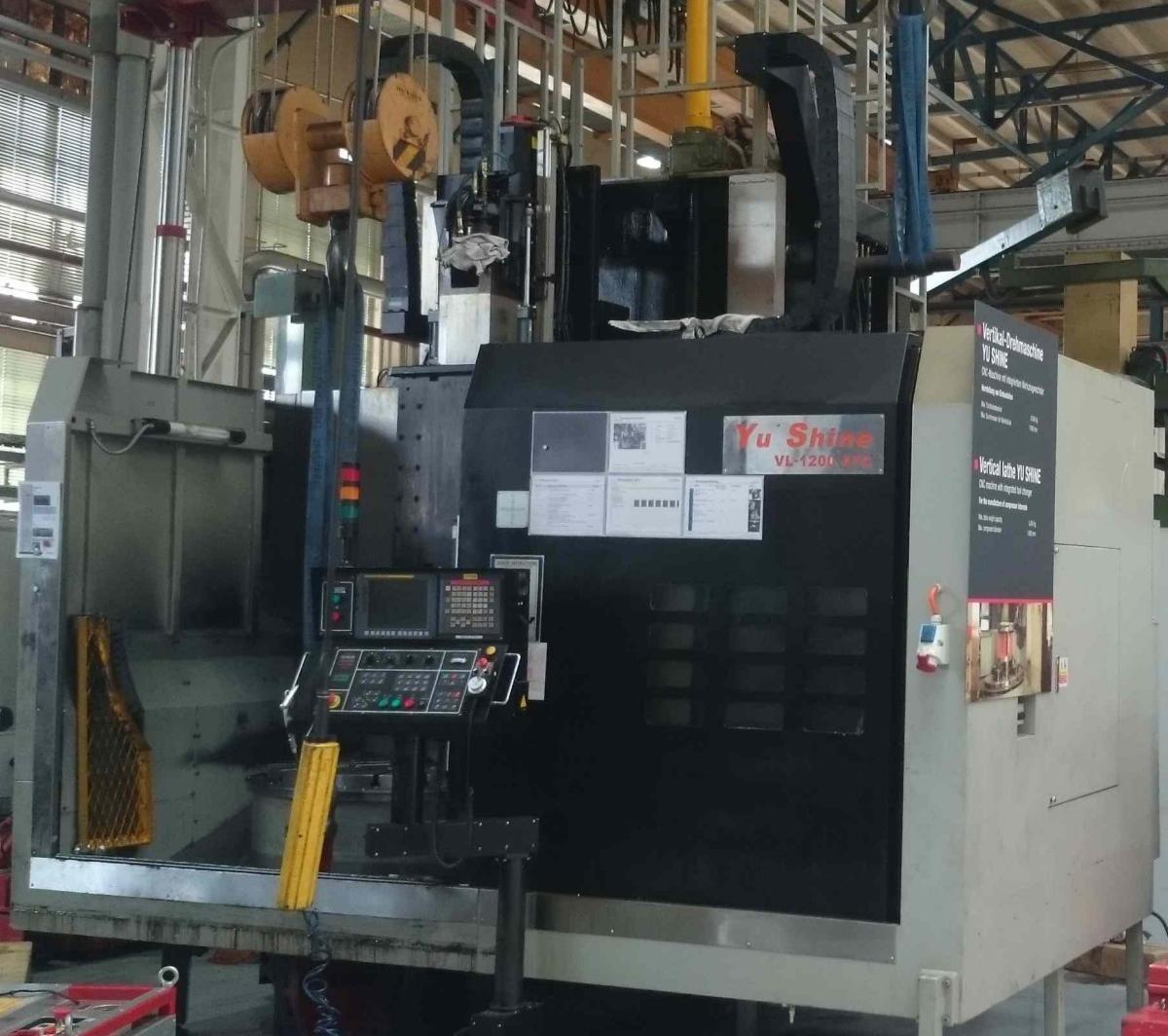

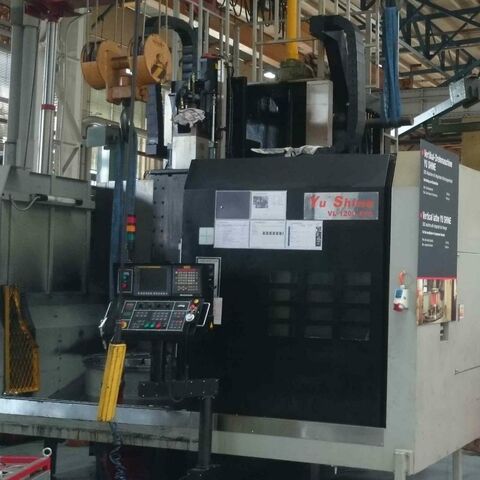

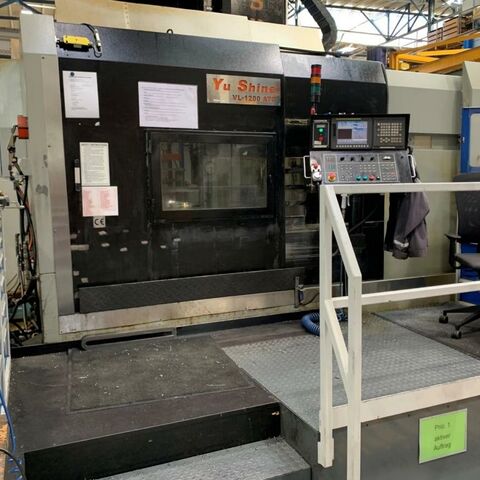

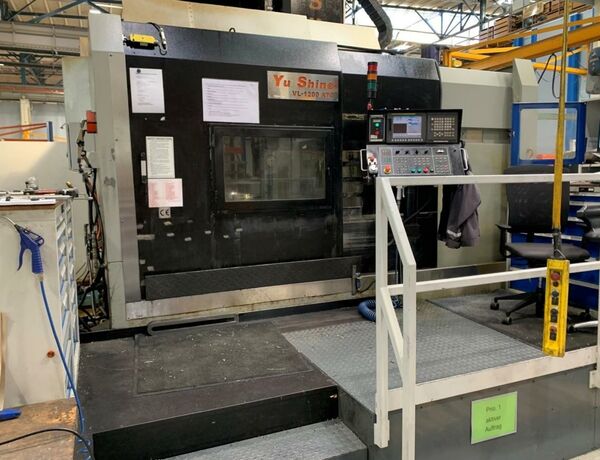

Vertical Turret Lathe - Single Column

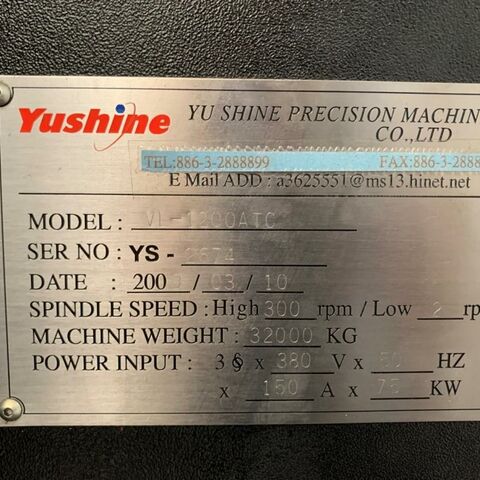

YU SHINE VL 1200 ATC
Catalog no. 401012
Built in 2009, Control 0i-TD Fanuc,

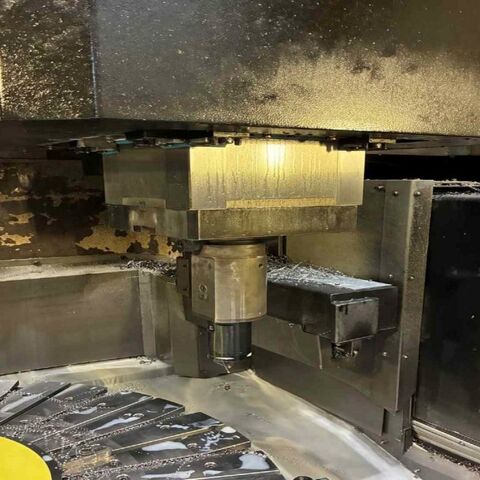

CNC vertical lathe with 12 positions ATC. Spindle reception is BT 50.

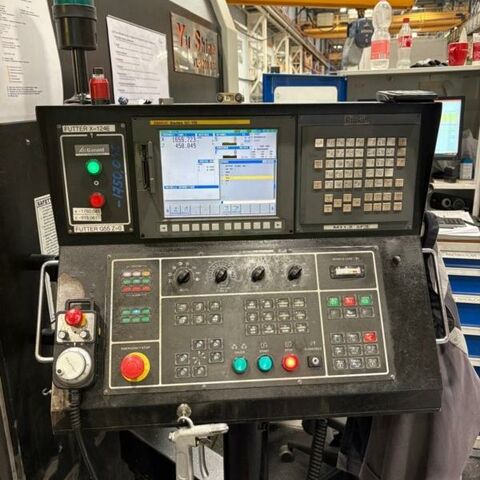

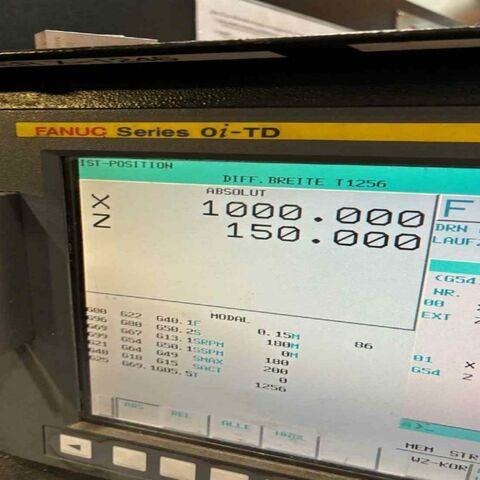

Control: Fanuc 0i-TD

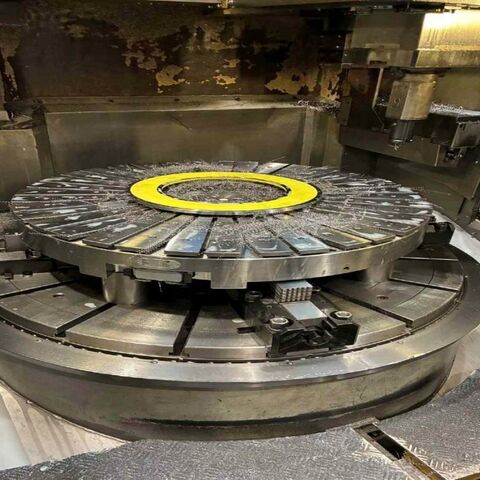

| faceplate diameter |
|---|
| 1250 mm |
| turning height |
|---|
| 1250 mm |
| Control |
|---|
| 0i-TD Fanuc |
| max. torque at faceplate |
|---|
| 12500 Nm |
| max. turning diameter |
|---|
| 1600 mm |
| max. workpiece weight |
|---|
| 5000 kg |
| table speed |
|---|
| 2- 300 min/-1 |
| x-axis |
|---|
| 1475 mm |
| z-axis |
|---|
| 900 mm |
| rapid traverse |
|---|
| 10 m/min |
| spindle cone ISO |
|---|
| BT50 |
| tool capacity |
|---|
| 12 pos. |
| total power requirement |
|---|
| 75 kW |
| weight of the machine ca. |
|---|
| 32 t |
| dimensions of the machine ca. |
|---|
| 4,7 x 5,8 x 5,5 m |
Additional Information
Country of origin Taiwan, Current location ex site,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
