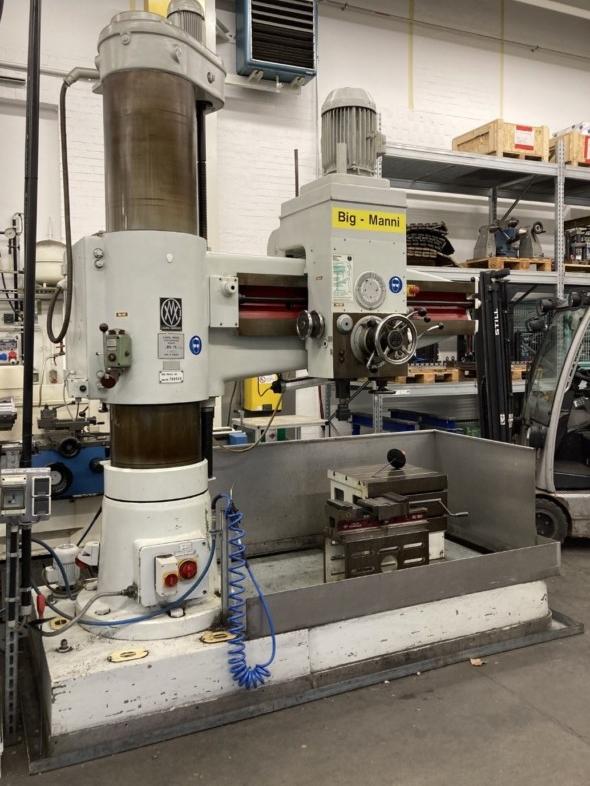

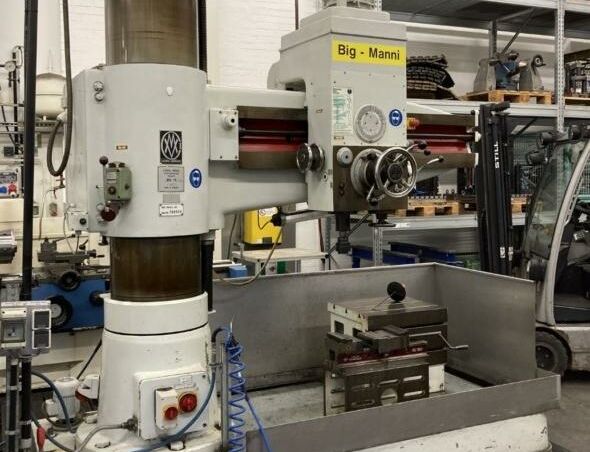

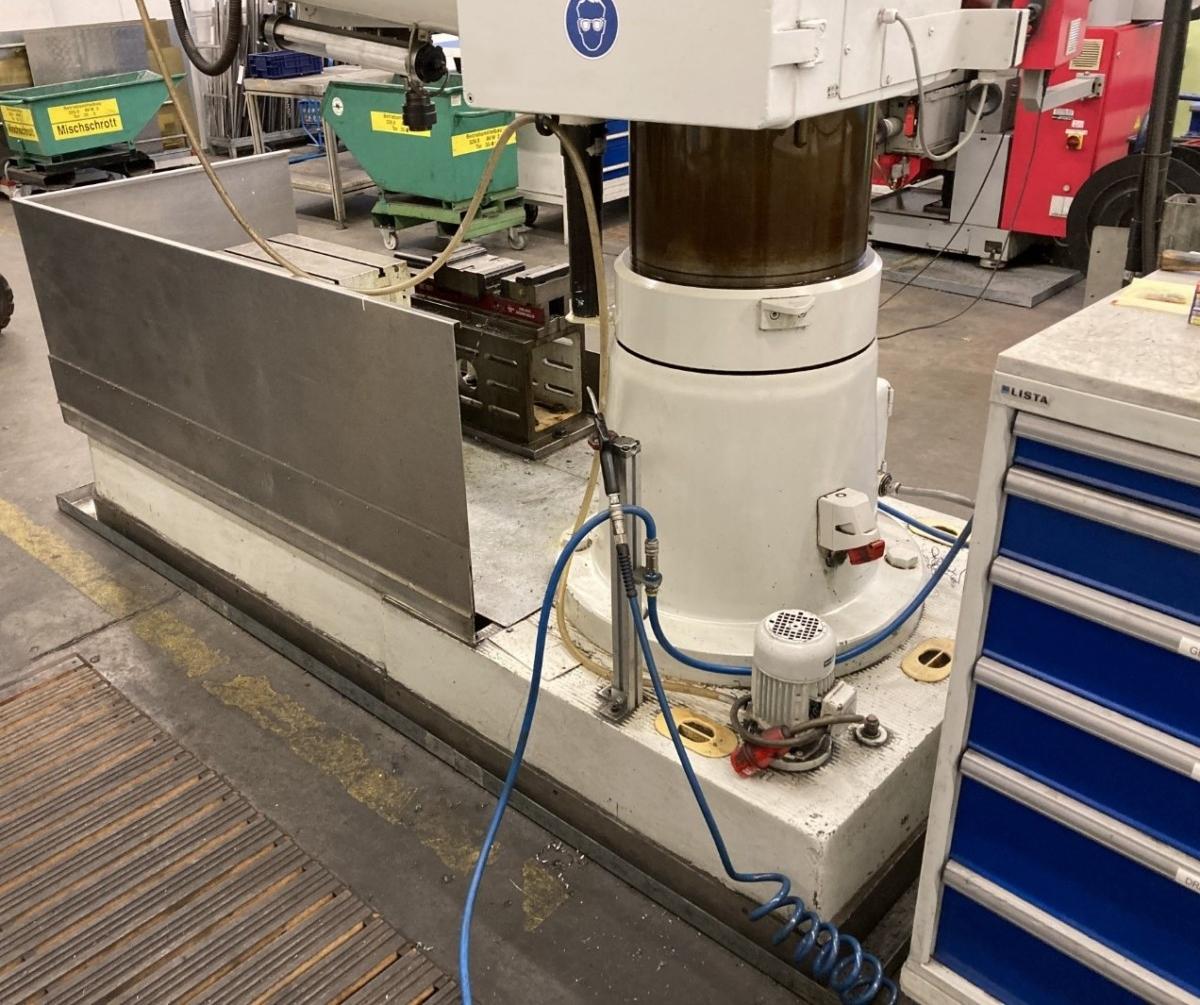

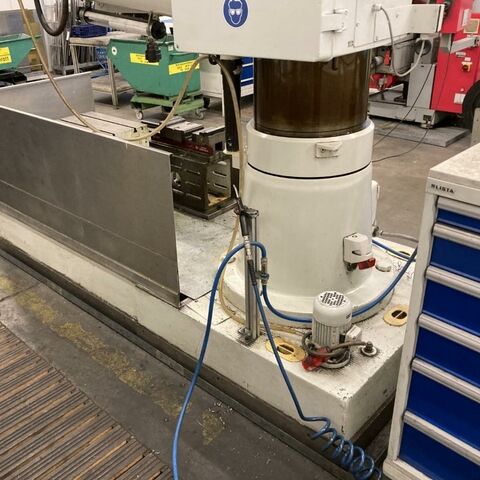

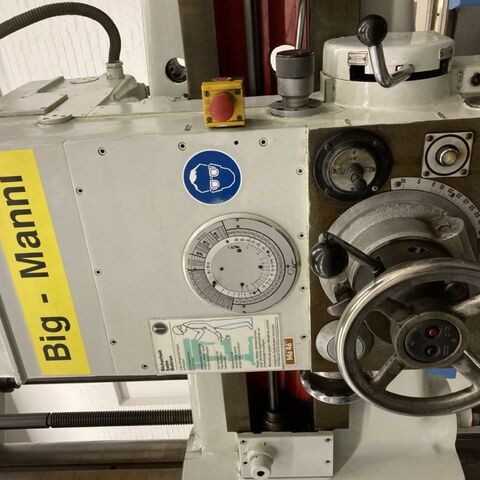

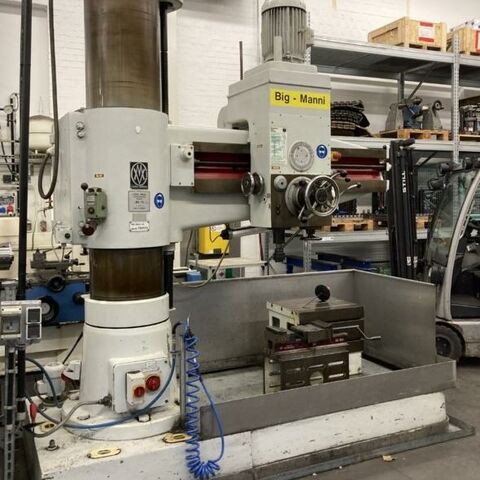

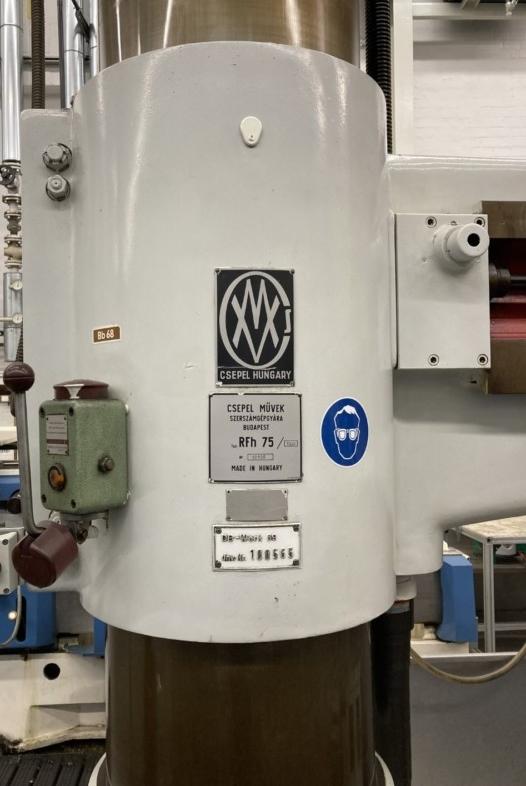

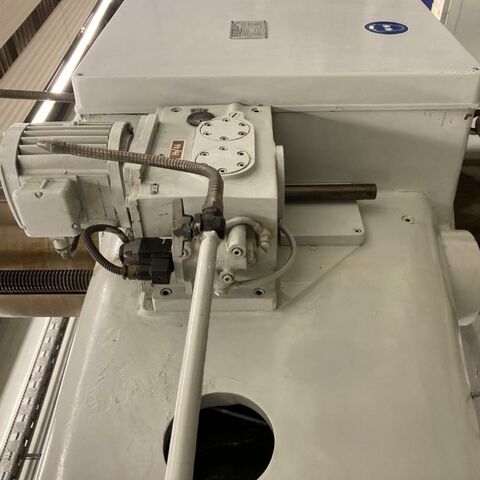

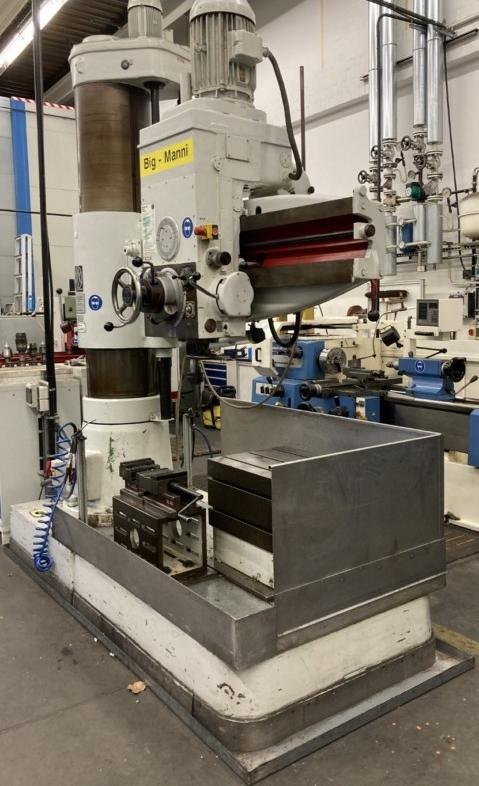

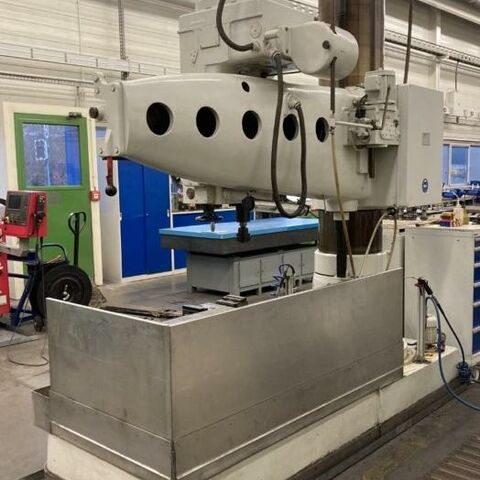

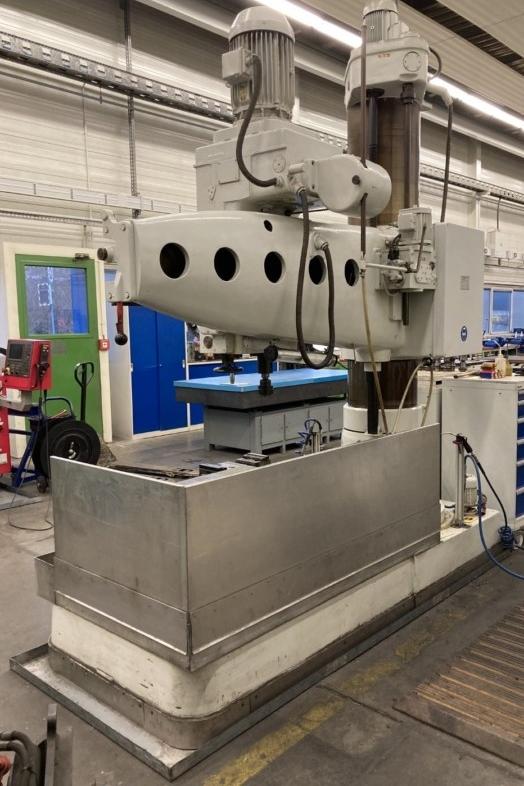

Radial Drilling Machine

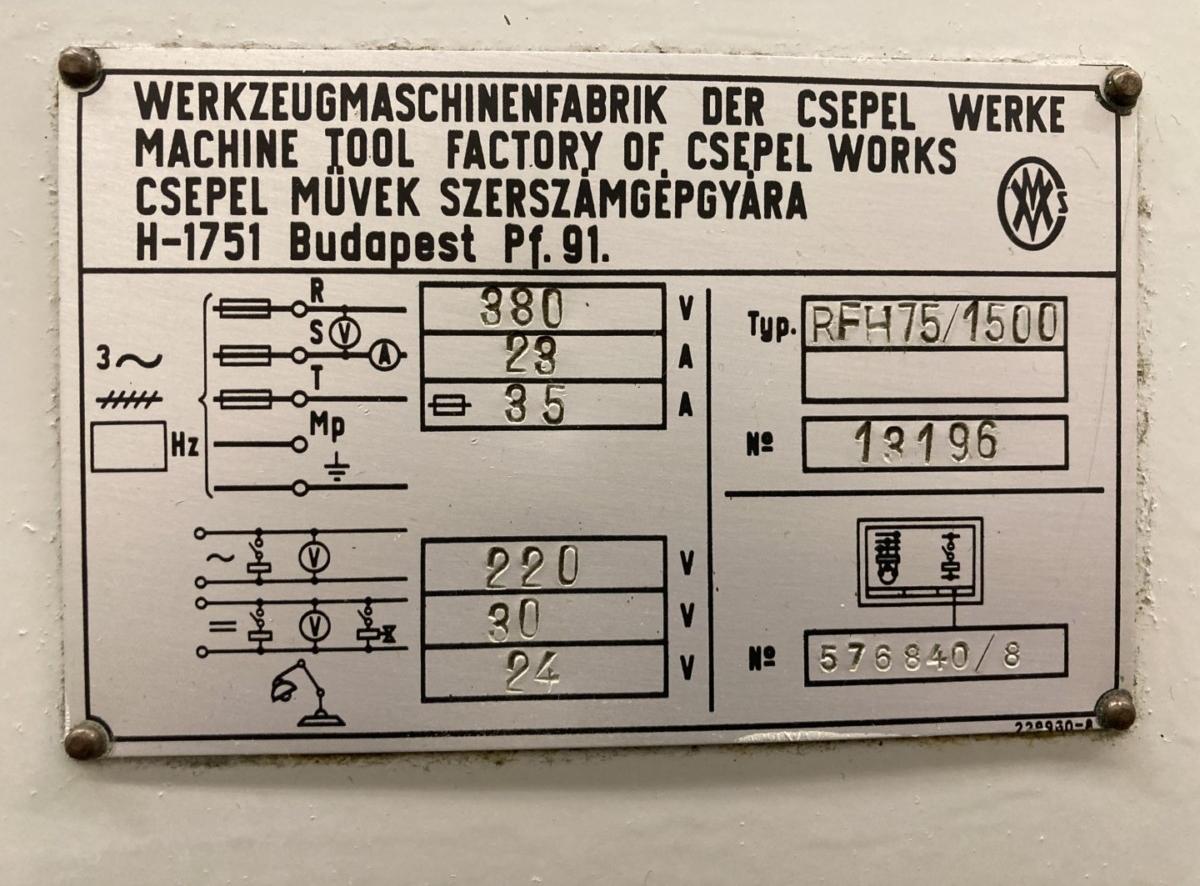

CSEPEL RFh 75/1500
Catalog no. 60105
Built in 1981,
With table.
| drilling capacity steel/cast iron |
|---|
| 75/90 mm |
| throat max. |
|---|
| 1500 mm |
| spindle taper: |
|---|
| MK5 |
| throat min. |
|---|
| 440 mm |
| drilling depth in one stroke |
|---|
| 380 mm |
| vertical adjustment of arm |
|---|
| 950 mm |
| base plate surface area |
|---|
| 1800 x 1100 mm |
| spindle turning speed range |
|---|
| 19- 1900 U/min |
| feeds |
|---|
| 0,05 - 2 mm/U |
| dimensions of the machine ca. |
|---|
| 2,75 x 1,13 x 3,4 m |
| total power requirement |
|---|
| 9 kW |
| weight |
|---|
| 6,3 t |
Additional Information
Country of origin Hungary,
Delivery immediately, Quotation ex stock, free on truck,
Price on request
