Machining Center - Horizontal

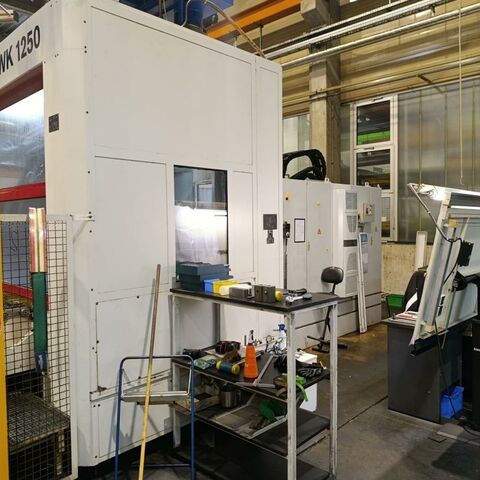

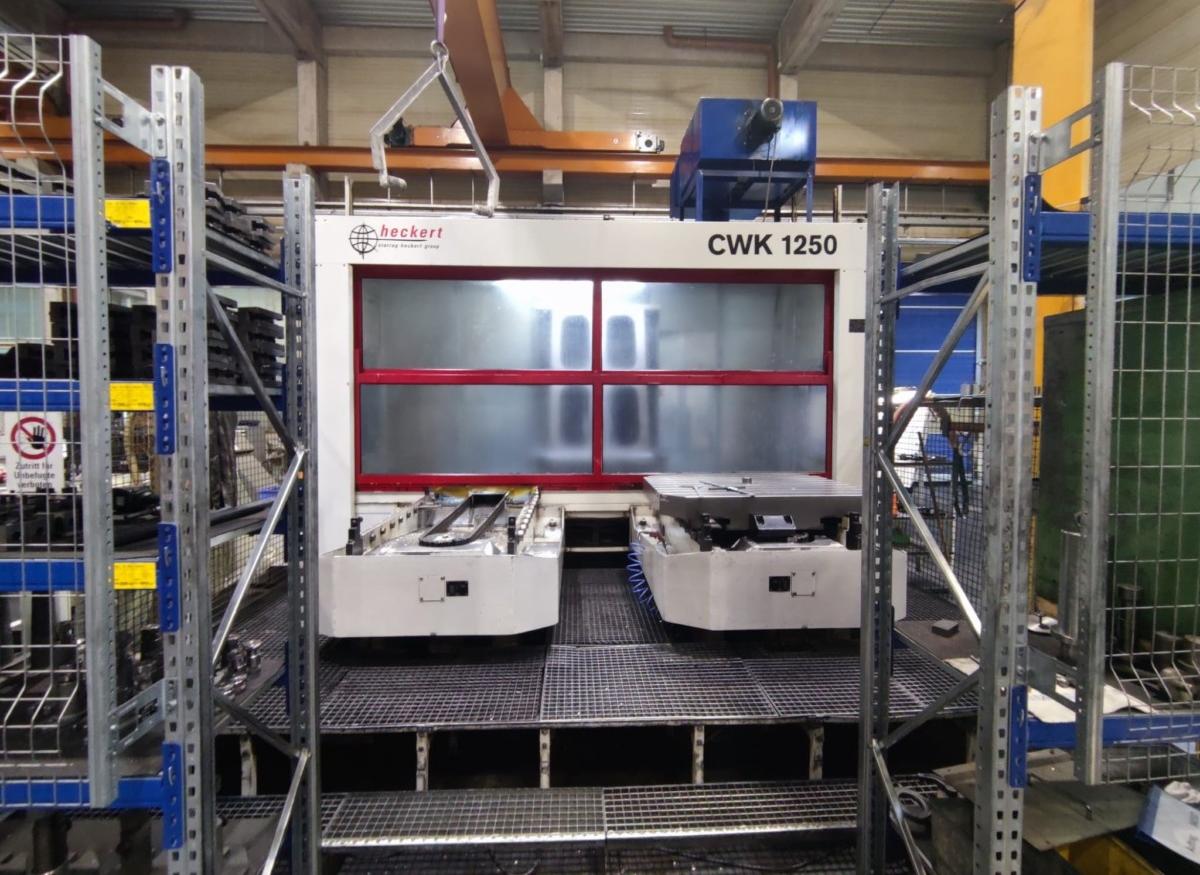

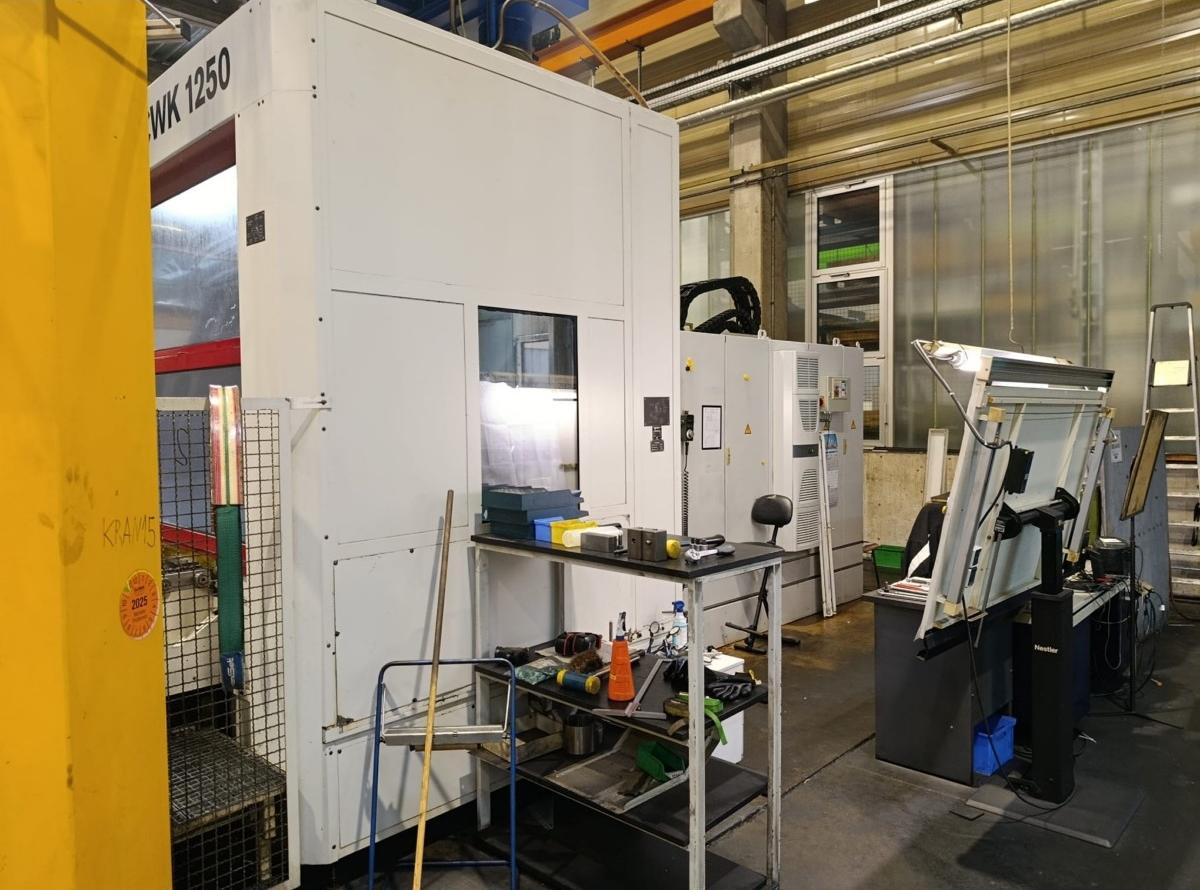

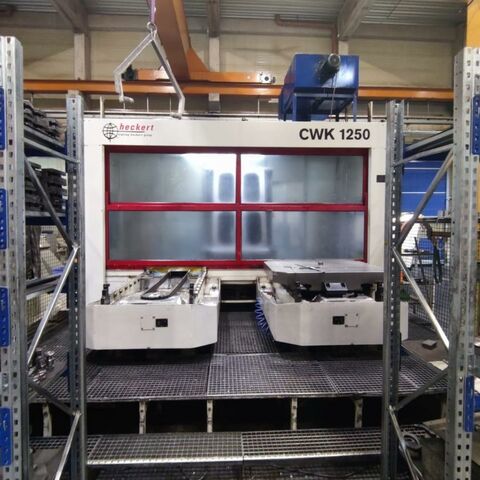

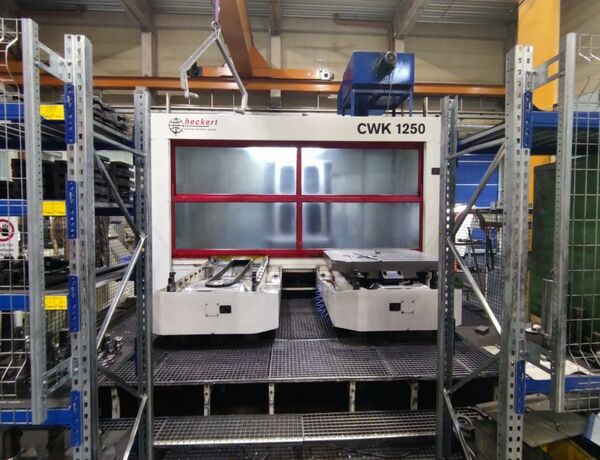

STARRAG HECKERT CWK 1250
Catalog no. 10032
Built in 2002, Control 16 i- M Fanuc,

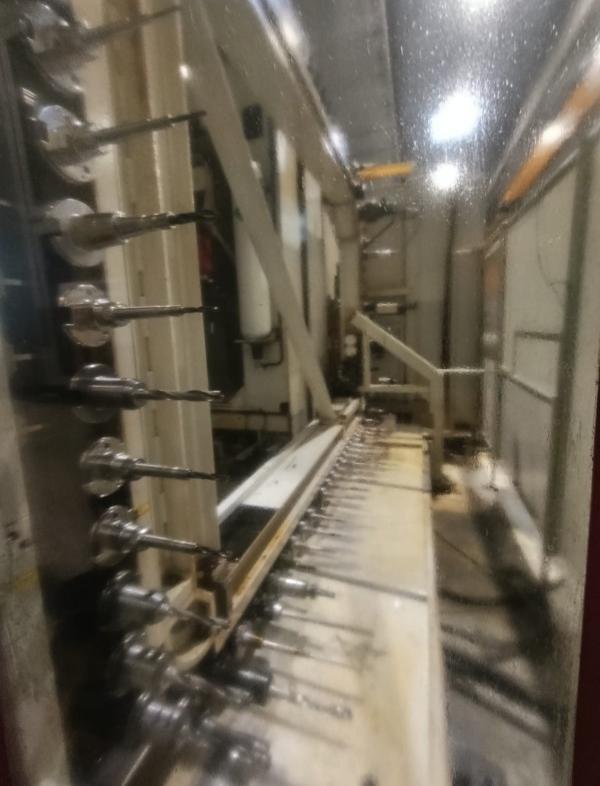

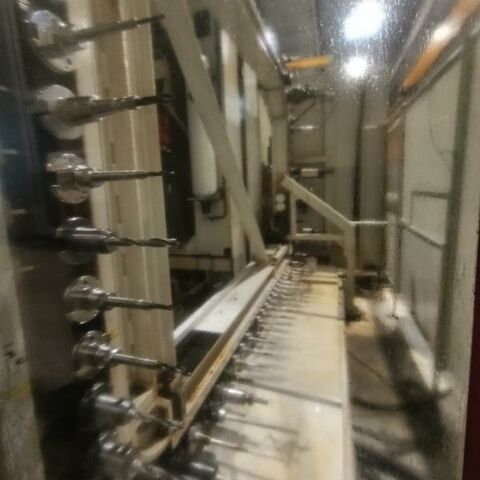

80 tool position ATC. We will supply 300 pieces SK50 holders along with the

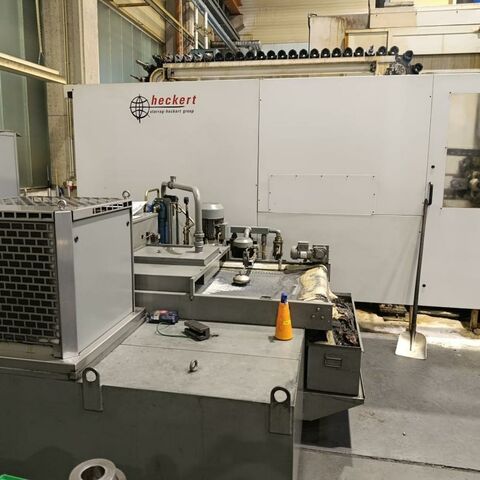

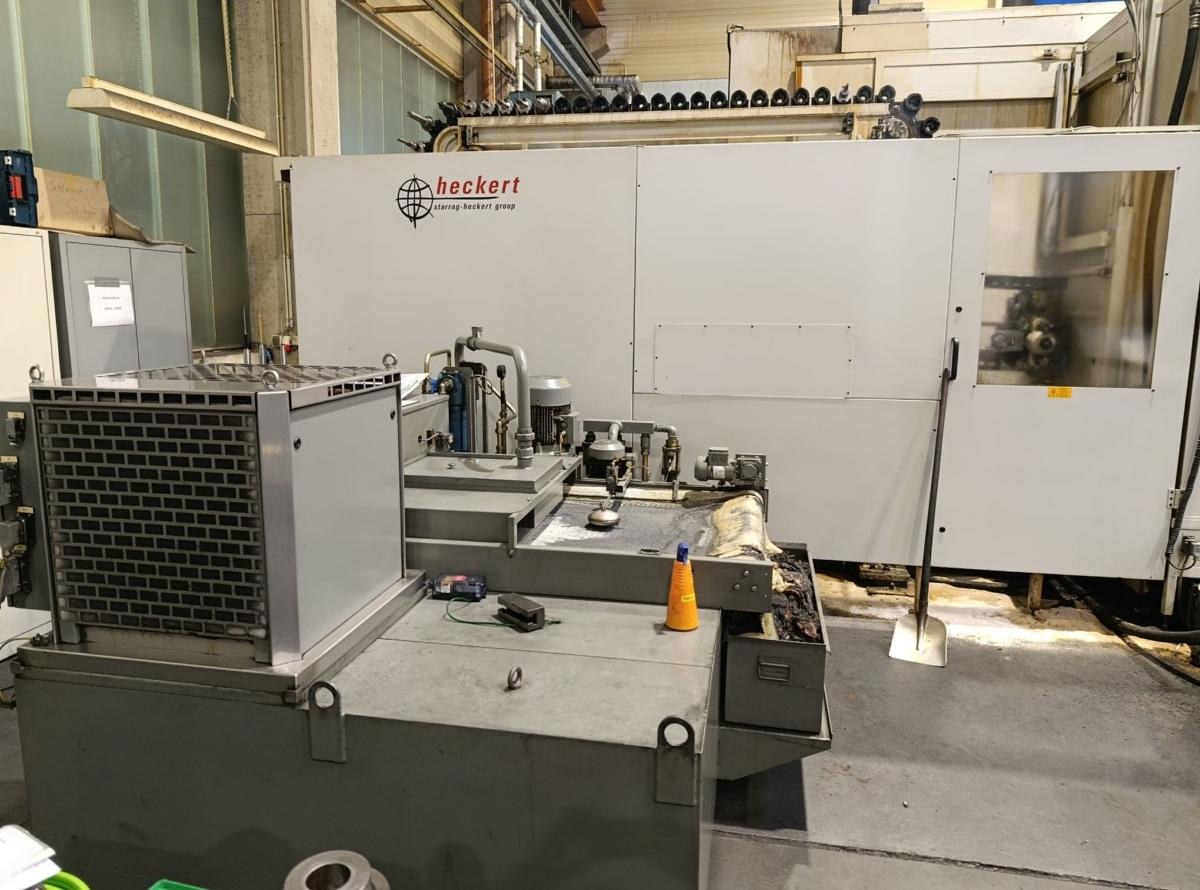

machine. Measuring tracer Renishaw, Cooling trough spindle and filtering

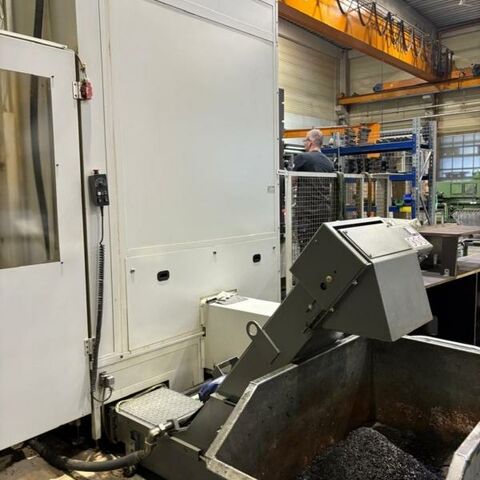

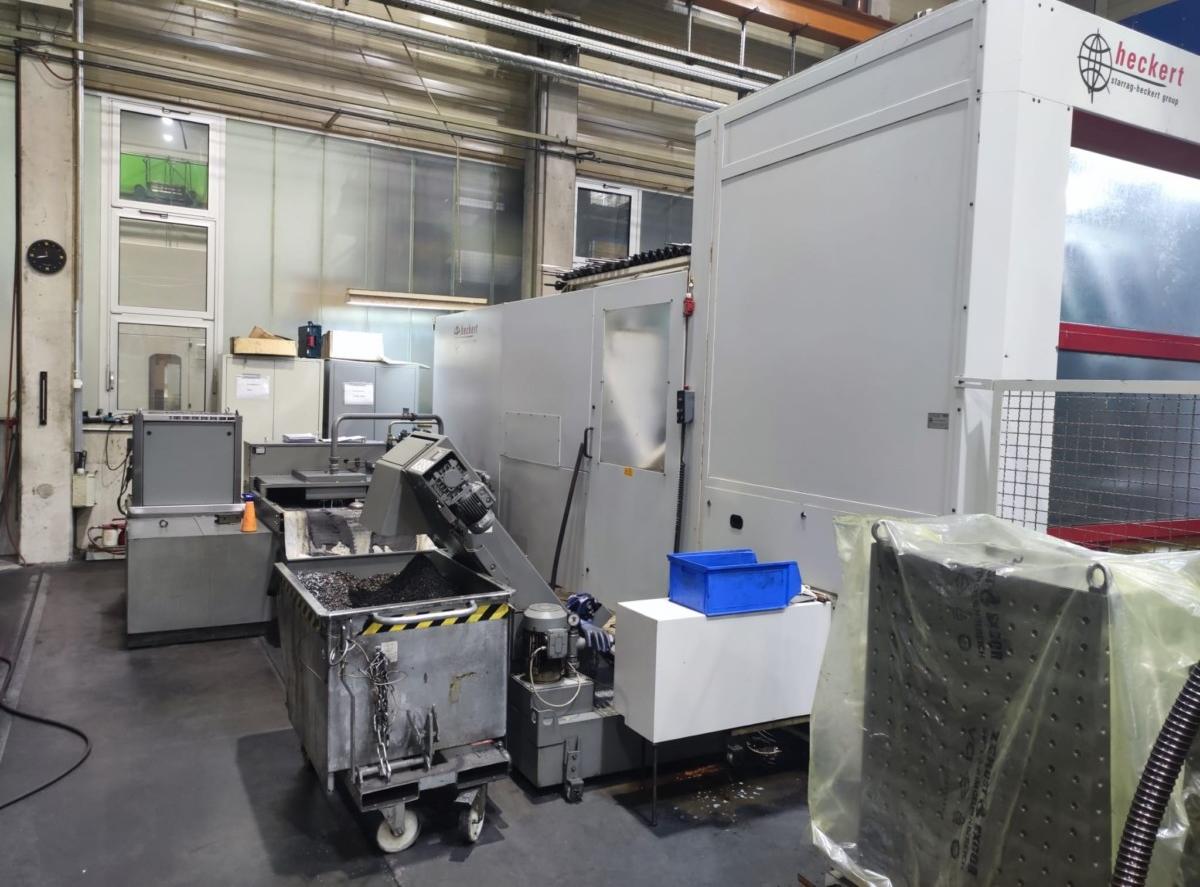

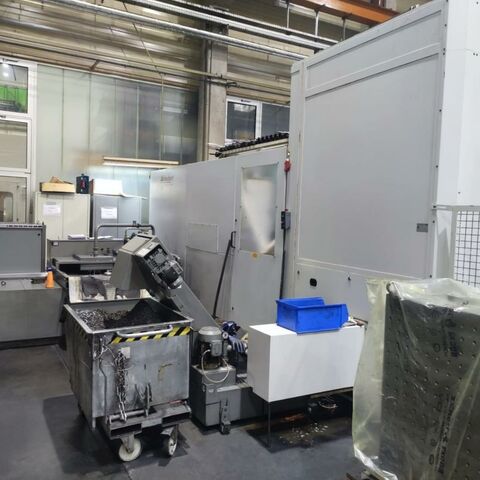

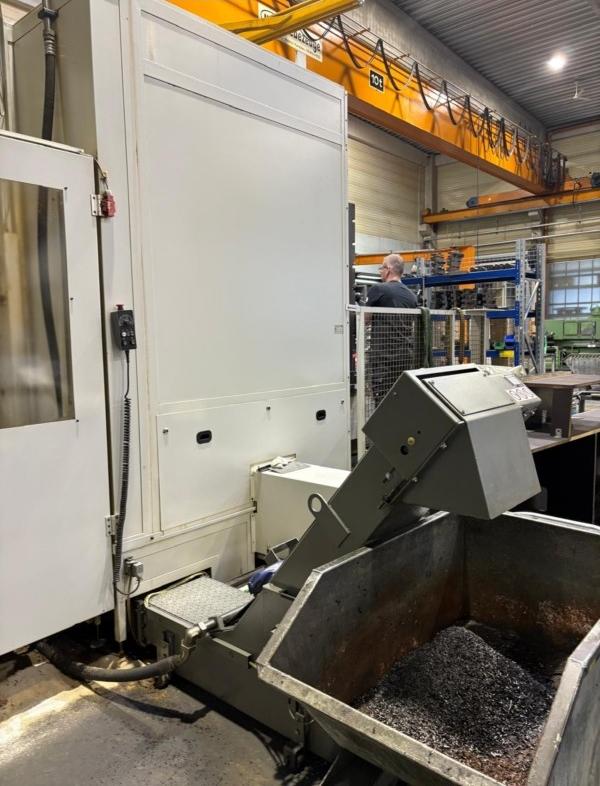

arrangement, 50 bar, Chip conveyor and exhaust ventilation.

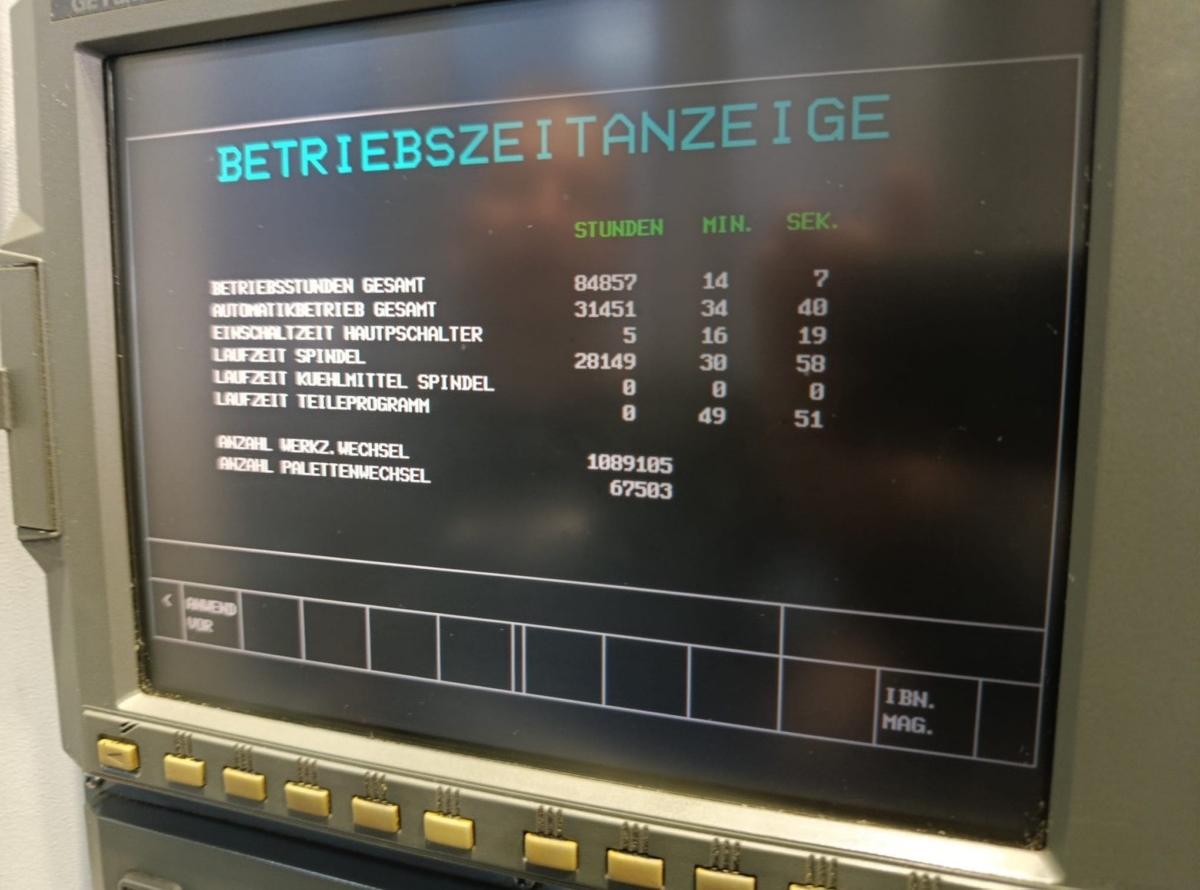

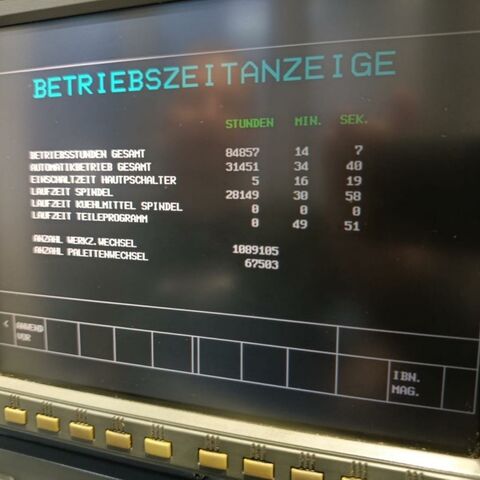

Machine has worked for 28.000 spindle hours.

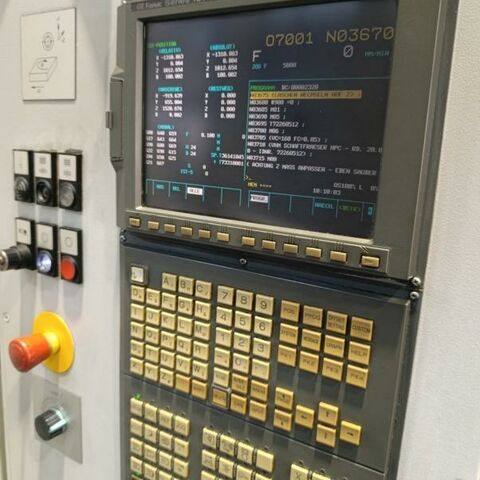

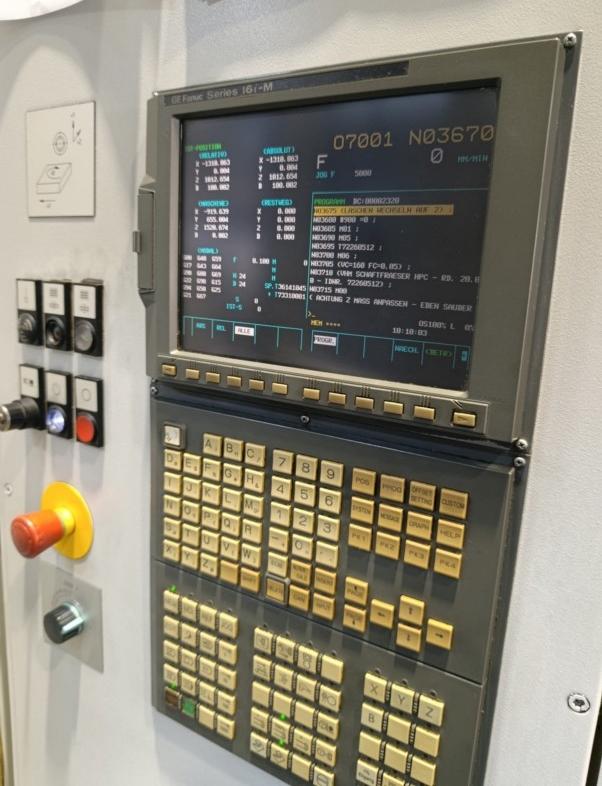

Control: Fanuc 16i-M.
| x-travel |
|---|
| 1850 mm |
| y-travel |
|---|
| 1250 mm |
| z-travel |
|---|
| 1525 mm |
| Control |
|---|
| 16 i- M Fanuc |

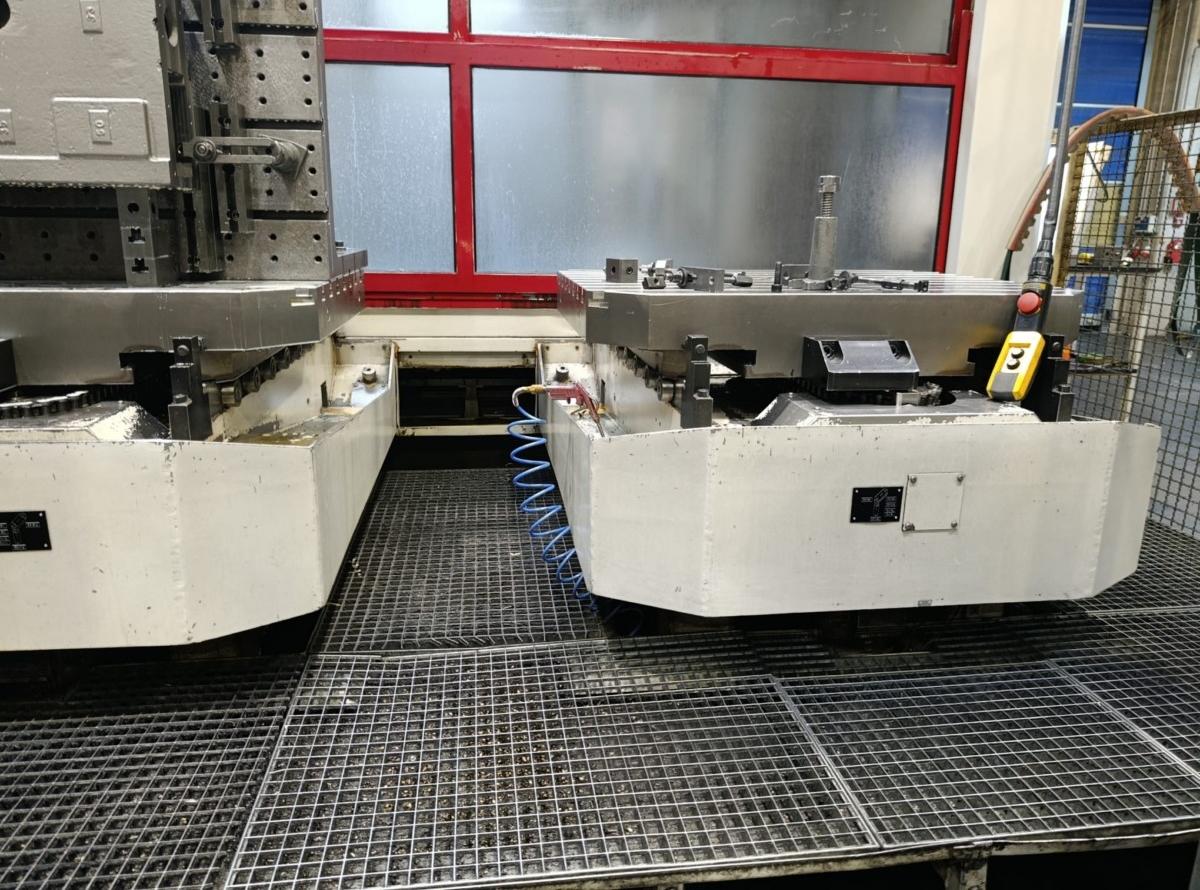

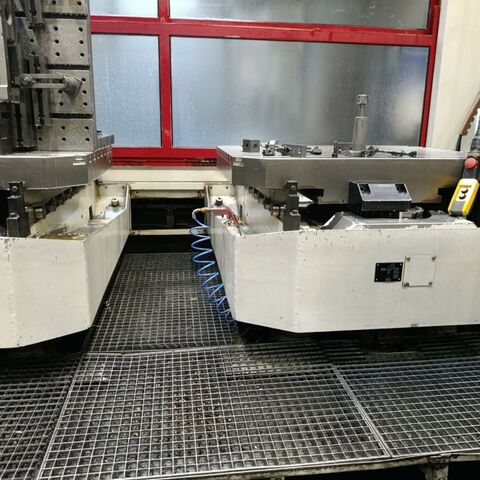

| type of pallet-changer |
|---|
| 2-fach |
| size of pallet |
|---|
| 1250 x 1000 mm |
| tool change unit |
|---|
| 80 fach |
| tool taper |
|---|
| ISO 50 |
| 0 |
|---|
| 30 kW |
| max. workpiece weight |
|---|
| 5000 kg |
| turning speeds |
|---|
| 20- 6000 U/min |
| rotary table |
|---|
| 360 x 1 ° |
| feeds - automatic programming |
|---|
| 0- 15000 mm/min |
| rapid traverse |
|---|
| 30 m/min |
| total power requirement |
|---|
| 60 KW |
| weight of the machine ca. |
|---|
| 27 t |
| dimensions of the machine ca. |
|---|
| 8,3 x 7,3 x 4 m |
Additional Information
Country of origin Germany,
Delivery as per agreement, Quotation ex site, free on truck,
Price on request
