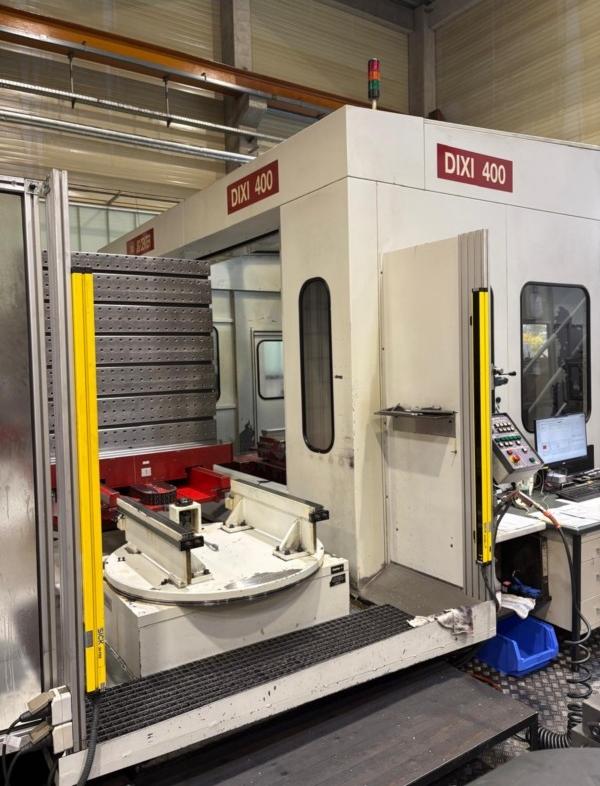

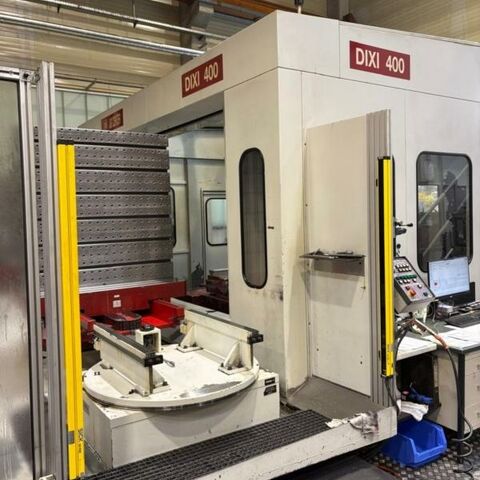

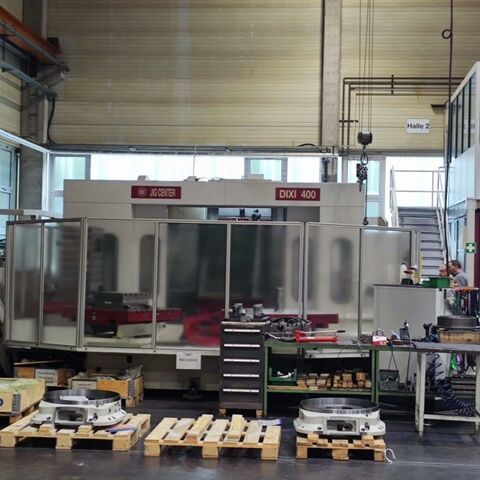

Machining Center - Horizontal
DIXI (CH) 400 TPA
Catalog no. 10033

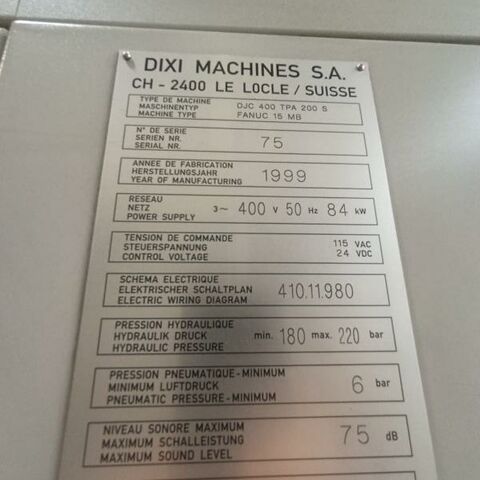

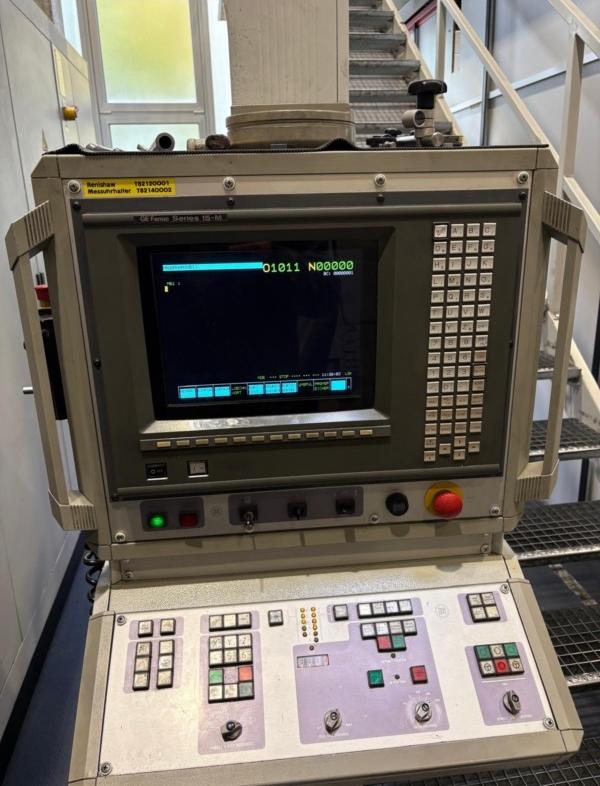

Built in 1999, Control 15i-M Fanuc,
CNC- JIG BORER !

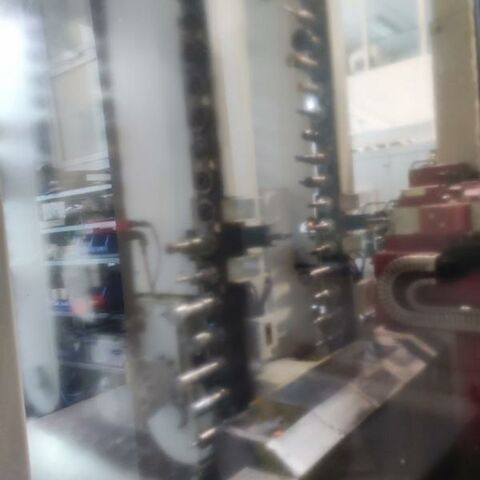

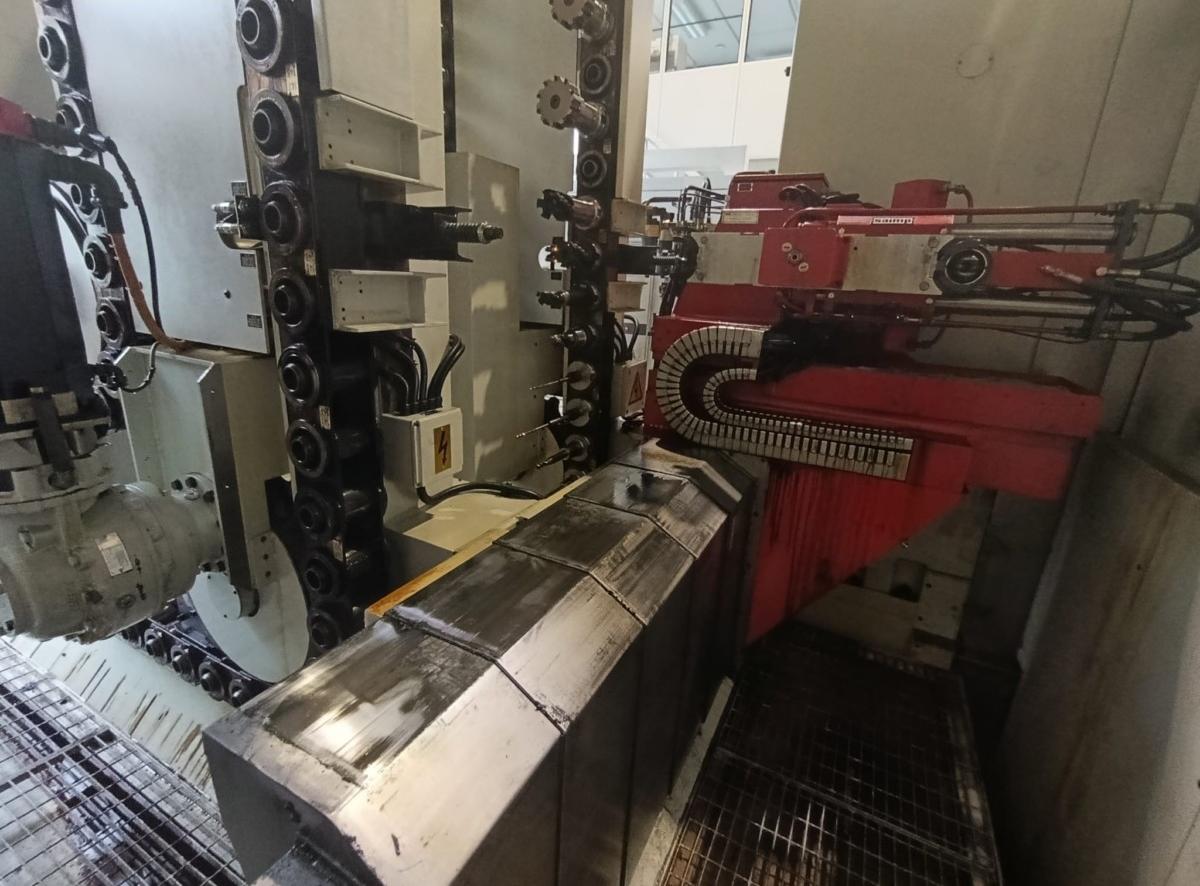

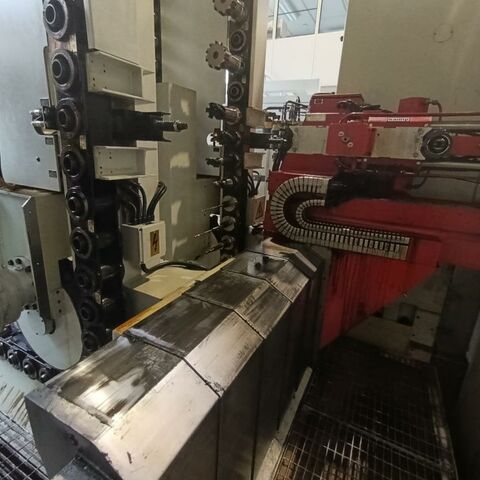

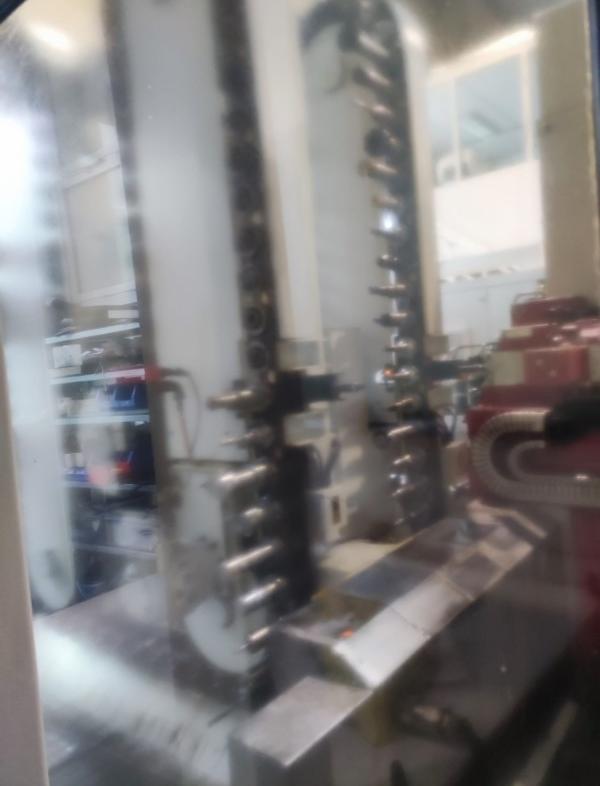

200 tool position ATC. We will supply 90 holders along with the machine.
Measuring tracer Renishaw, Cooling trough spindle and filtering arrangement, 12
bar, Chip conveyor and exhaust ventilation.

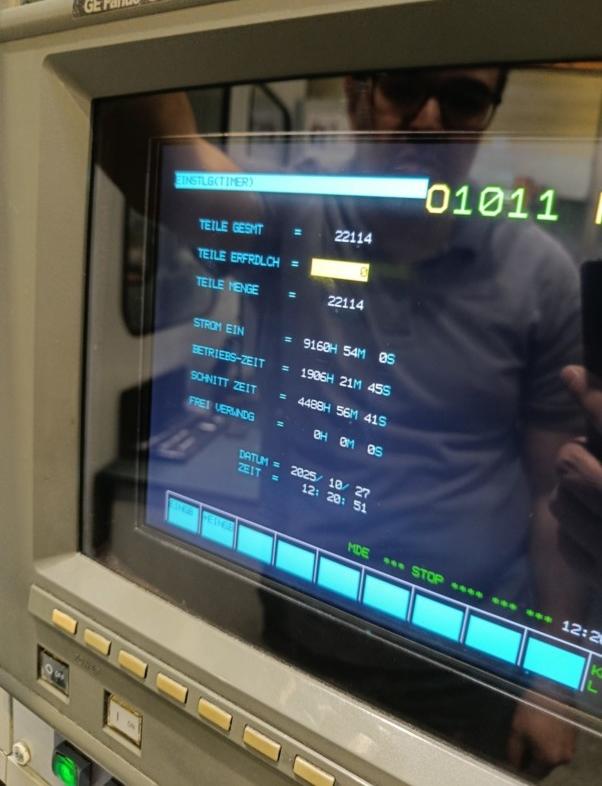

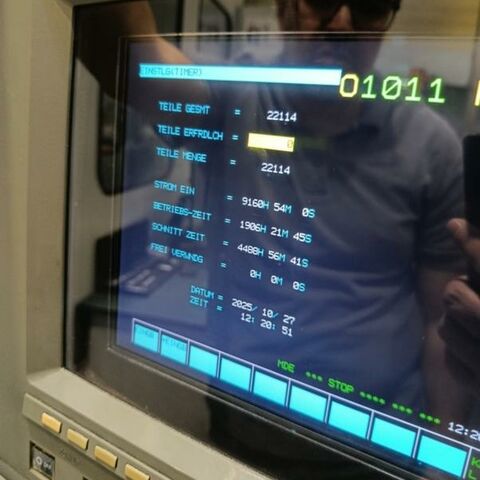

Machine was complete refurbished in 2017 and has only worked 4800 spindle hours

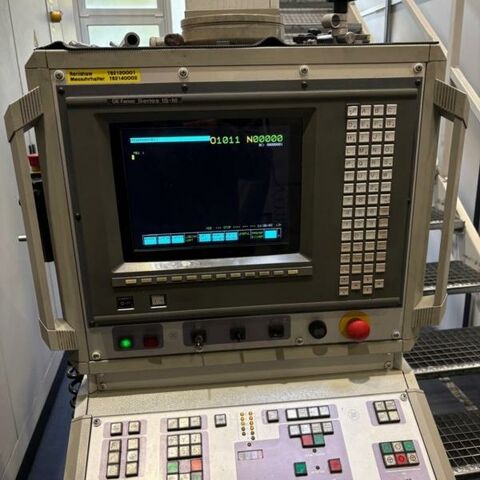

since that date. Control: Fanuc 15 i-M.
| x-travel |
|---|
| 1400 mm |
| y-travel |
|---|
| 1200 mm |
| z-travel |
|---|
| 1000 mm |
| Control |
|---|
| 15i-M Fanuc |

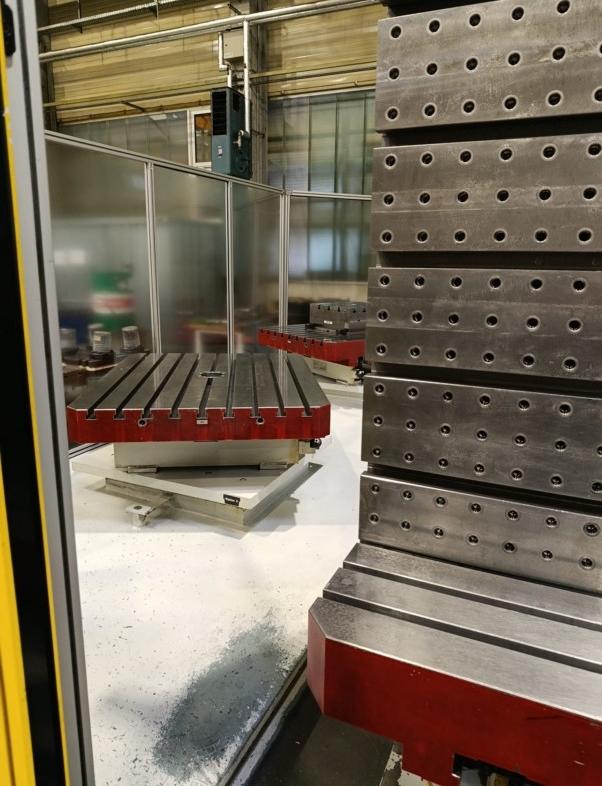

| type of pallet-changer |
|---|
| 4- fach |

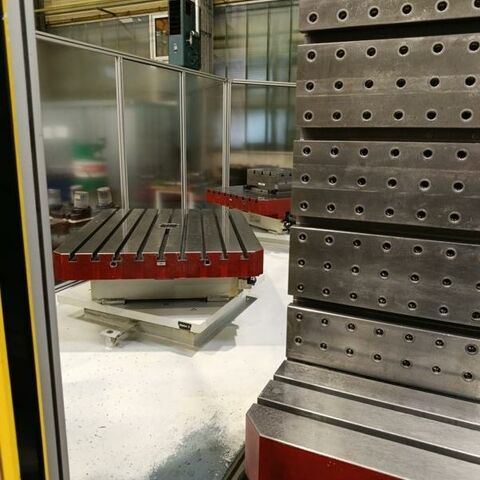

| size of pallet |
|---|
| 1250 x 1000 mm |
| tool change unit |
|---|
| 200 fach |
| tool taper |
|---|
| HSK 100 |
| 0 |
|---|
| 22 kW |
| max. workpiece weight |
|---|
| 2000 kg |
| turning speeds |
|---|
| 8- 3000 U/min |
| rotary table |
|---|
| 360 x 1 ° |
| feeds - automatic programming |
|---|
| 0- 10000 mm/min |
| rapid traverse |
|---|
| 10 m/min |
| total power requirement |
|---|
| 84 KW |
| weight of the machine ca. |
|---|
| 23 t |
| dimensions of the machine ca. |
|---|
| 11 x 8 x 4 m |
Additional Information
Country of origin Switzerland,
Delivery as per agreement, Quotation ex site, free on truck,
Price on request
