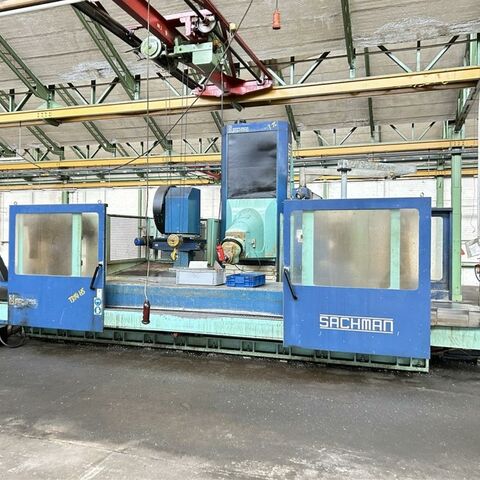

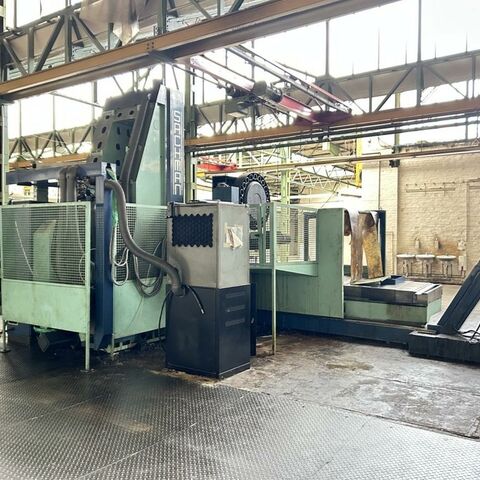

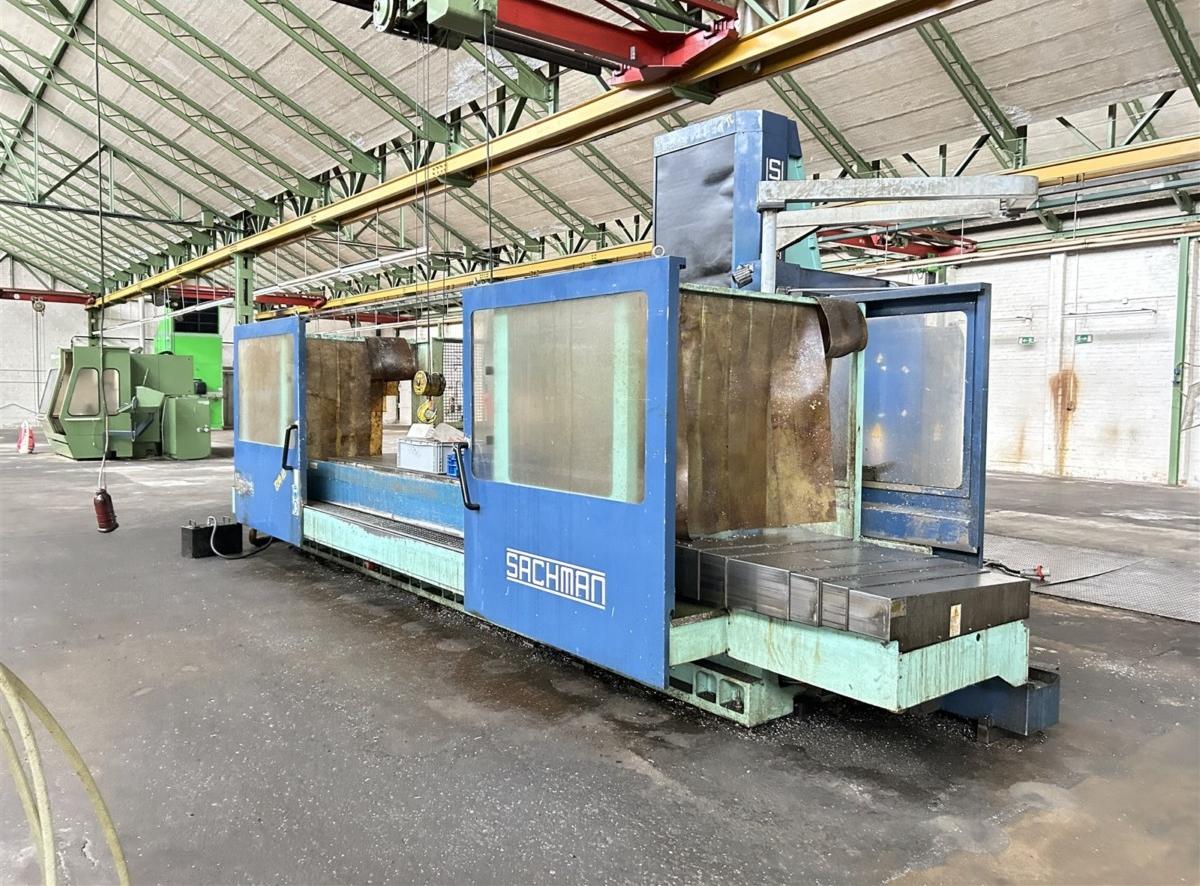

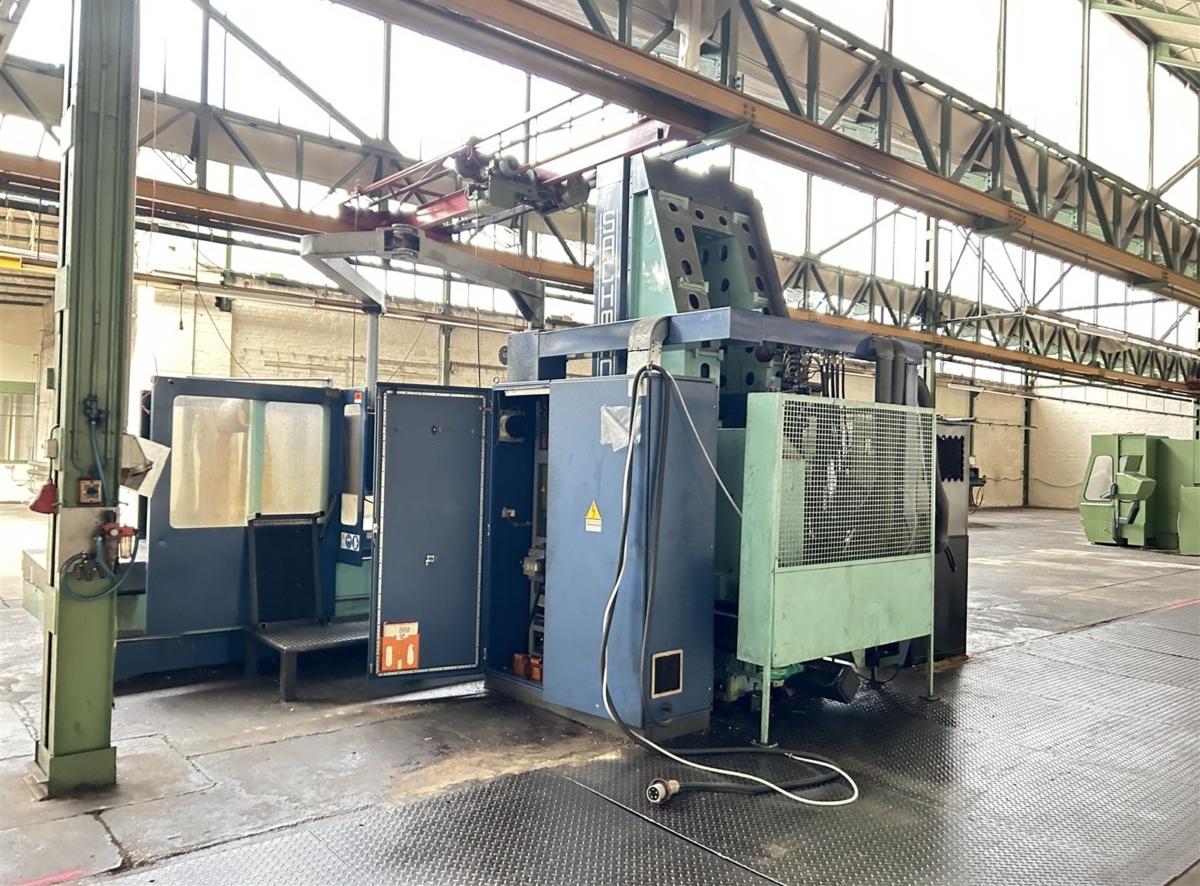

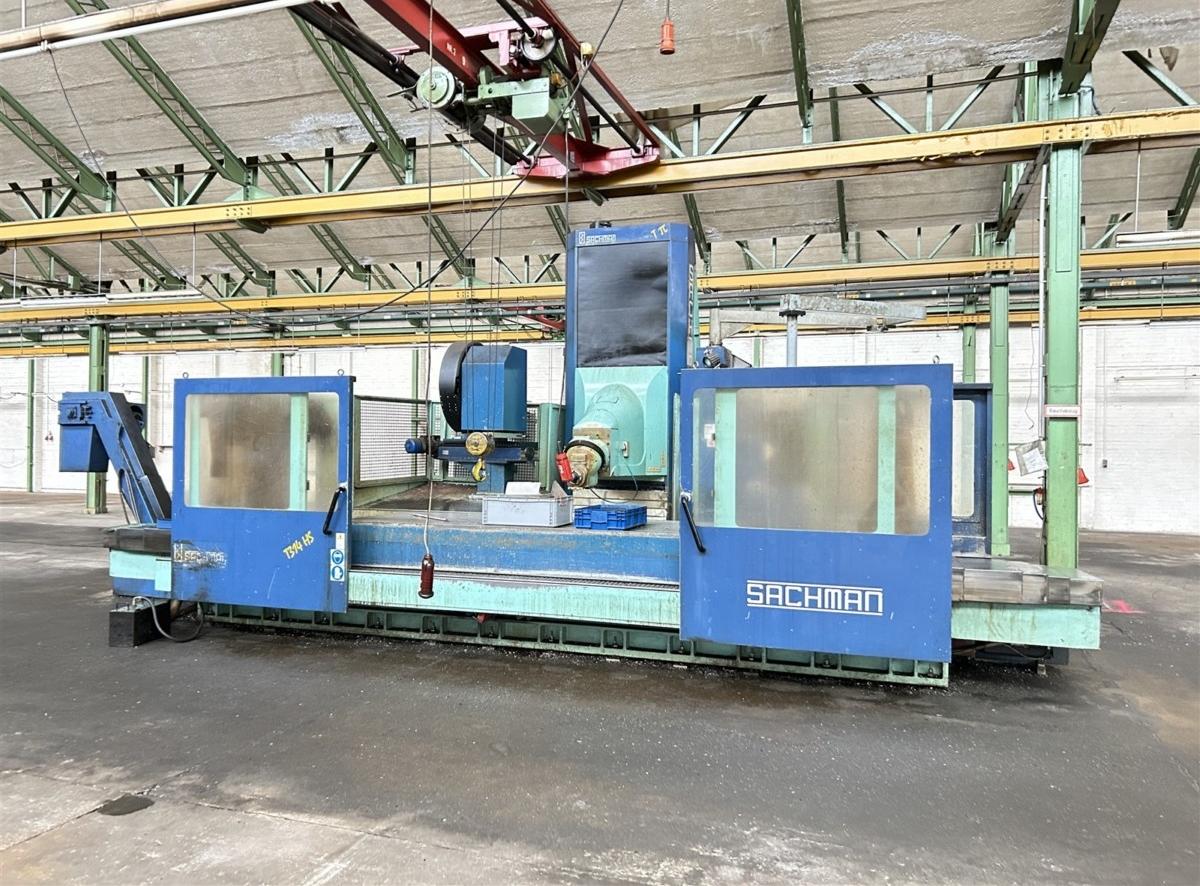

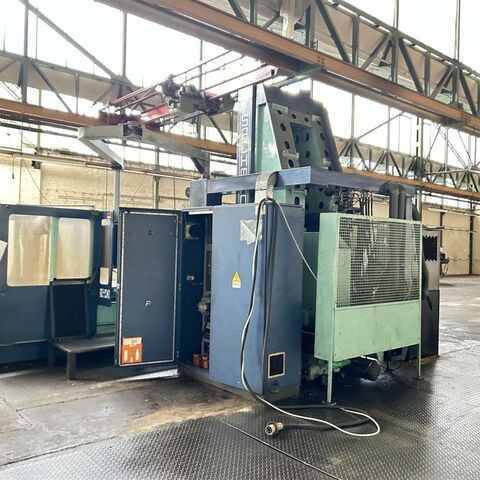

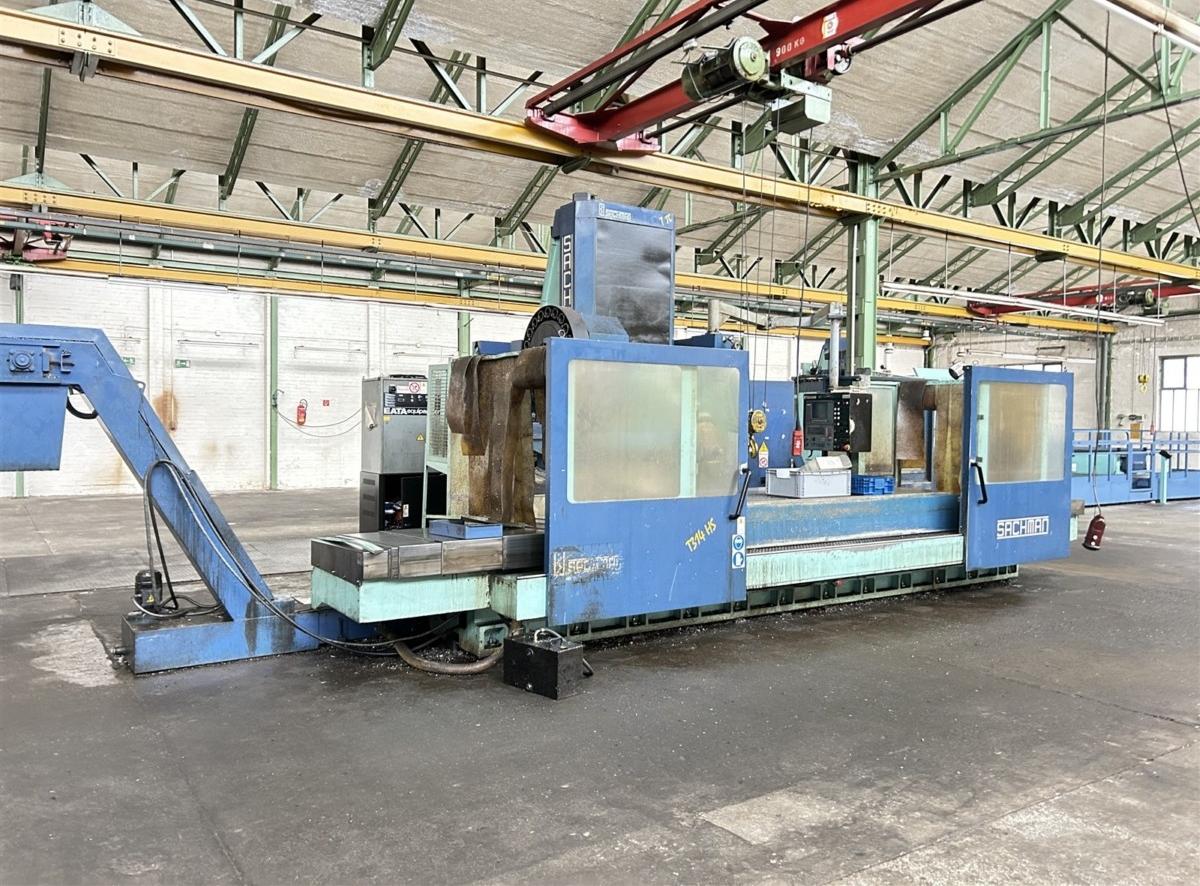

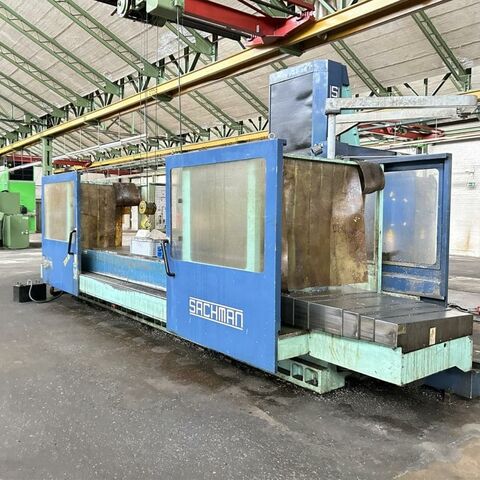

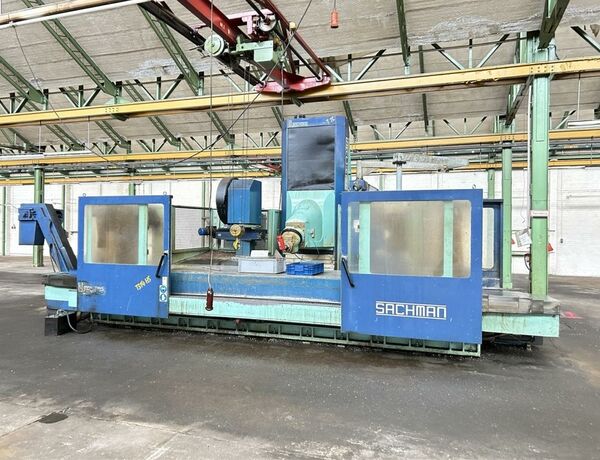

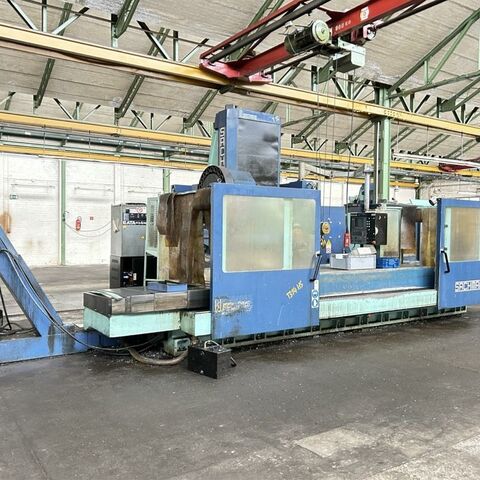

Bed Type Milling Machine - Universal

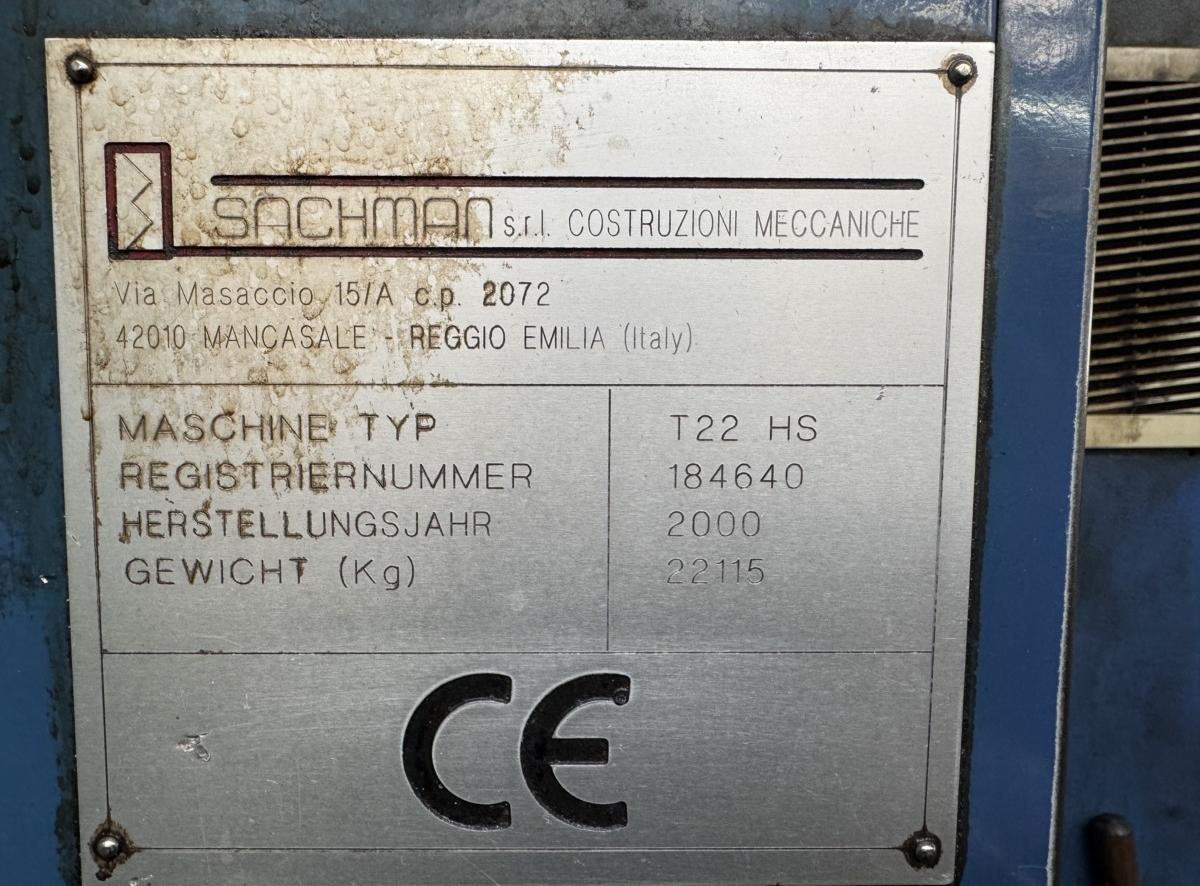

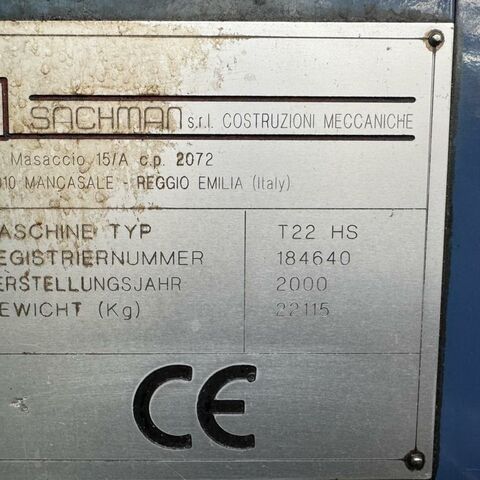

SACHMAN T 314 HS / T22 HS
Catalog no. 11376
Built in 2000, Control TNC 430 B,

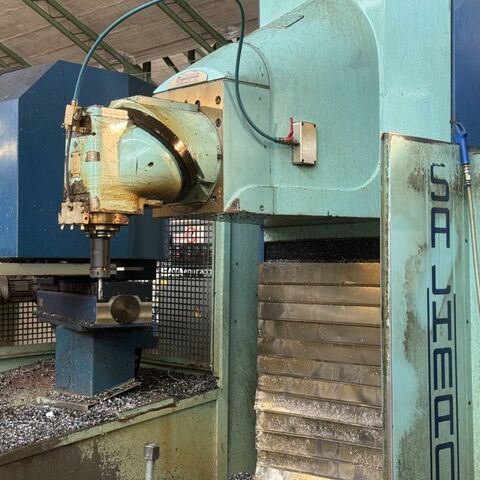

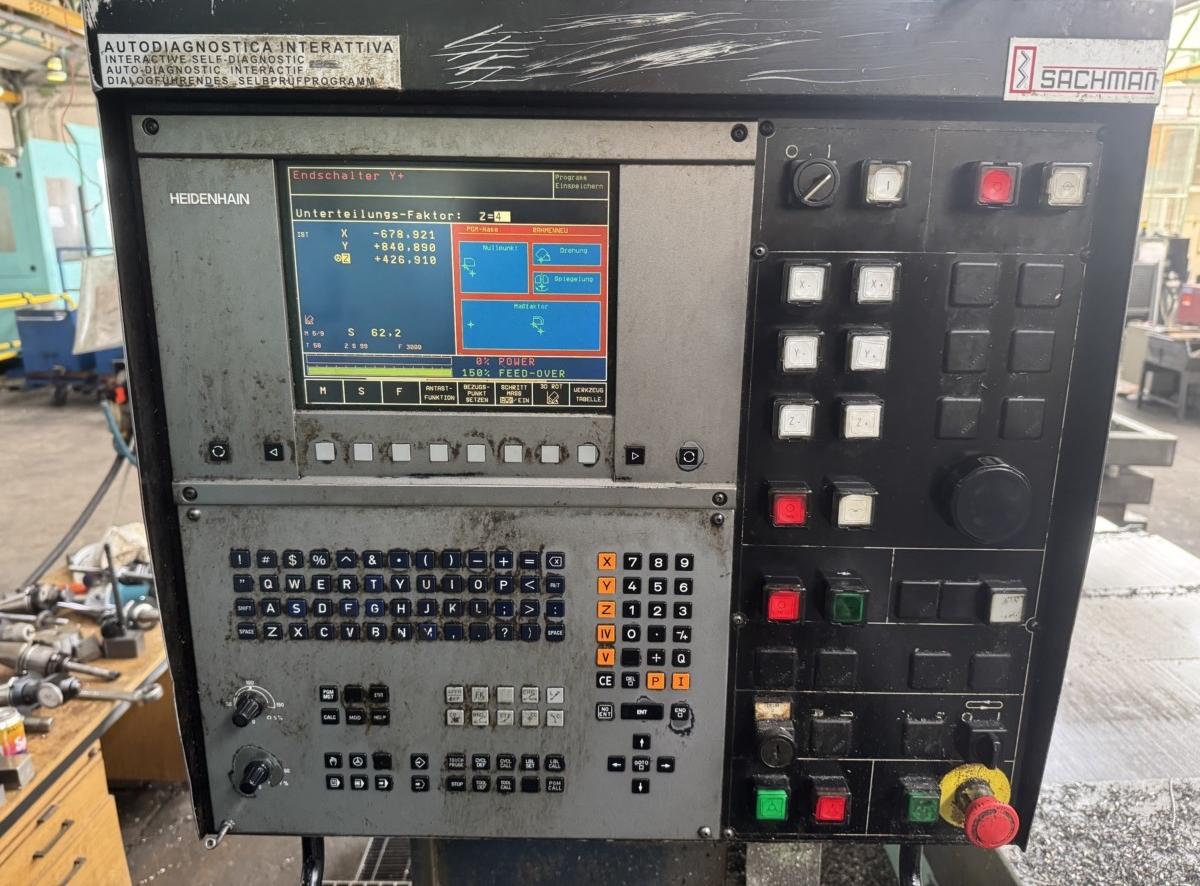

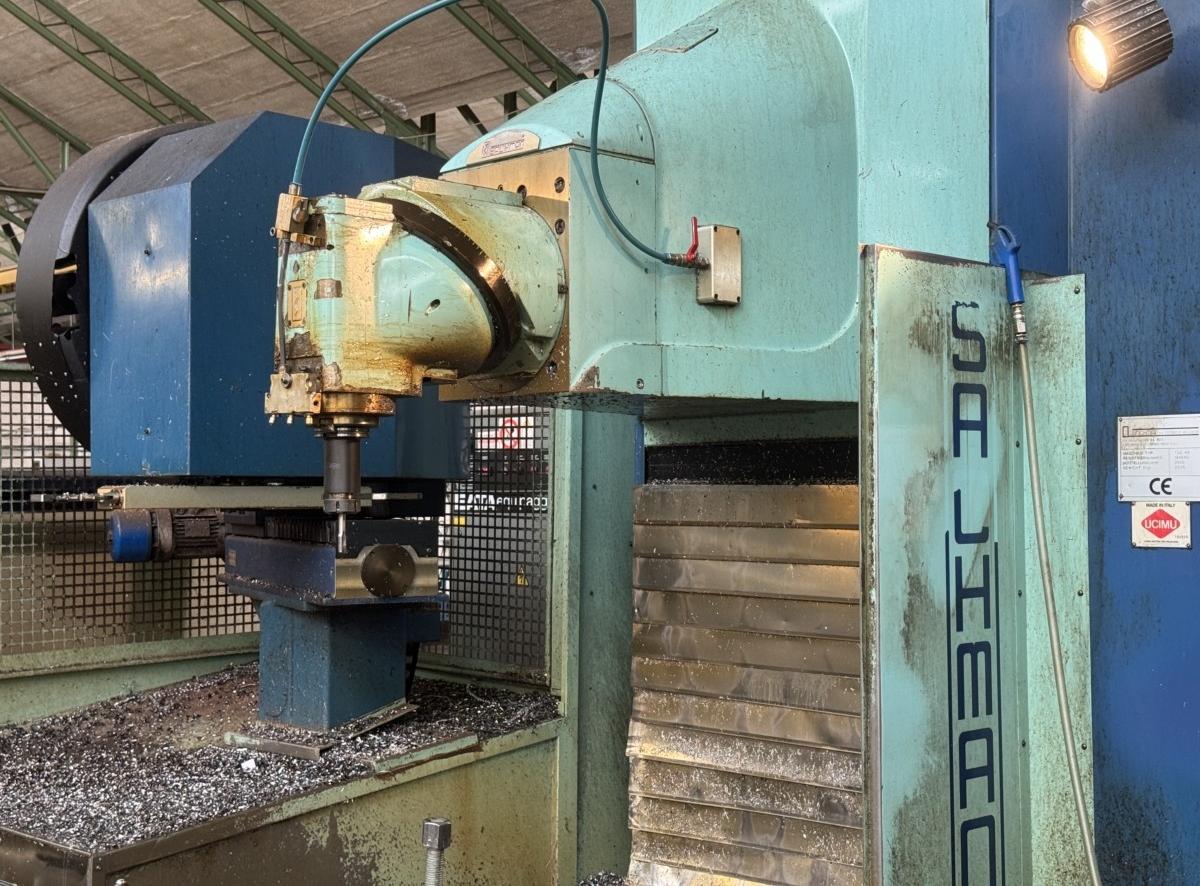

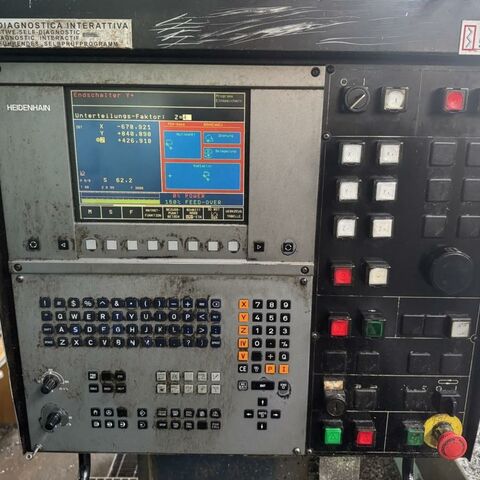

control: Heidenhain TNC 430 B digital. Universal milling head is automatically

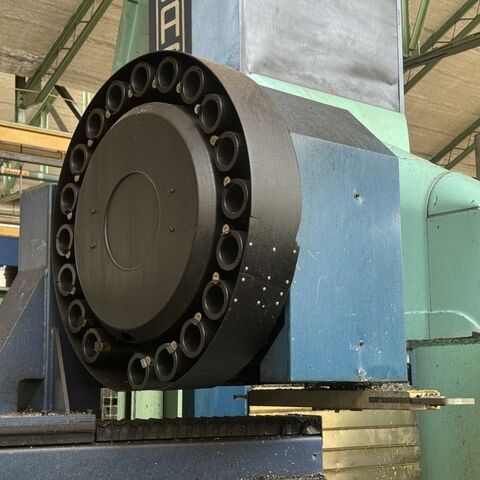

swivable and turnable in 1,5° steps. Machine has a 20 position ATC, a chip
conveyor, an adaptable high speed spindle (30.000 rpm) and a mist cooling

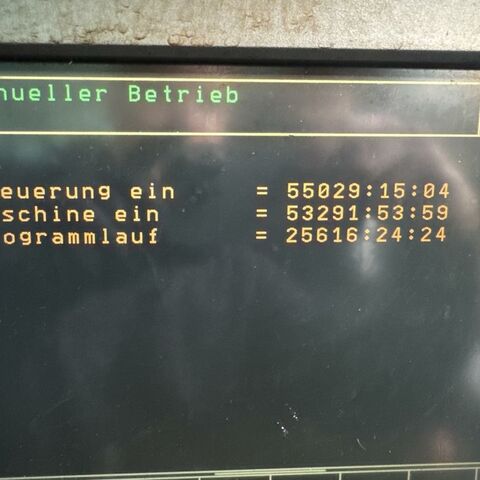

arrangement. Machine in program for 25.616 hours.
| x-travel |
|---|
| 3000 mm |
| y-travel |
|---|
| 1400 mm |
| z-travel |
|---|
| 1500 mm |
| table-size |
|---|
| 3200 x 1100 mm |
| control |
|---|
| TNC 430 B |
| spindle turning speed range |
|---|
| 60 - 4000 U/min |
| spindle taper ISO |
|---|
| 50 |
| feeds |
|---|
| 0 - 20000 mm/min |
| table load |
|---|
| 10 t |
| milling drive |
|---|
| 24 kW |
| Center of spindle to wall or column |
|---|
| 1229 mm |
| total power requirement |
|---|
| 50 kW |
| weight of the machine ca. |
|---|
| 22 t |
| dimensions of the machine ca. |
|---|
| 6,5 x 3 x 3 m |
Additional Information
Country of origin Italy, Current location ex site,
Delivery as per agreement, Quotation ex site, free on truck,
Price on request
