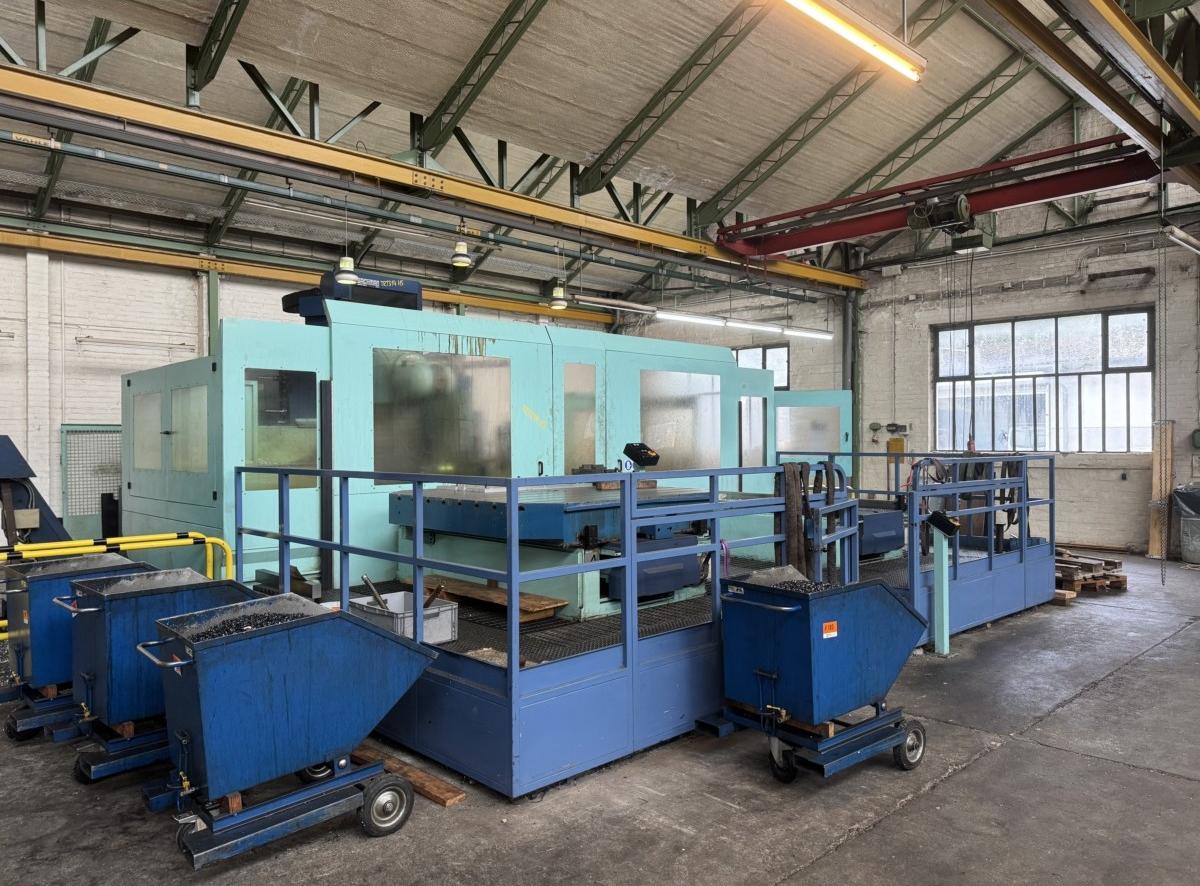

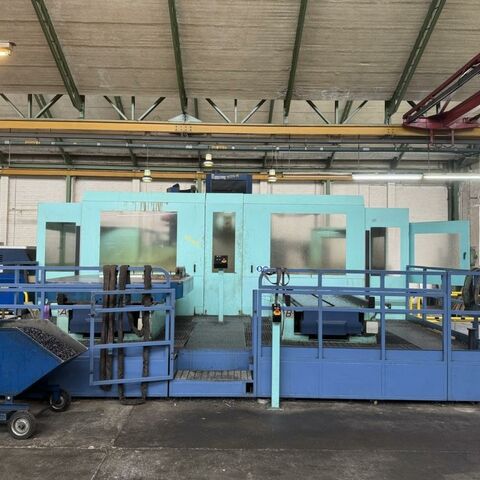

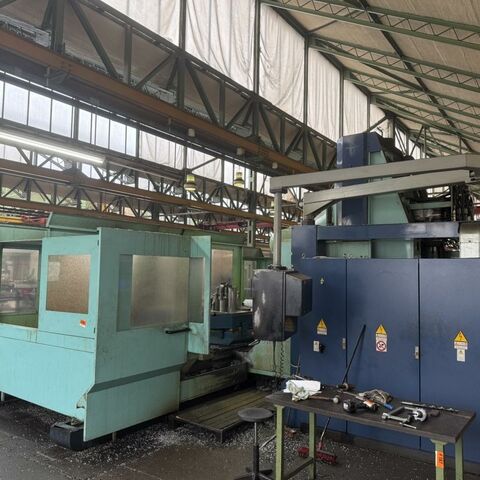

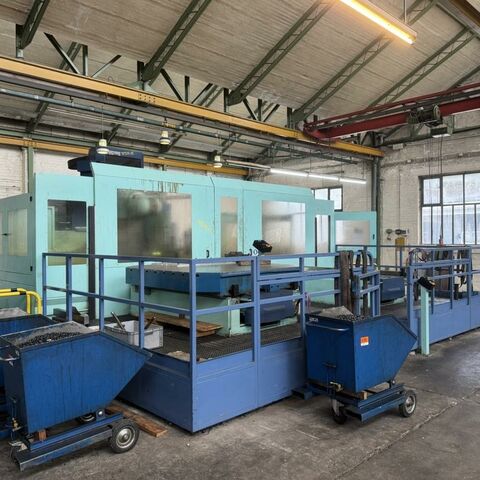

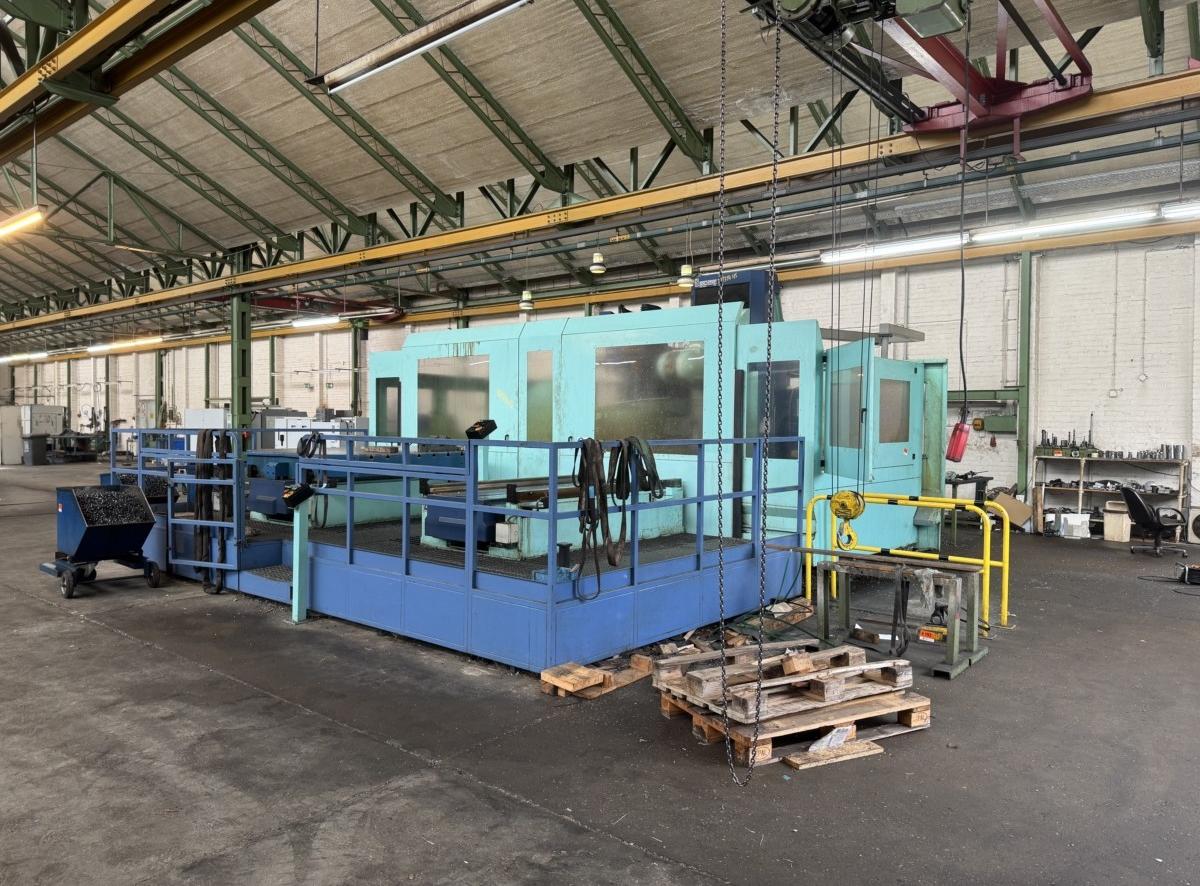

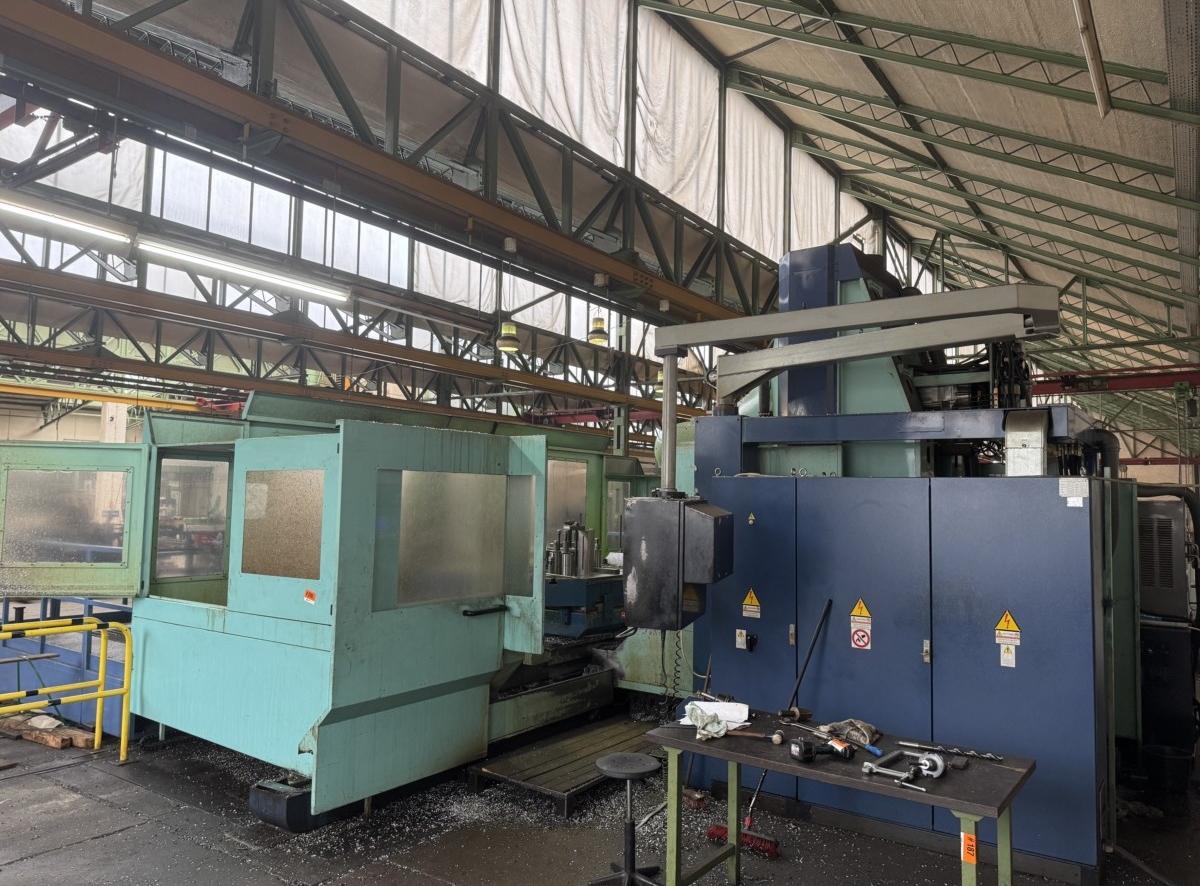

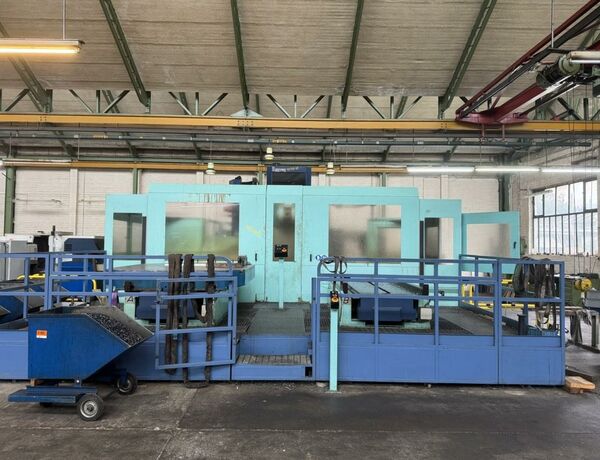

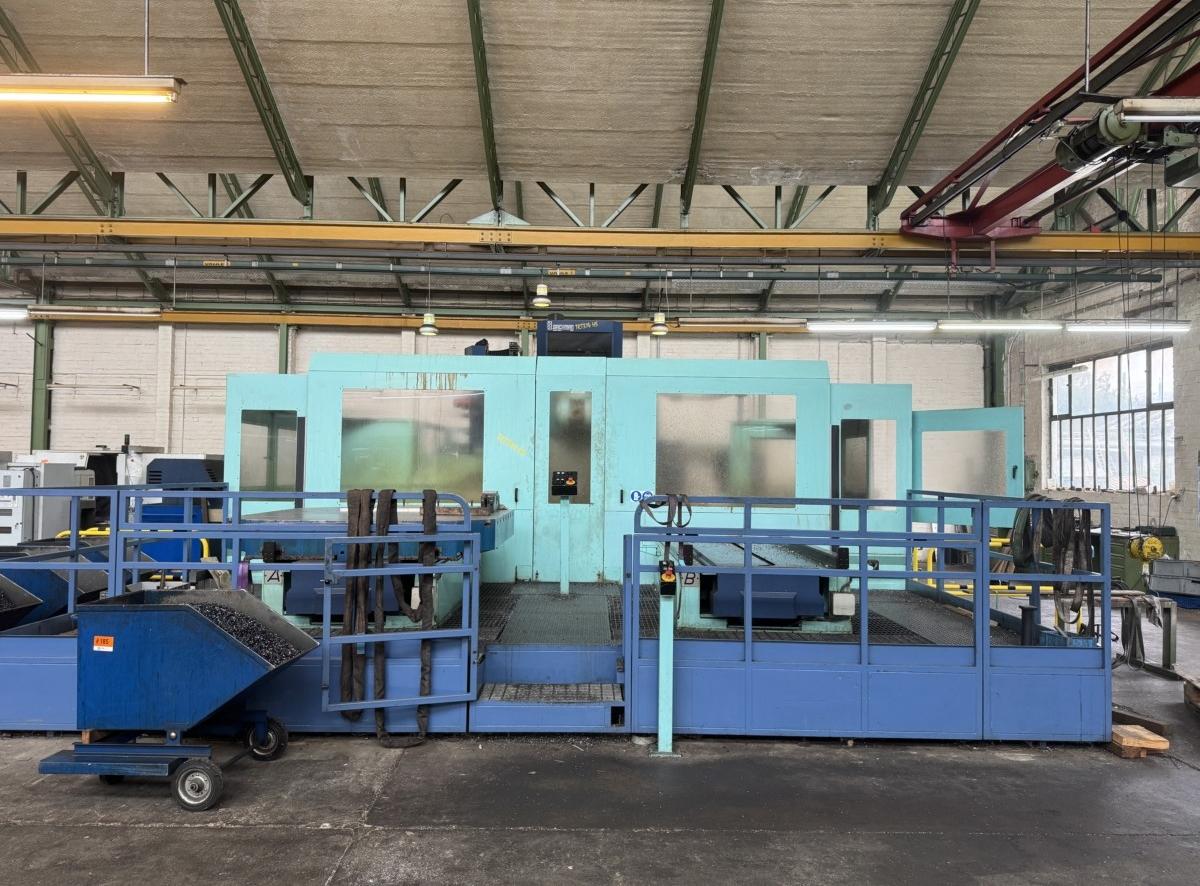

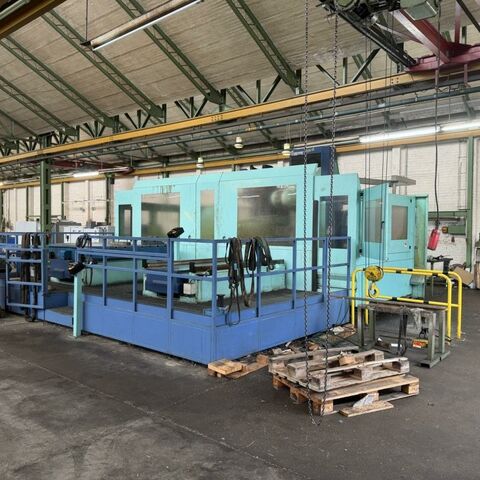

Bed Type Milling Machine - Universal

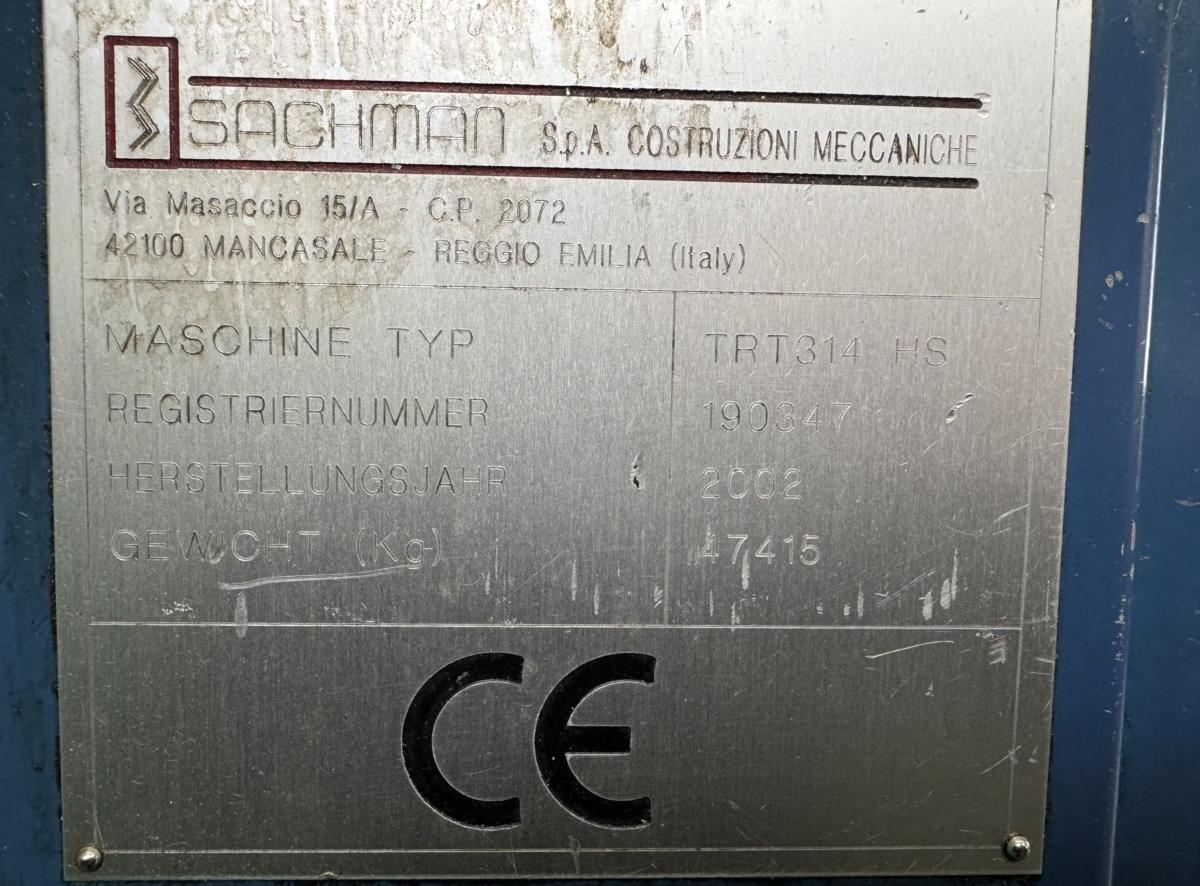

SACHMAN TRT 314 HS
Catalog no. 11377

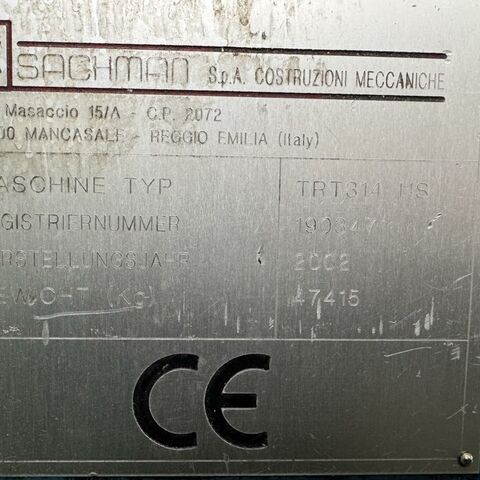

Built in 2002, Control TNC 430 B,

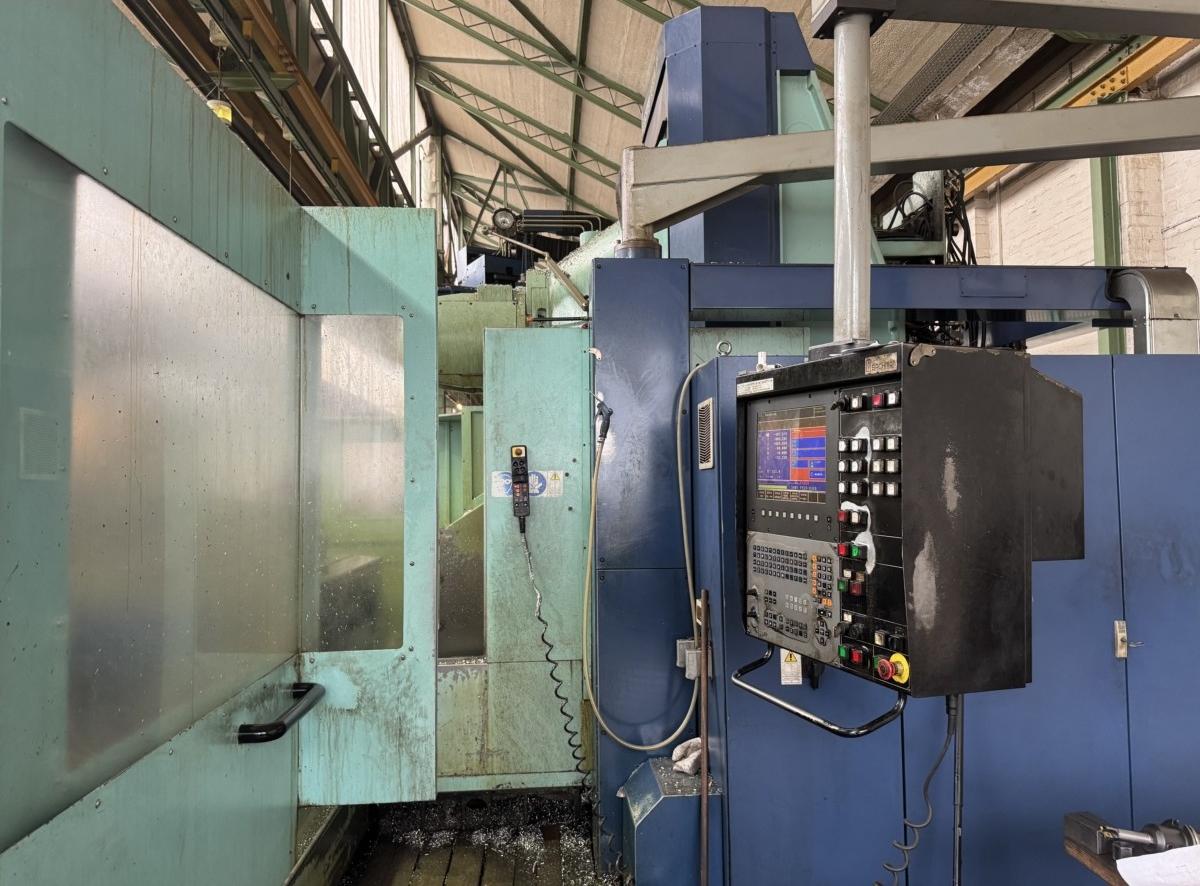

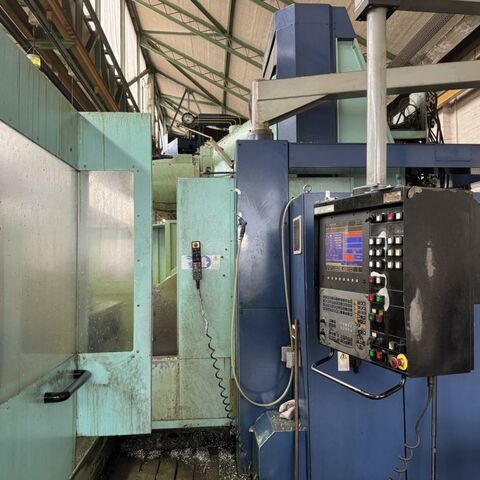

control: Heidenhain TNC 430 B digital. Machine has 6 axes controled, X/Y/Z, C-

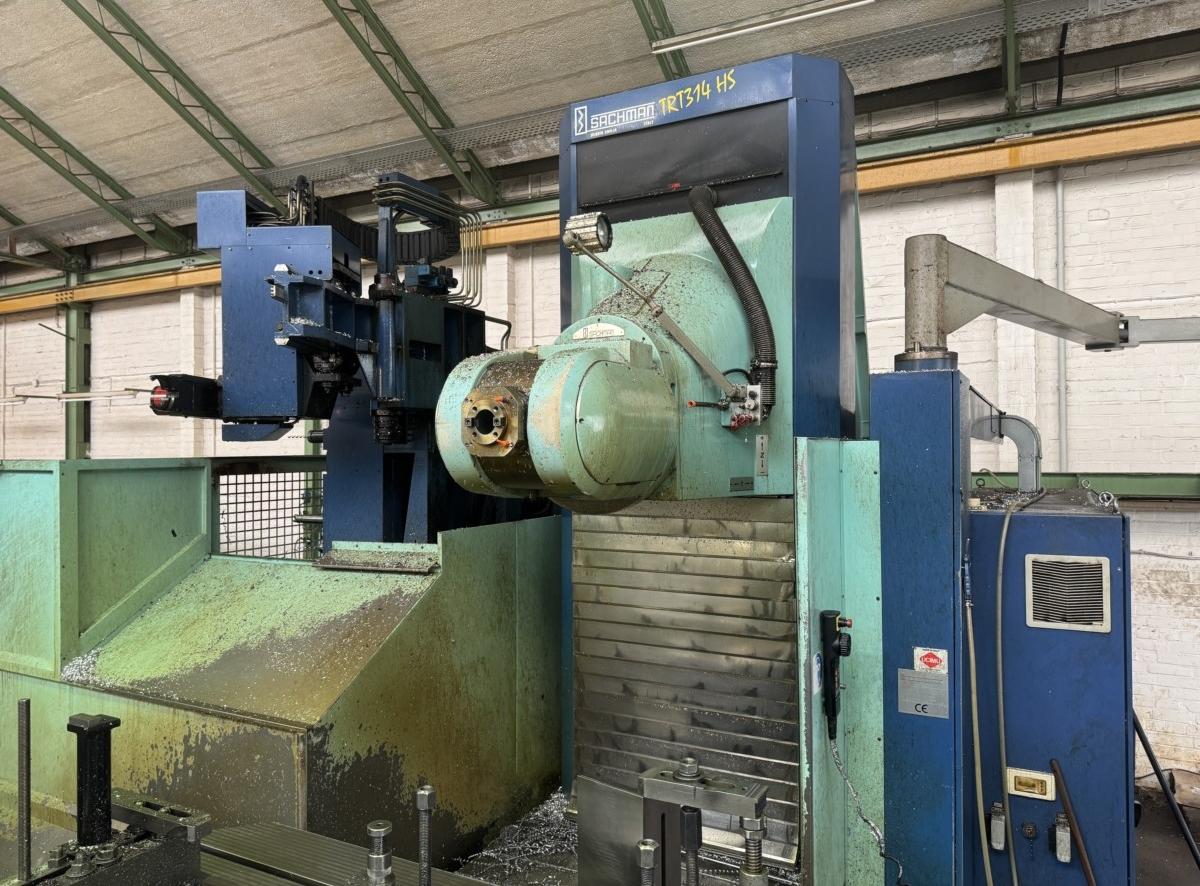

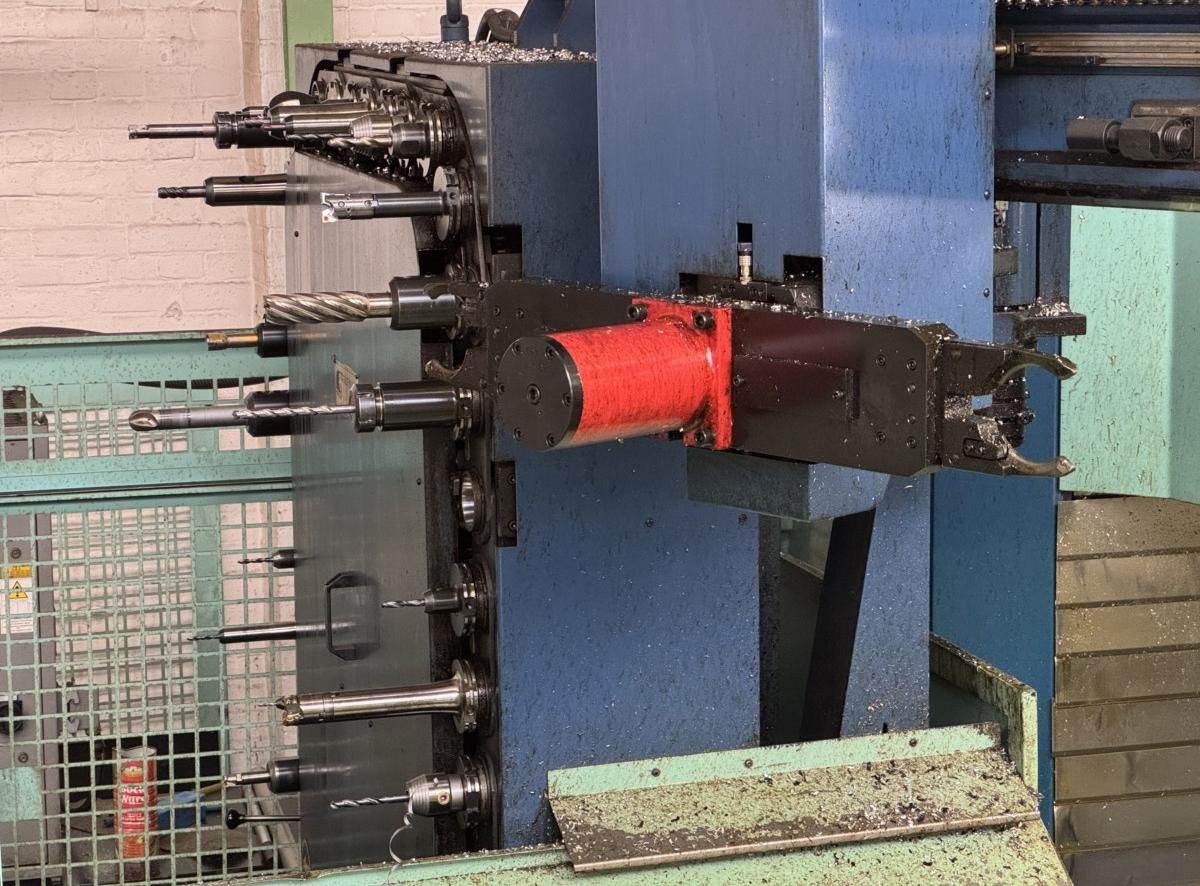

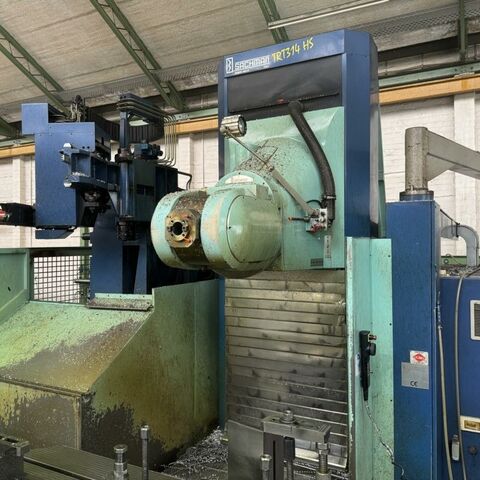

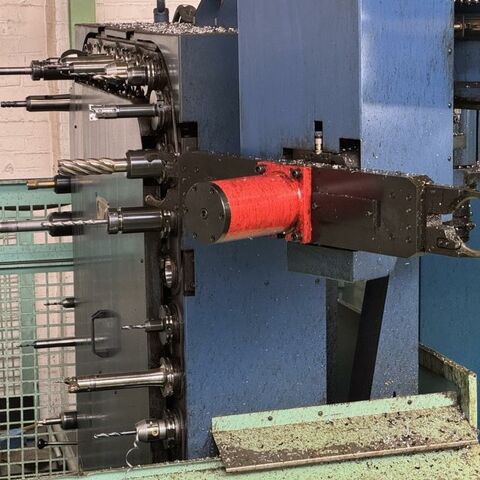

axe table rotation and A/B axes for universal head. Machine has a 40 position
ATC, cooling through spindle, a chip conveyor, an adaptable high speed spindle
(30.000 rpm) and two pallets in the pallet changer. Machine in program 22.347
hours.
| x-travel |
|---|
| 3000 mm |
| y-travel |
|---|
| 1600 mm |
| z-travel |
|---|
| 1500 mm |

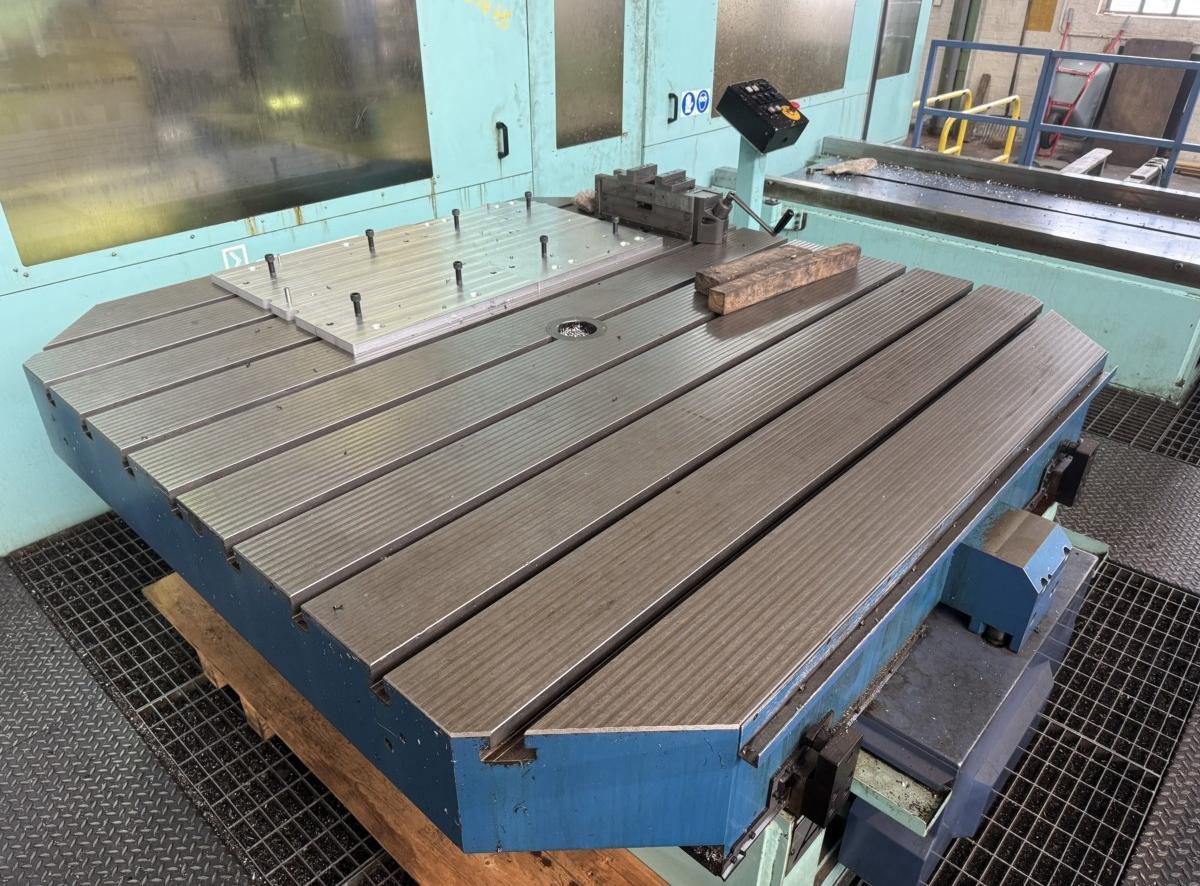

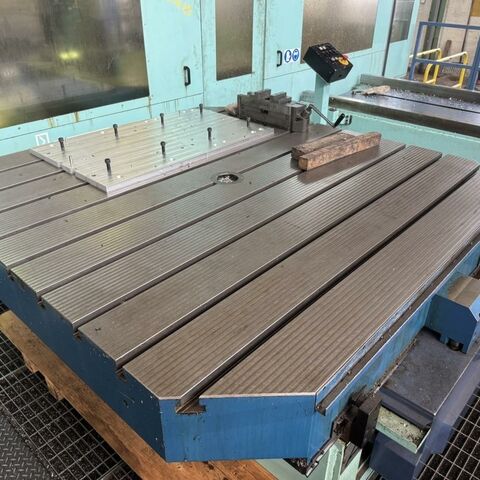

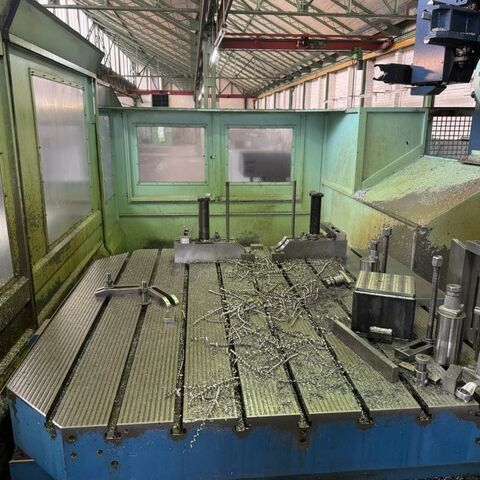

| table-size |
|---|
| (2x) 2000 x 2000 mm |
| control |
|---|
| TNC 430 B |
| spindle turning speed range |
|---|
| 60 - 3600 U/min |
| spindle taper ISO |
|---|
| 50 |
| feeds |
|---|
| 0 - 20000 mm/min |
| table load |
|---|
| 10 t |
| milling drive |
|---|
| 28 kW |
| total power requirement |
|---|
| 48 kW |
| weight of the machine ca. |
|---|
| 47 t |
| dimensions of the machine ca. |
|---|
| 6,5 x 3 x 3 m |
Additional Information
Country of origin Italy, Current location ex site,
Delivery as per agreement, Quotation ex site, free on truck,
Price on request
