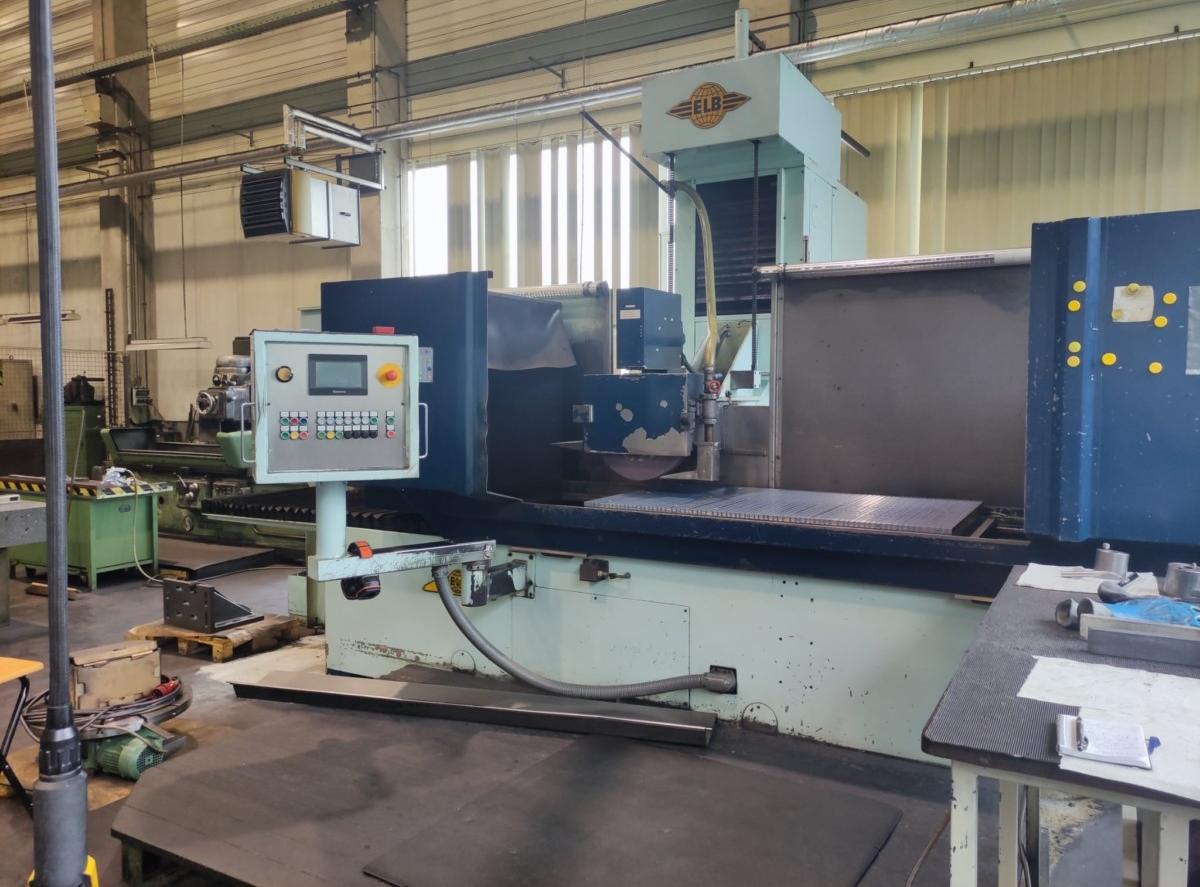

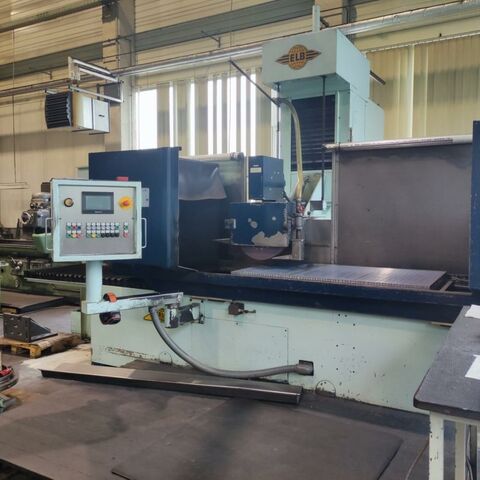

Surface Grinding Machine - Horizontal

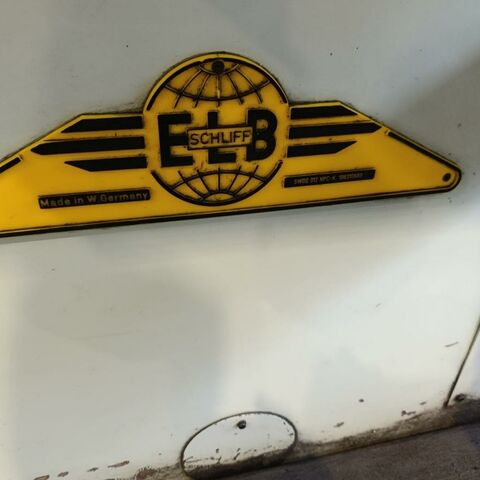

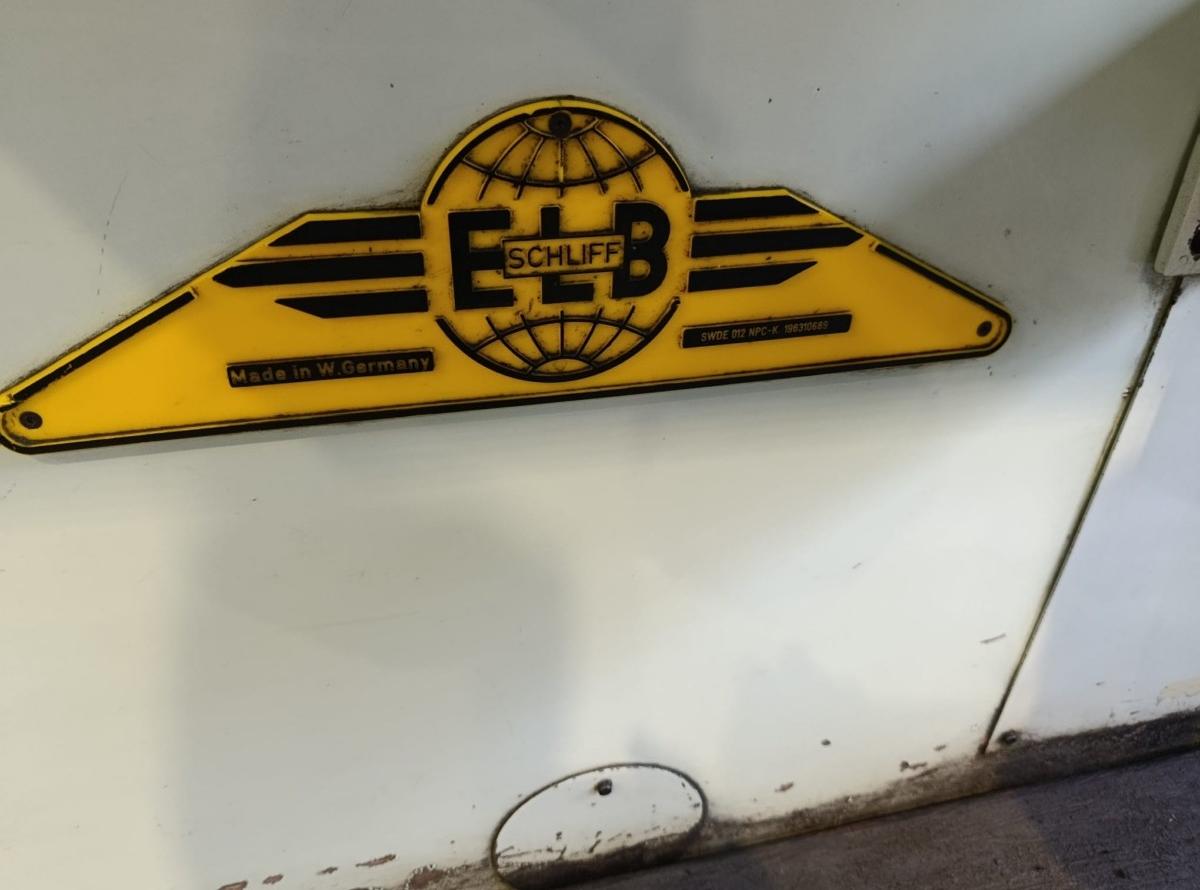

ELB SWDE 012 NPC-K
Catalog no. 124114
Built in 1989,
Machine was complete refurbished and modernized in 2009/23. X-axe and drive

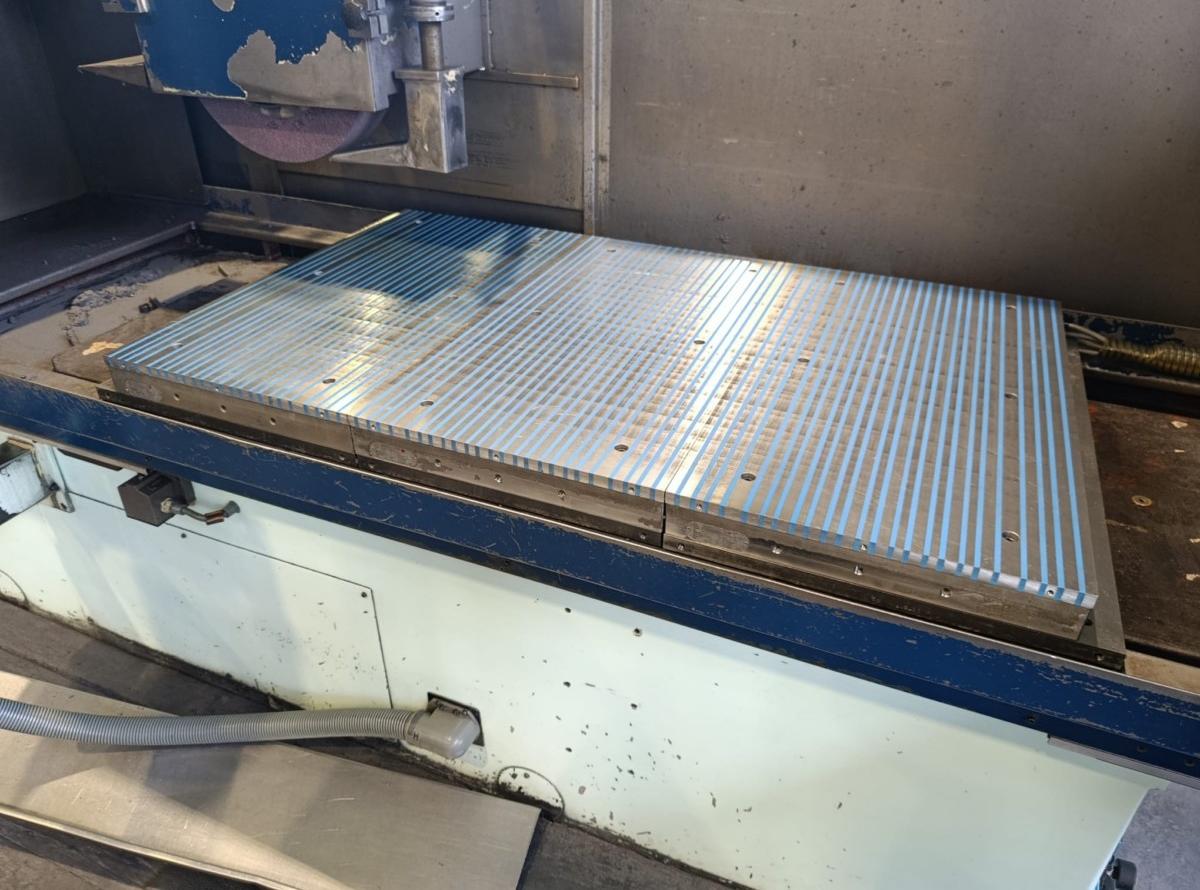

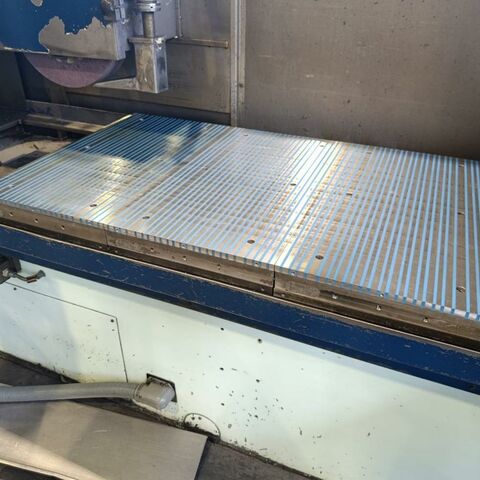

were refurbished in 2023 and the machine got new magnetic chucks.

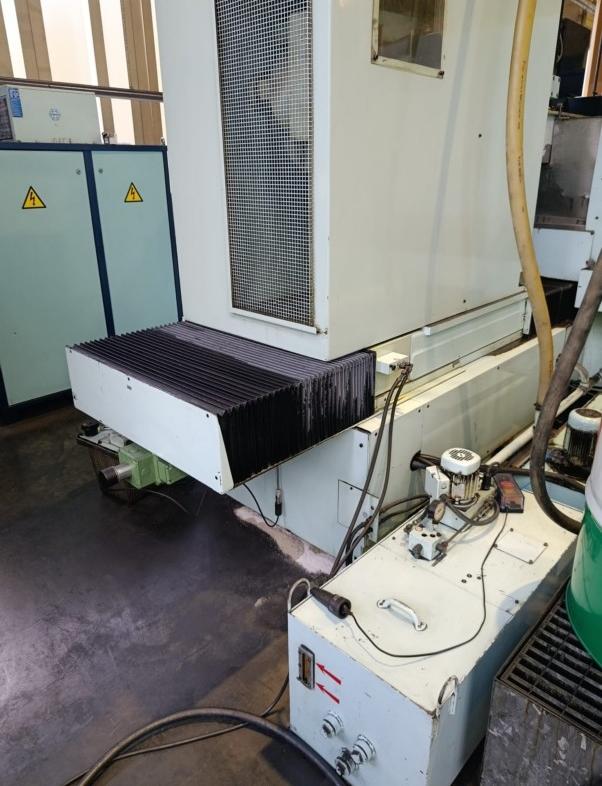

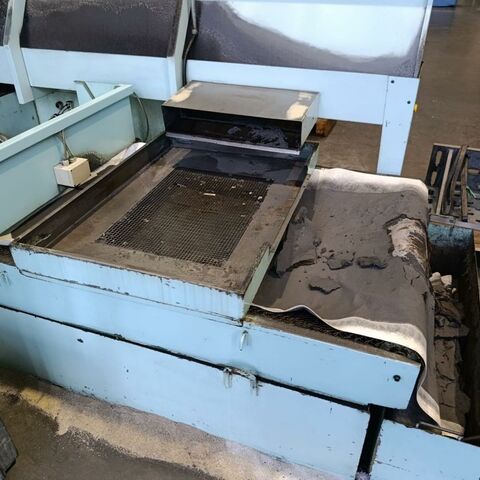

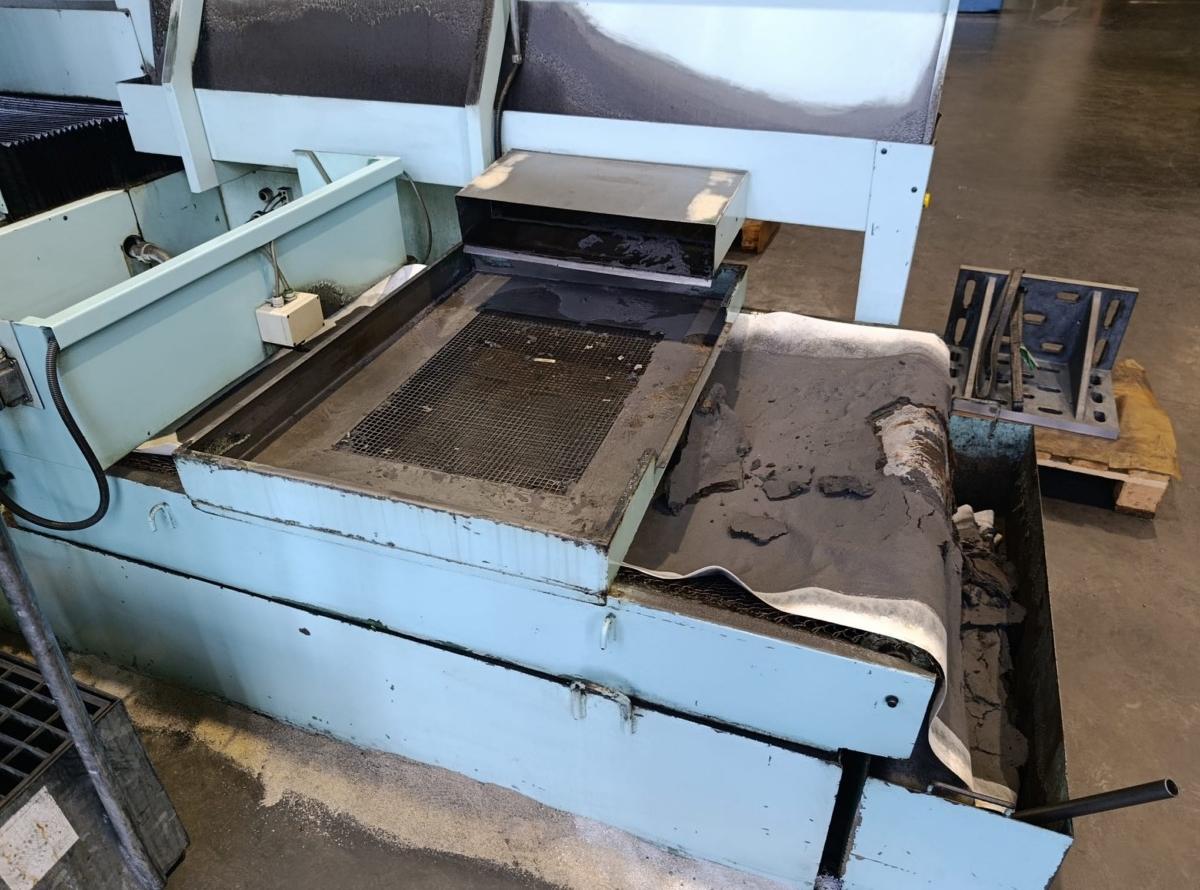

Machine has cooling arrangement, dressing arrangement and auto. vert. feed.

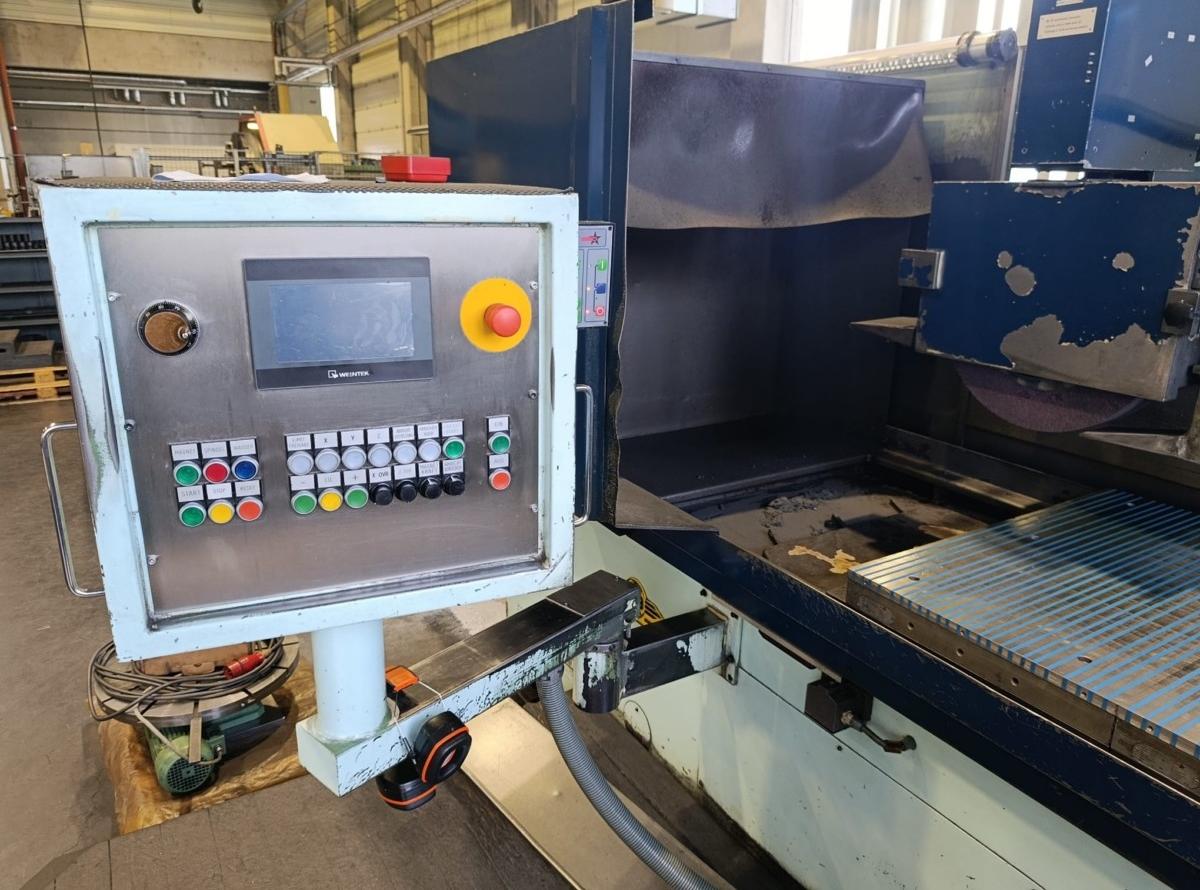

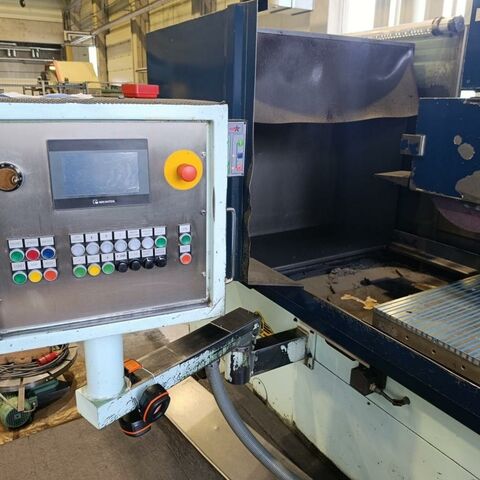

Machine has mechanical table drive and a Siemens Control.
| table-size |
|---|
| 1800 x 900 mm |
| grinding range |
|---|
| 1500 x 900 mm |
| workpiece height |
|---|
| 690 mm |
| table speeds |
|---|
| 4 - 36 längs m/min |
| grinding width |
|---|
| 900 mm |
| grinding length |
|---|
| 1500 mm |
| table speeds |
|---|
| 1 - 60 quer m/min |
| grinding wheel size |
|---|
| 500 x 100 x 203 mm |
| grinding spindle speed |
|---|
| 1000 U/min |

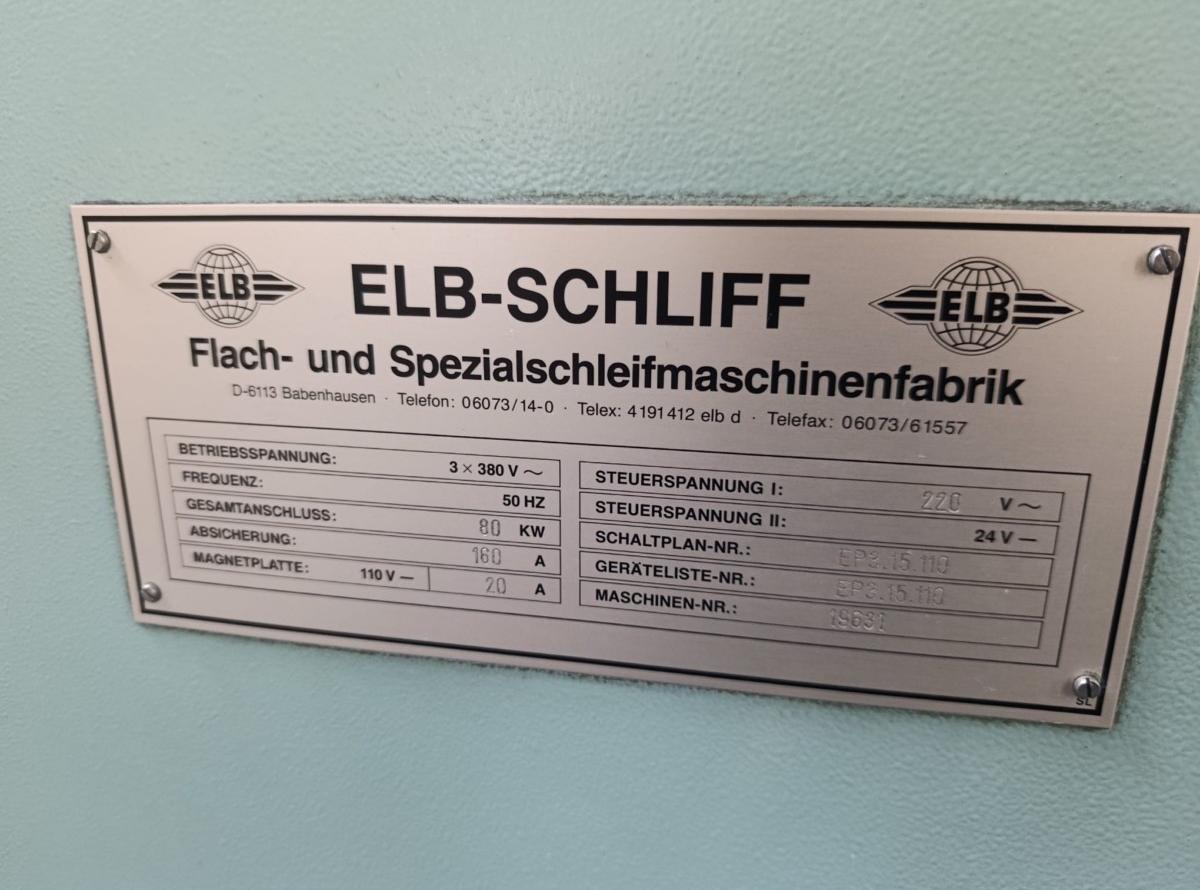

| voltage |
|---|
| 400 V |
| total power requirement |
|---|
| 80 kW |
| grinding spindle drive |
|---|
| 28 kW |
| weight of the machine ca. |
|---|
| 17 t |
Additional Information
Country of origin Germany,
Delivery immediately, Quotation ex stock, free on truck,
Price on request
