Broaching Machine-Internal - Vertical
HENNING U3E1000
Catalog no. 1535
Built in 1982,

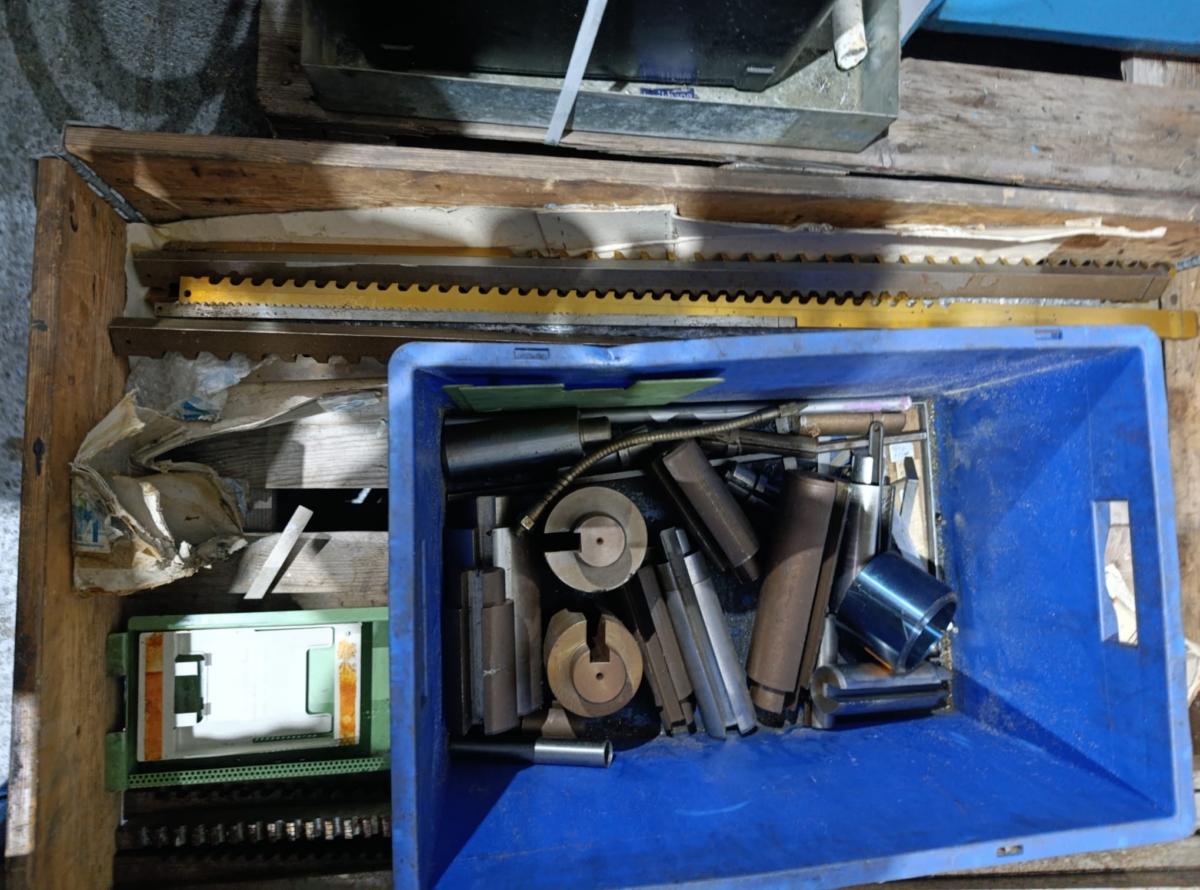

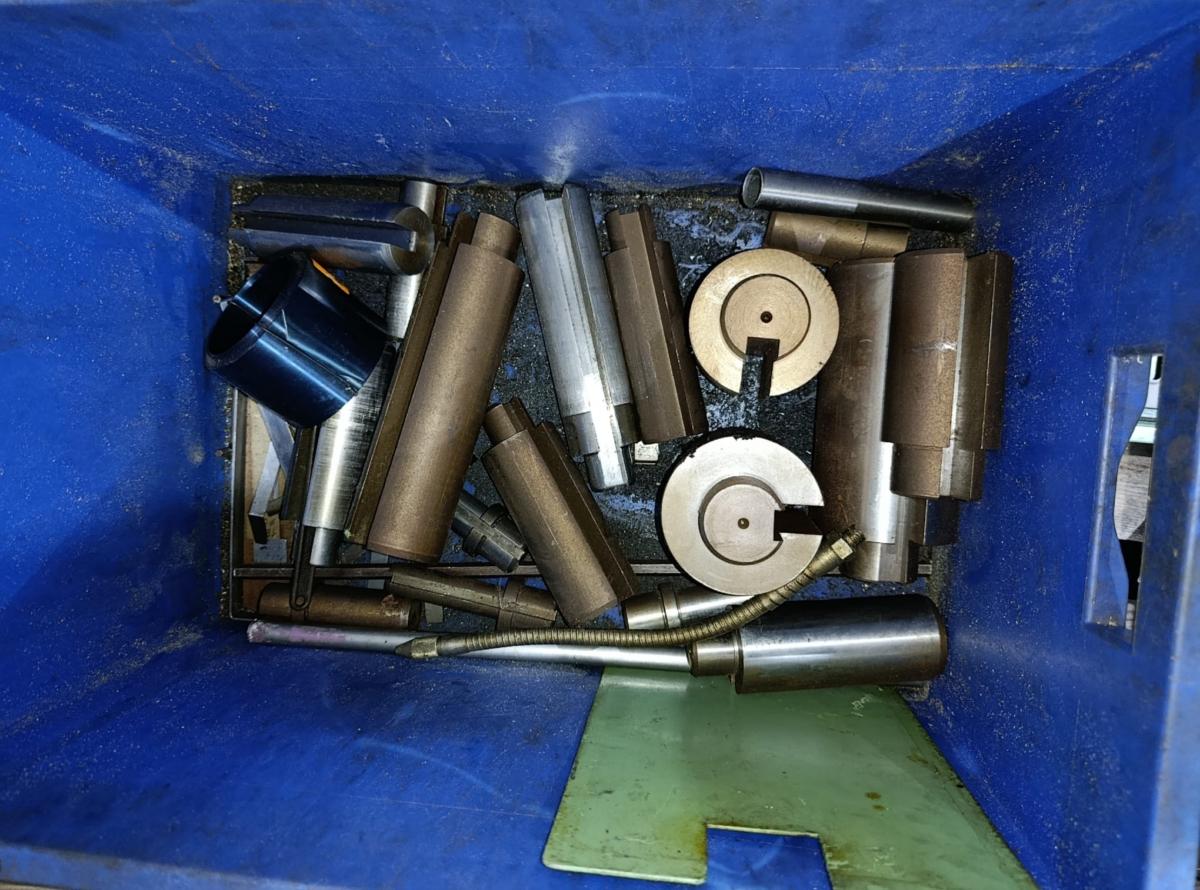

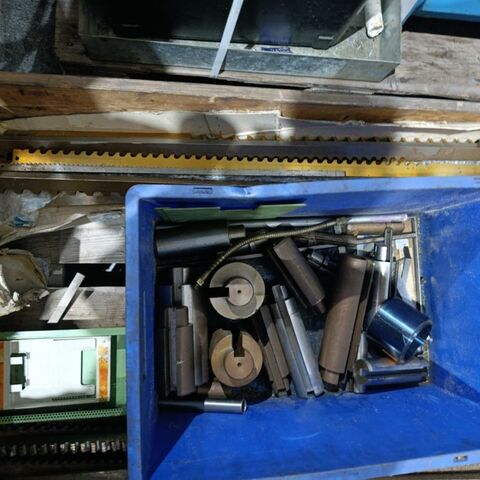

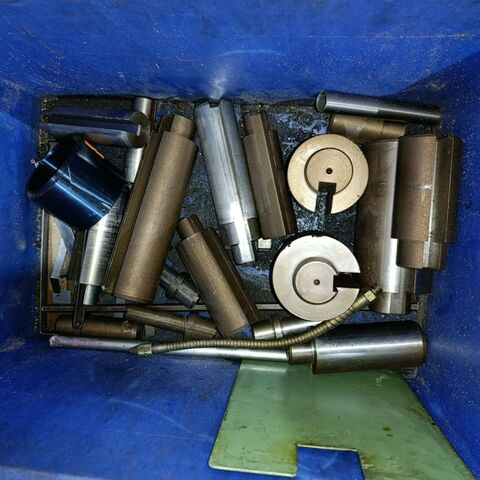

Machine comes with accessories, such as holders and broches.
| pulling force - max. |
|---|
| 3 t |
| max. ram stroke |
|---|
| 1000 mm |
| max. workpiece diameter |
|---|
| 200 mm |
| table-size |
|---|
| 500 x 220 mm |
| working area |
|---|
| 500 x 220 mm |
| work speed |
|---|
| 3 + 5 m/min |
| return speed |
|---|
| 10 m/min |
| tool length - max. |
|---|
| 1200 mm |
| table hole |
|---|
| 50 mm |
| total power requirement |
|---|
| 6 kW |
| weight of the machine ca. |
|---|
| 1 t |
| dimensions of the machine ca. |
|---|
| 1 x 1 x 1,8 m |
Additional Information
Country of origin Germany, Current location warehouse Ennepetal H 2,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
