Section Shear - Combined

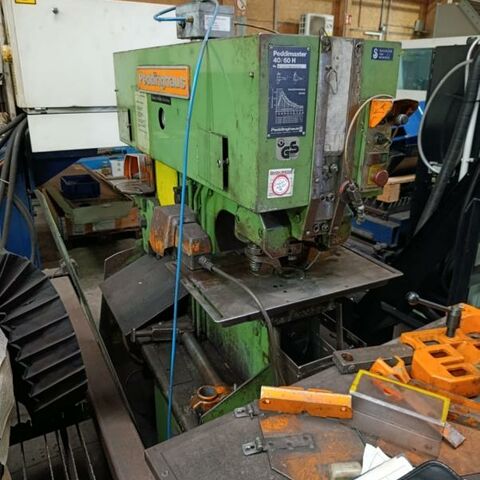

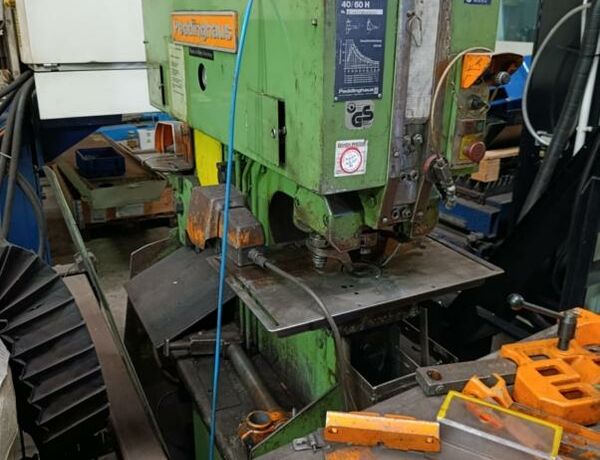

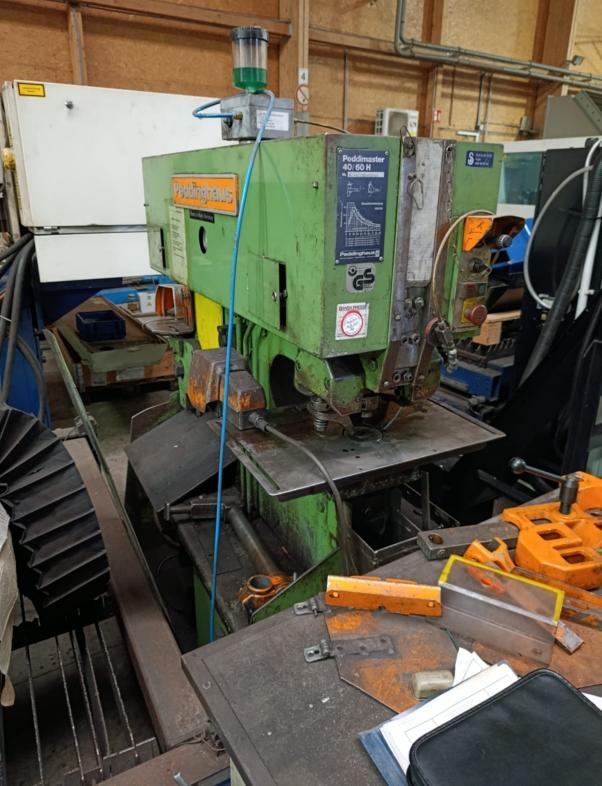

PEDDINGHAUS Peddimaster 40/60H
Catalog no. 18245
Built in 1985,
Accessories: tool cabinet with various punches and dies, length stop
| round bar steel |
|---|
| 40 mm |
| square edge steel |
|---|
| 40 mm |
| L-beam |
|---|
| 120 x 12 mm |
| Punch power |
|---|
| 600 kN |
| hole punching press: throat |
|---|
| 400 mm |
| hole punching press: max. length of stroke |
|---|
| 32 mm |
| hole punching press: capacity (dia. x thick.) |
|---|
| 30 x15 mm |
| hole punching press: capacity (dia. x thick.) |
|---|
| 20 x 20 mm |
| notching: l + T material |
|---|
| 80 x 10 mm |
| no. of strokes |
|---|
| 40 / 46 Hub/min |
| shear: flat material |
|---|
| 150 x 15 mm |
| shear: length of knifes |
|---|
| 275 mm |
| total power requirement |
|---|
| 3 kW |
| weight of the machine ca. |
|---|
| 2,9 t |
| dimensions of machine L x W x H |
|---|
| 2,18 x 0,83 x 2,15 m |
Additional Information
Country of origin Germany,
Delivery as per agreement, Quotation ex works, loaded on truck,
Price on request
