Section Shear - Combined

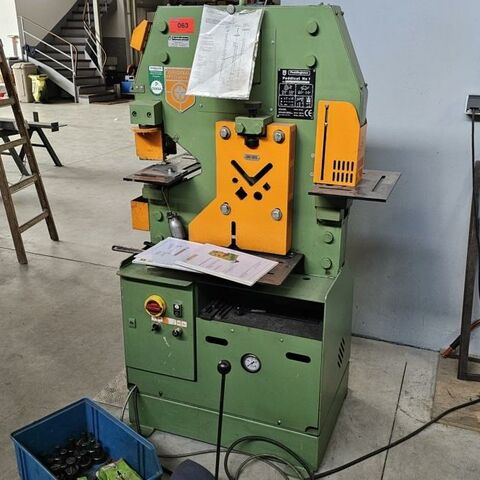

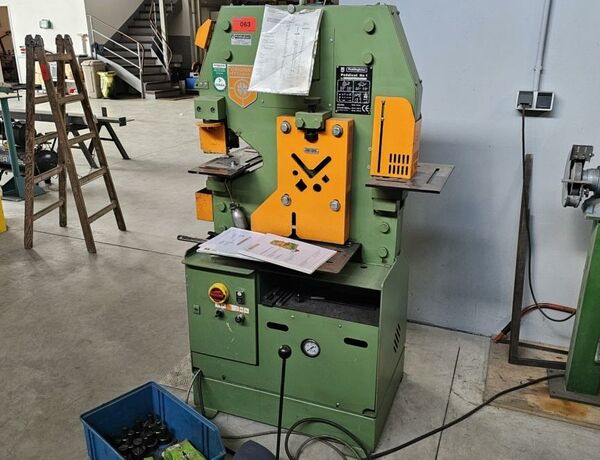

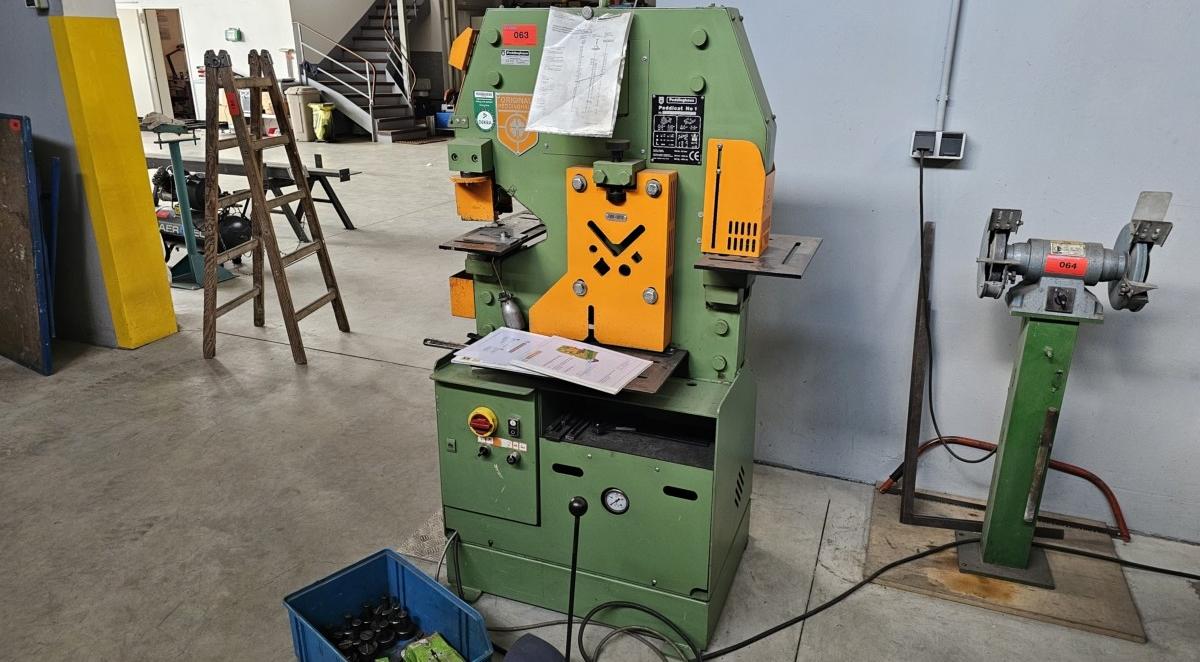

PEDDINGHAUS Peddicat No.1
Catalog no. 18439
Built in 2010,
5-fold combinated section shear with flat steel shear and notching,
punching device, blade for angular steel, round and square steel
various tools and dies
| round bar steel |
|---|
| 32 mm |
| square edge steel |
|---|
| 30 mm |
| L-beam |
|---|
| 100 x 8 mm |
| plate thickness |
|---|
| 10 mm |
| flat steel |
|---|
| 350 x 13 mm |
| blade length |
|---|
| 370 mm |
| T - beam - web outwards |
|---|
| 100 x 8 mm |
| hole punching press: throat |
|---|
| 203 mm |
| pressure |
|---|
| 50 t |
| hole diameter in sheet thickness |
|---|
| 31 in 12 mm |
| power capacity |
|---|
| 4 kW |
| weight of the machine ca. |
|---|
| 0,9 t |
| dimensions of the machine ca. |
|---|
| 1 x 0,7 x 1,7 m |
Additional Information
Country of origin Fed. Rep. Germany, Current location warehouse Ennepetal,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
