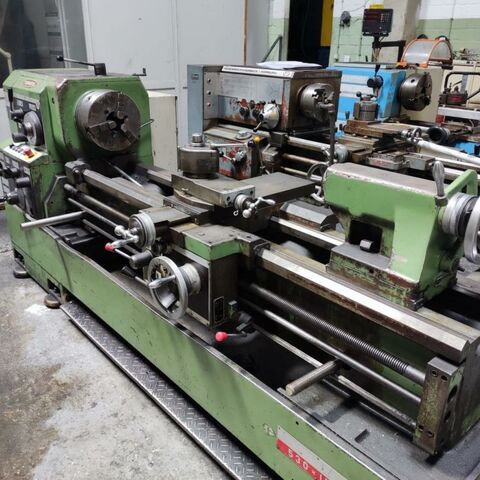

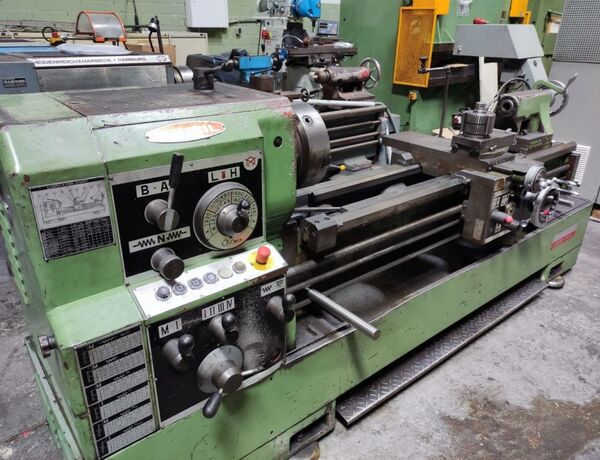

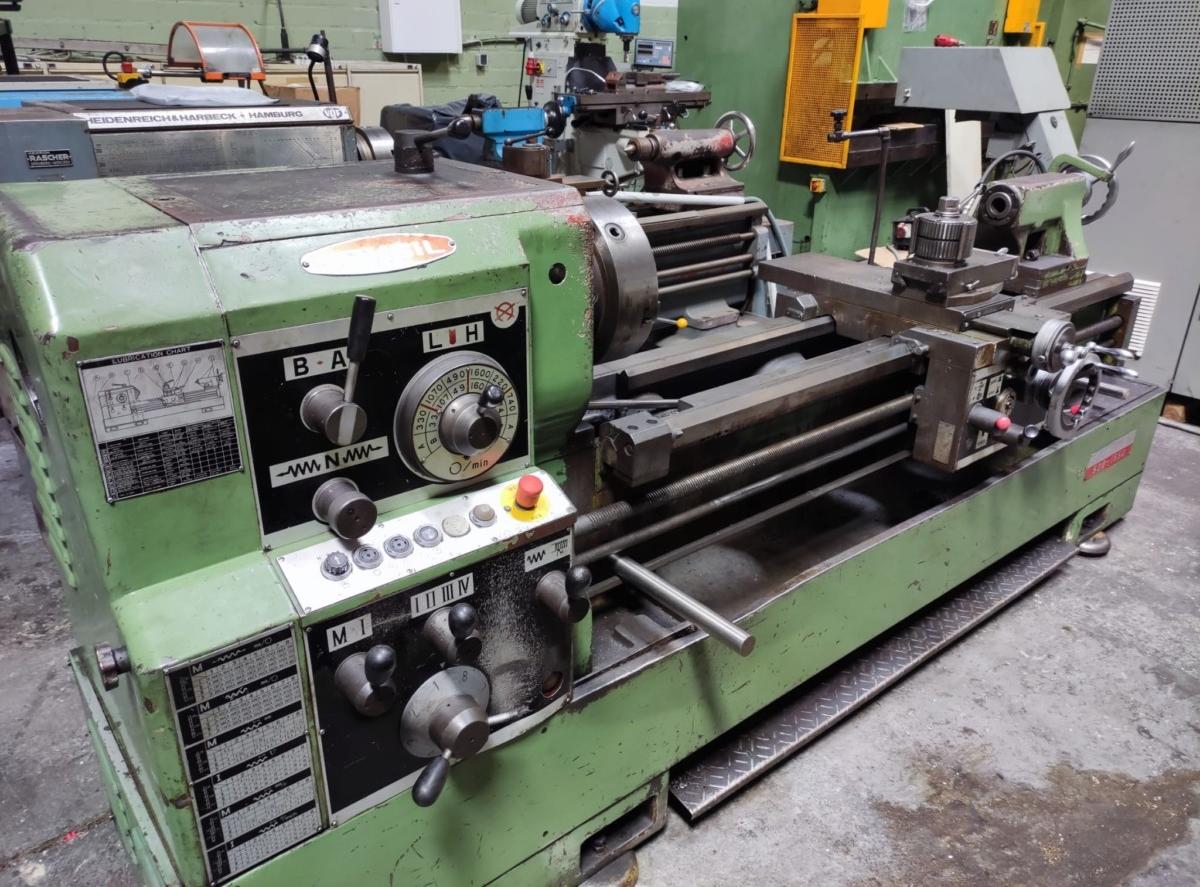

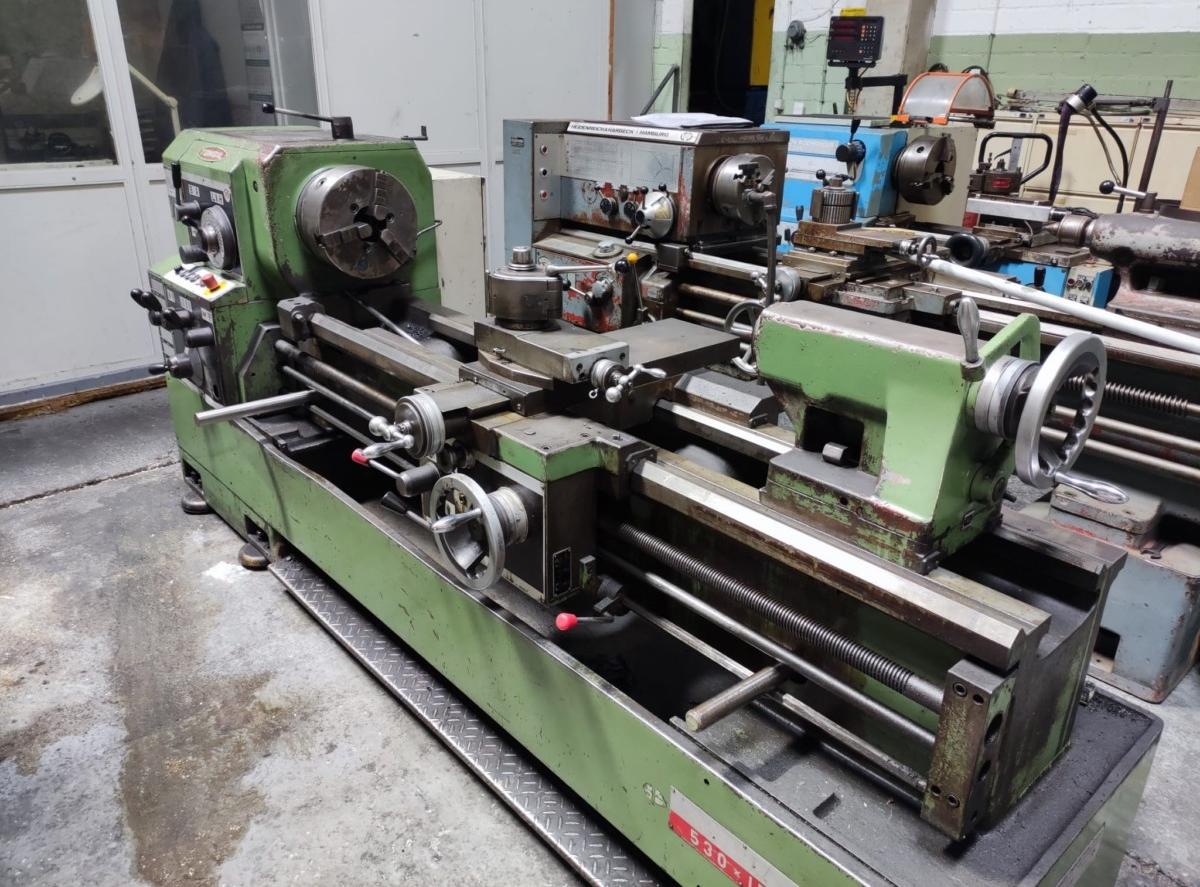

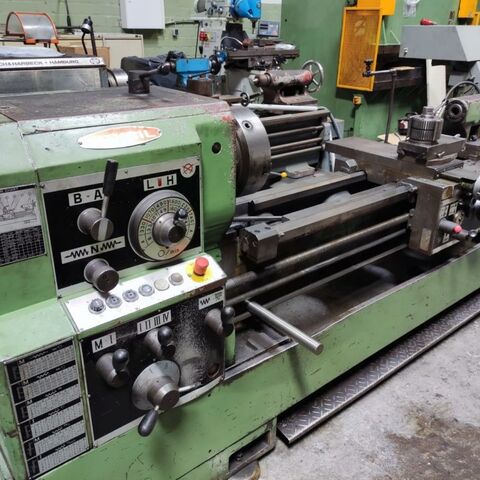

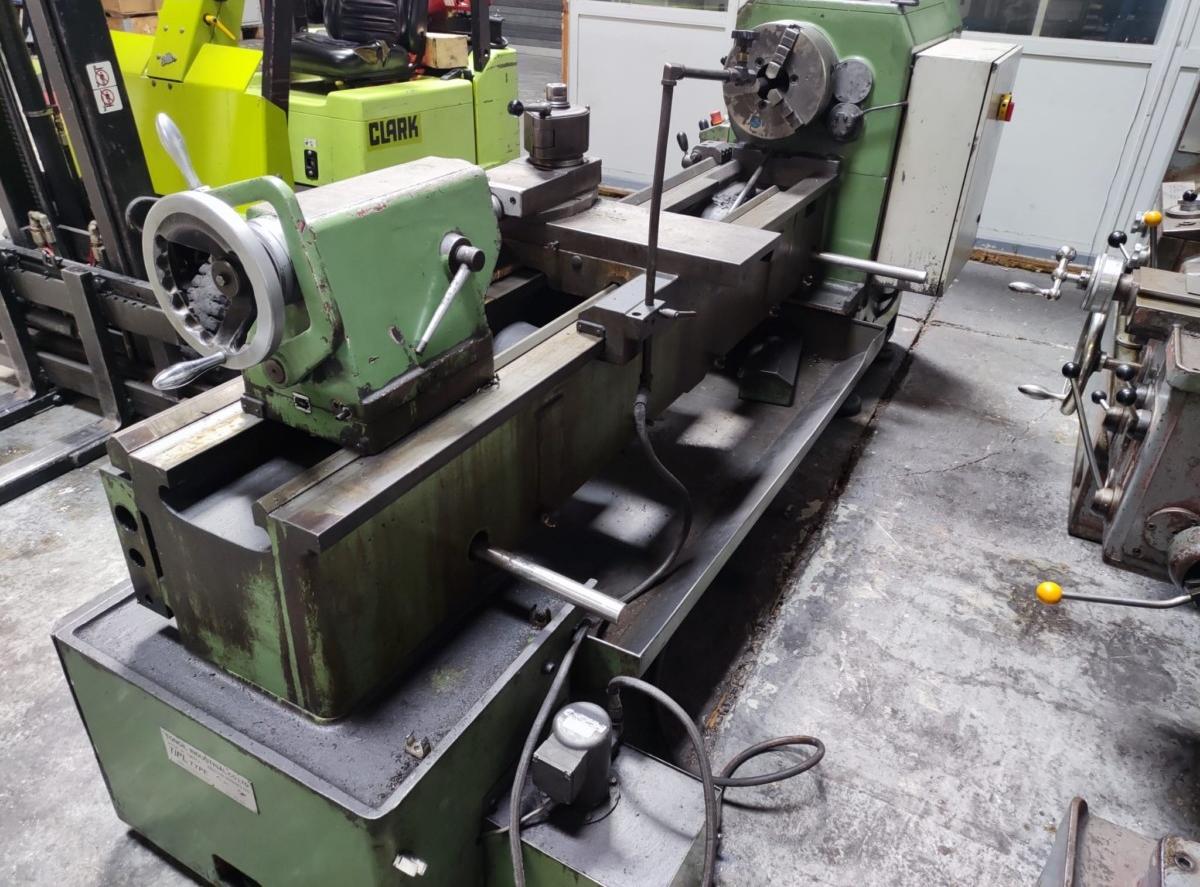

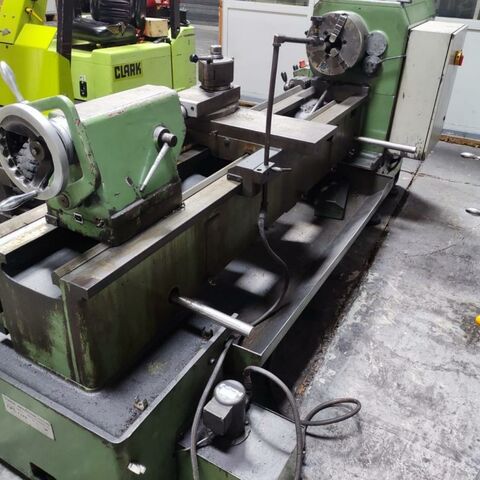

Center Lathe
TONGIL TIPL5-530x1550
Catalog no. 2000171
Built in 1980,
With Multifix holder and chuck.
| turning diameter over bed |
|---|
| 0530 mm |
| turning diameter over slide rest |
|---|
| 300 mm |
| turning length |
|---|
| 1550 mm |
| spindle bore |
|---|
| 78 mm |
| spindle turning speed range |
|---|
| 22- 1600 U/min |
| total power requirement |
|---|
| 7,5 kW |
| weight of the machine ca. |
|---|
| 3 t |
| dimensions of the machine ca. |
|---|
| 3,2 x 1,2 x 1,4 m |
Additional Information
Country of origin Taiwan, Current location warehouse Ennepetal,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
