Center Lathe
YAW MACHINE TOOL CW800B x 4000
Catalog no. 2000178
Built in 2021,

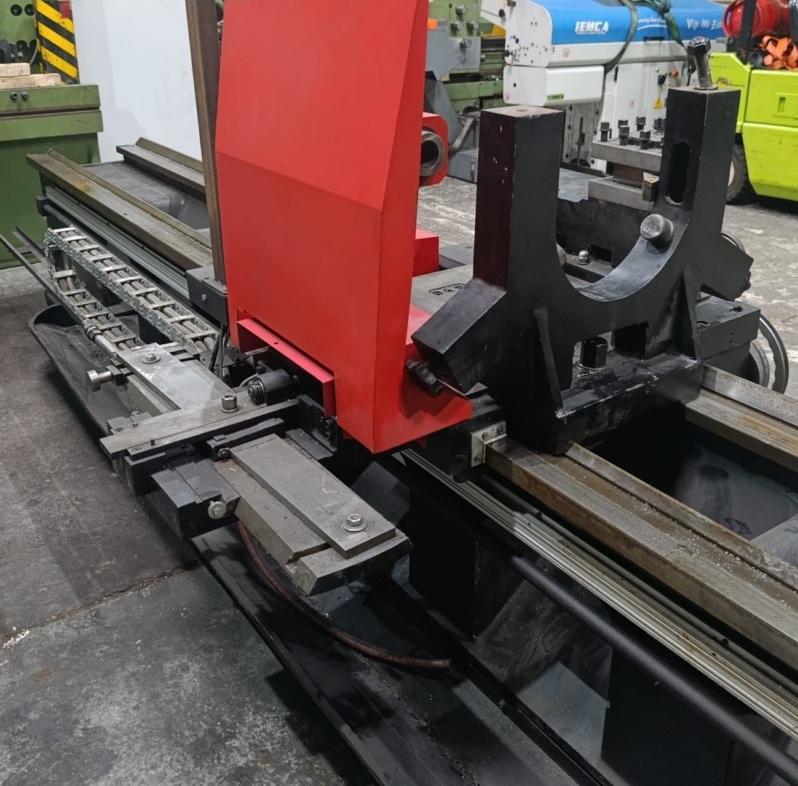

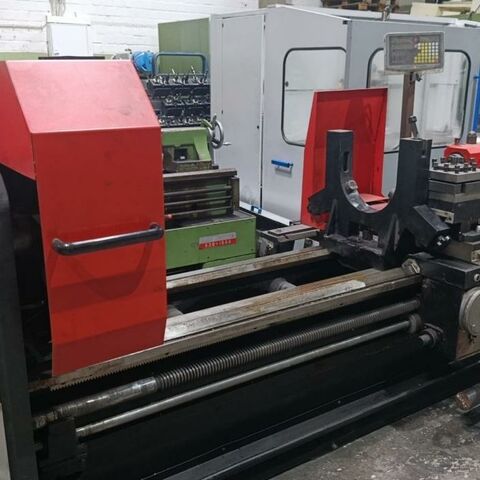

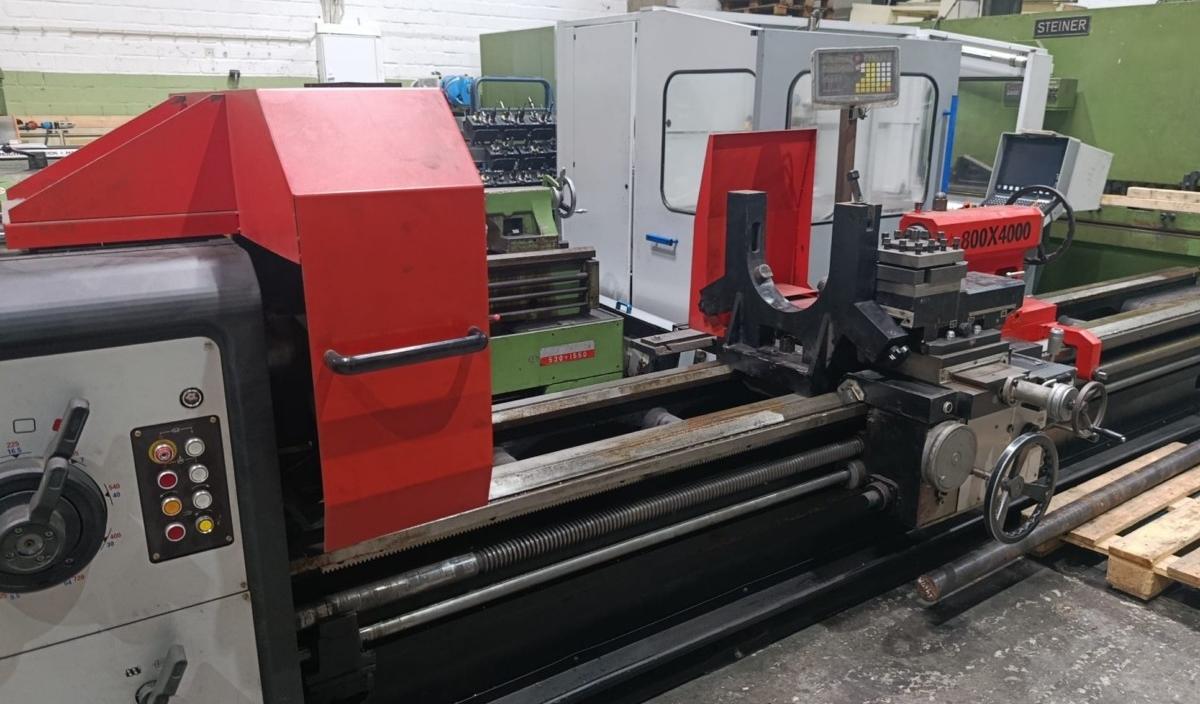

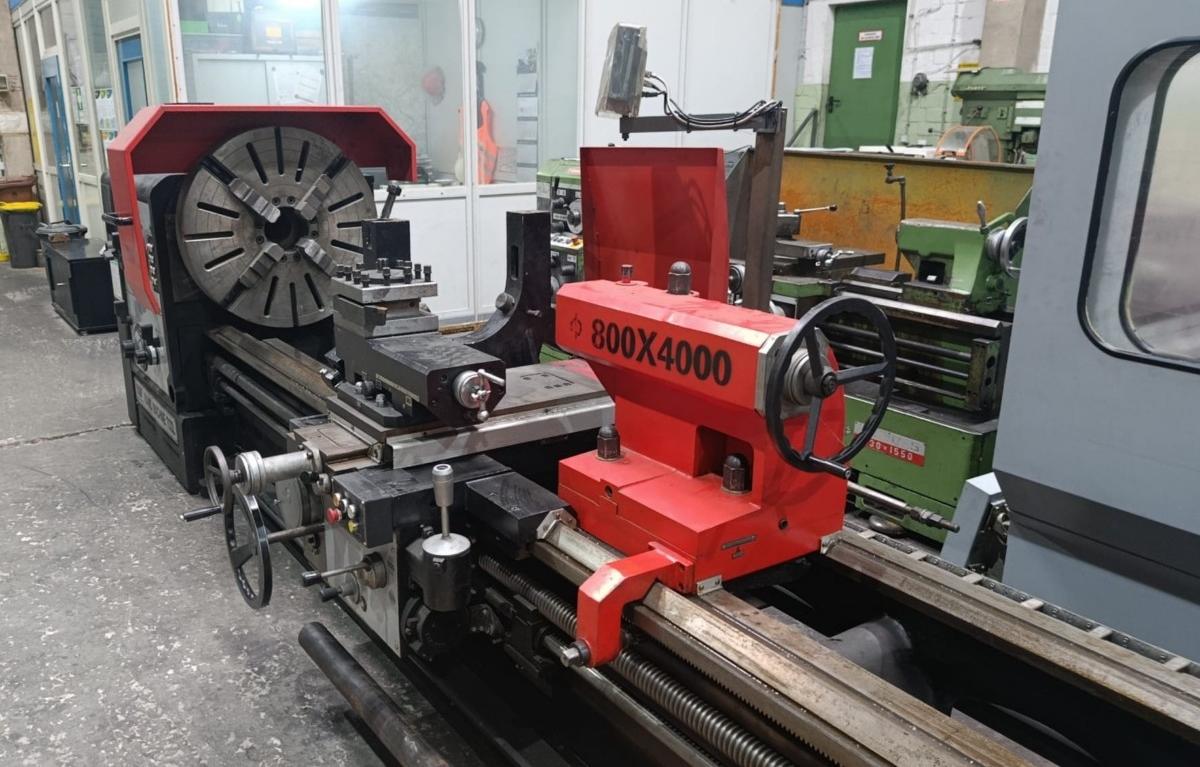

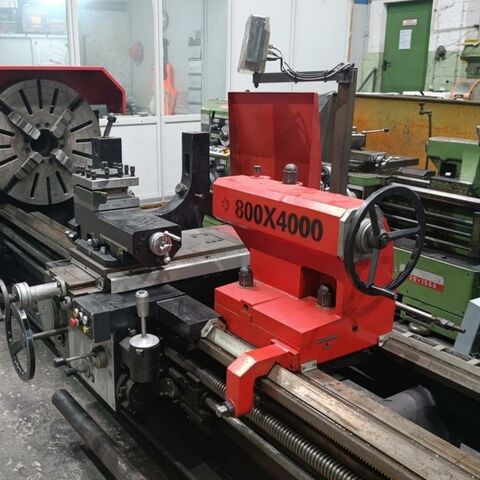

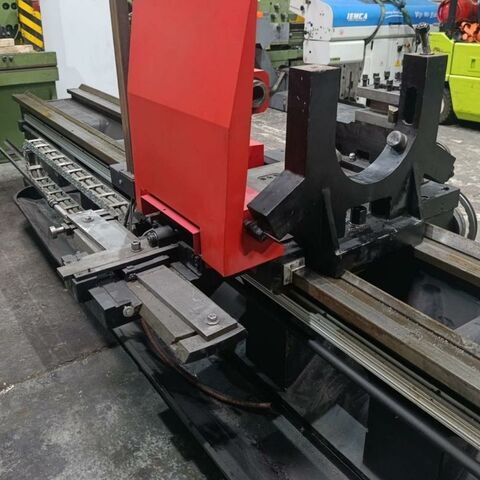

With 4 position tool holder, face plate with safety cover, steady rest and DRO.
| turning diameter over bed |
|---|
| 0800 mm |
| turning diameter over slide rest |
|---|
| 500 mm |
| turning length |
|---|
| 4000 mm |
| spindle bore |
|---|
| 105 mm |
| spindle turning speed range |
|---|
| 5,4 - 720 U/min |
| workpiece weight |
|---|
| 2500 kg |
| bed width |
|---|
| 600 mm |
| spindle bore |
|---|
| 105 mm |
| longitudinal feeds: |
|---|
| 0,05- 24,3 mm/U |
| cross feed |
|---|
| 0,05 - 12,15 mm/U |
| rapid traverse |
|---|
| 4 m/min |
| main drive |
|---|
| 11 kW |
| total power requirement |
|---|
| 14 kW |
| weight of the machine ca. |
|---|
| 8 t |
| dimensions of the machine ca. |
|---|
| 6,5 x 2,5 x 2 m |
Additional Information
Country of origin China, Current location warehouse Ennepetal,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
