CNC Lathe
HURCO TM6
Catalog no. 203467

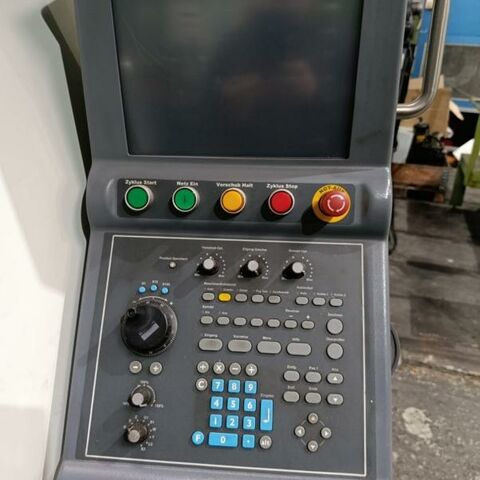

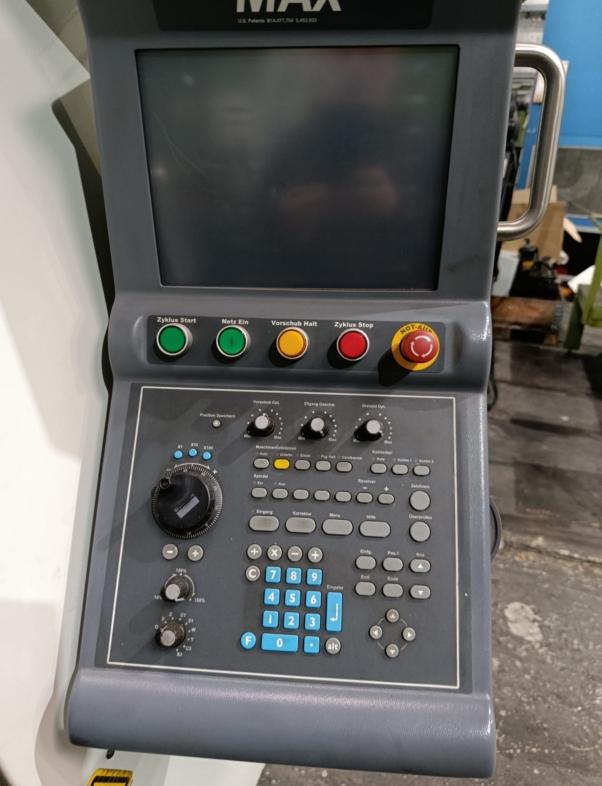

Built in 2010, Control ultimax Hurco,

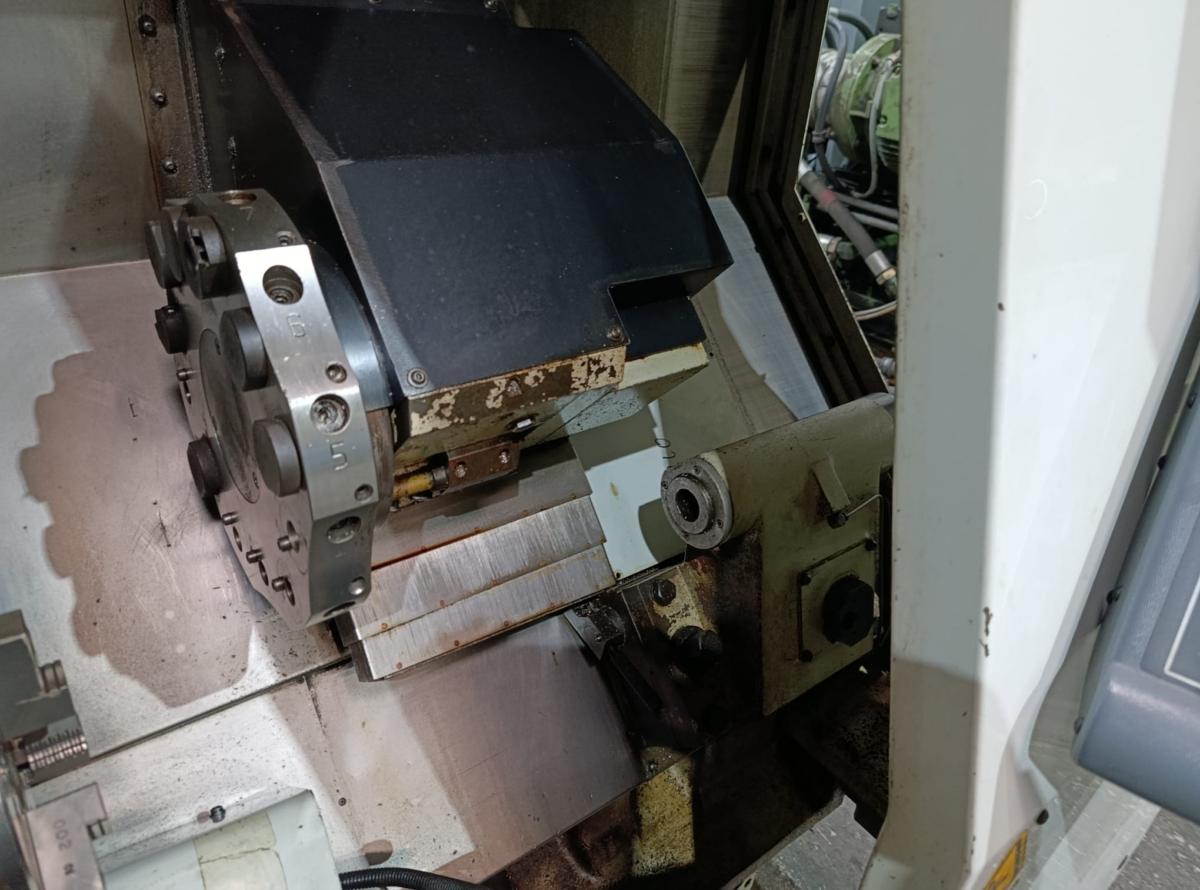

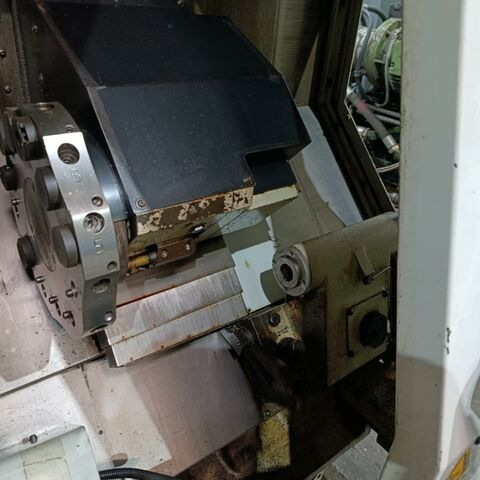

Machine has 12 position turret and a bar loader.
| turning diameter over bed |
|---|
| 316 mm |
| turning length |
|---|
| 340 mm |
| control |
|---|
| ultimax Hurco |
| turning diameter over bed slide |
|---|
| 240 mm |
| swing dia. |
|---|
| 402,5 mm |
| spindle turning speed - stepless |
|---|
| 0- 6000 U/min- rpm |
| spindle bore |
|---|
| 45 mm |
| feeds |
|---|
| 0- 30 m/min |
| voltage |
|---|
| 400 V |
| connected load |
|---|
| 14 KW |
| face slide travel |
|---|
| 185 mm |
| longitudinal travel |
|---|
| 340 mm |
| dimensions of the machine ca. |
|---|
| 3,76 x 2,92 x 2,15 m |
| taper diameter |
|---|
| VDI 20 mm |
| main drive motor |
|---|
| 11,5 kW |
| weight of the machine ca. |
|---|
| 3,2 t |
Additional Information
Country of origin Taiwan, Current location ex site,
Delivery as per agreement, Quotation ex place,
Price on request
