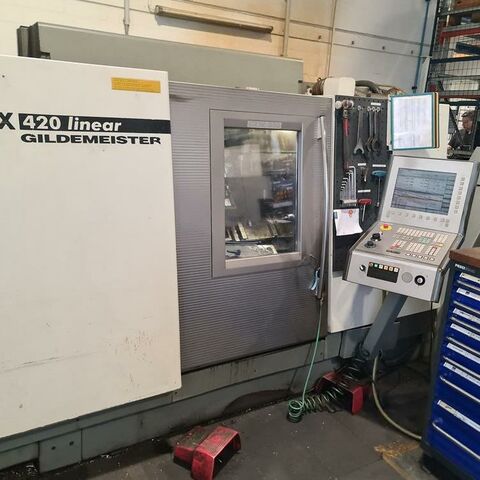

CNC Lathe

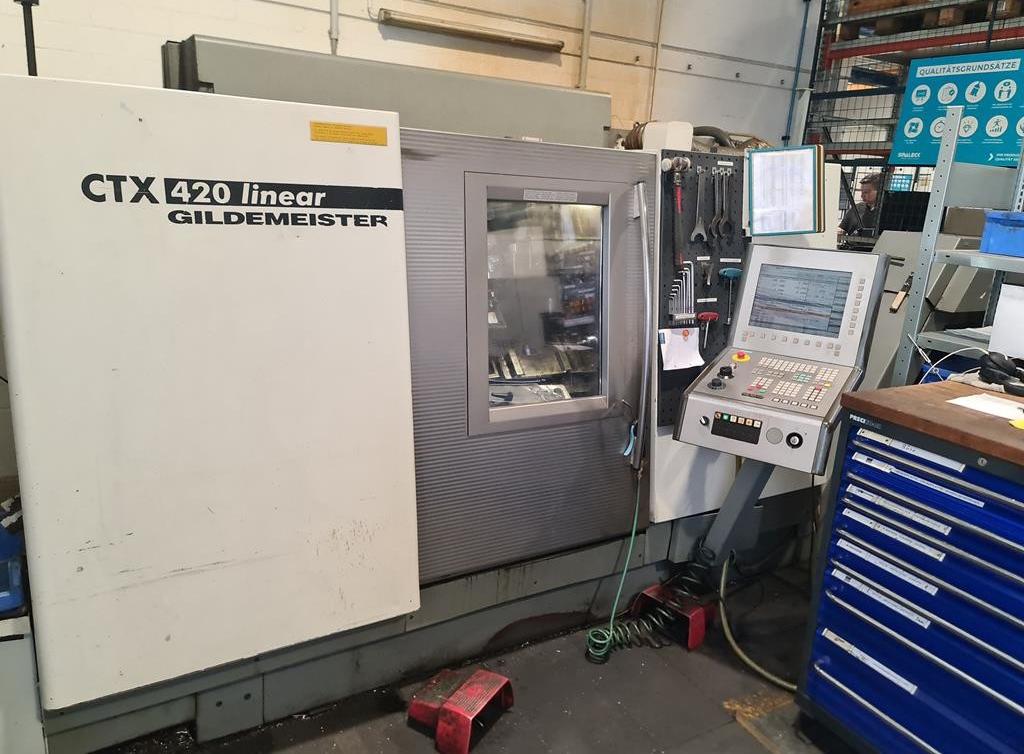

GILDEMEISTER CTX 420 linear
Catalog no. 203468
Built in 2003, Control 840D shop turn,

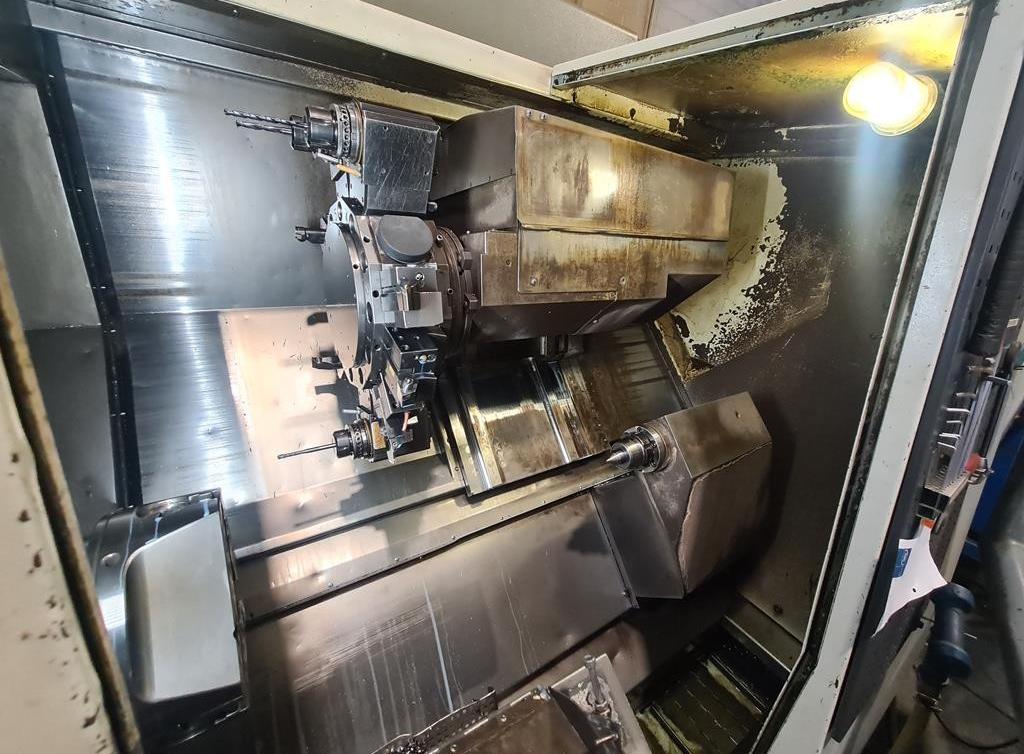

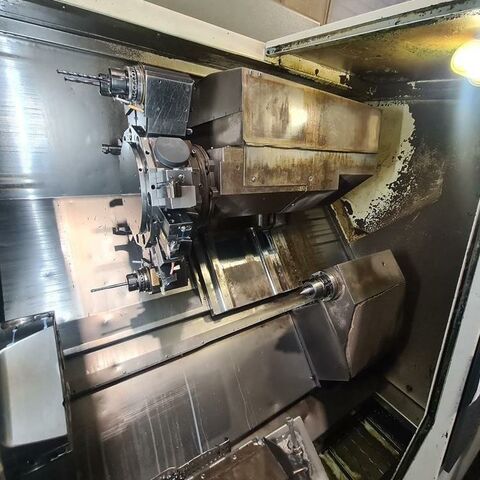

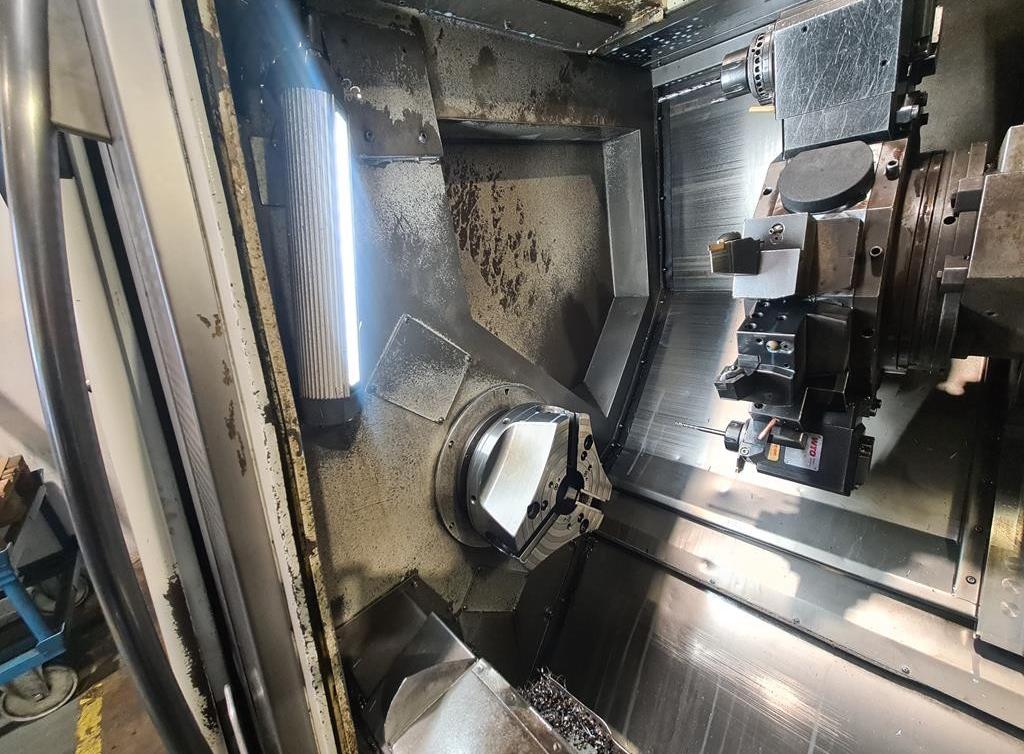

Machine has C-axe, Y- axe and live tooling.

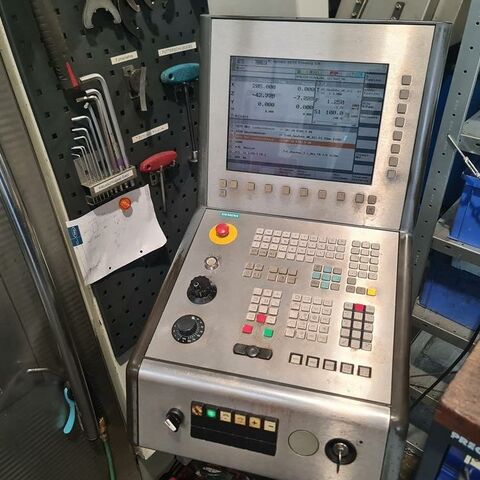

Control: Siemens 840 D shop turn.

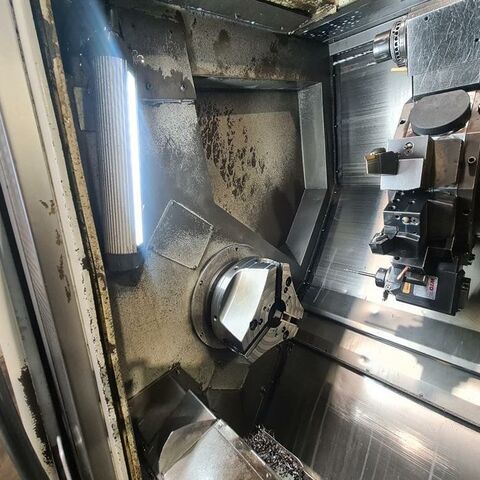

Machine has tail stock and power chuck.

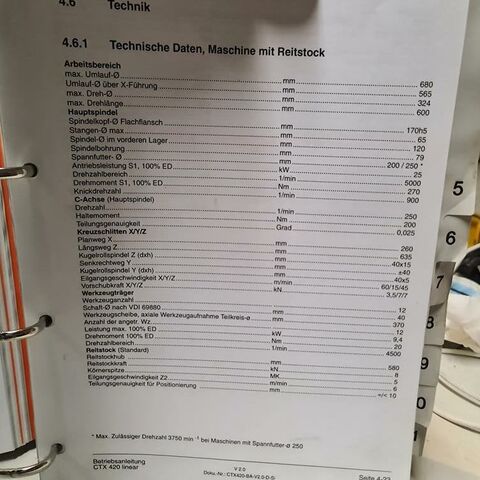

| turning diameter |
|---|
| 0324 mm |
| turning length |
|---|
| 600 mm |
| control |
|---|
| 840D shop turn |
| turret head |
|---|
| 12 pos. |
| swing over bed |
|---|
| 680 mm |
| spindle turning speed - stepless |
|---|
| 0 - 5000 rpm |
| swing diameter over bed slide |
|---|
| 565 mm |
| spindle bore |
|---|
| 79 mm |
| drive capacity - workpiece |
|---|
| 25 kW |
| x-axis |
|---|
| 260 mm |
| y-axis |
|---|
| +/- 40 mm |
| z-axis |
|---|
| 635 mm |
| rapid traverse |
|---|
| 60/15/45 m/min |
| toolpiece turning speed range |
|---|
| 4500 U/min |
| total power requirement |
|---|
| 50 KVA |
| weight of the machine ca. |
|---|
| 6,5 t |
| dimensions of the machine ca. |
|---|
| 4,5 x 2,4 x 2,1 m |
Additional Information
Country of origin Germany,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
