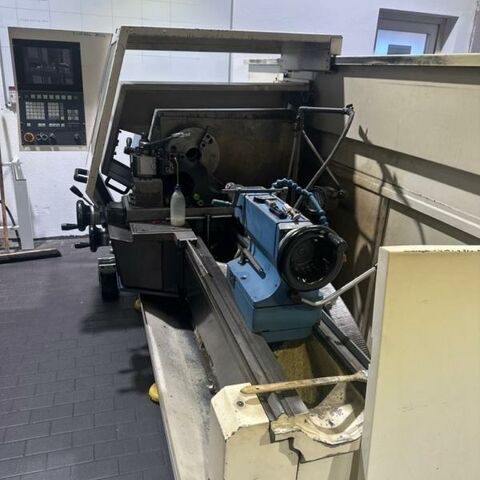

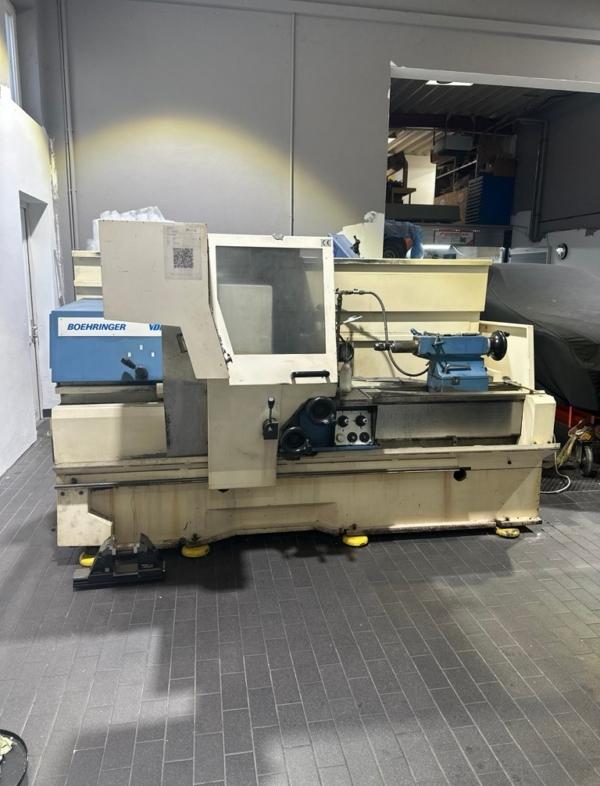

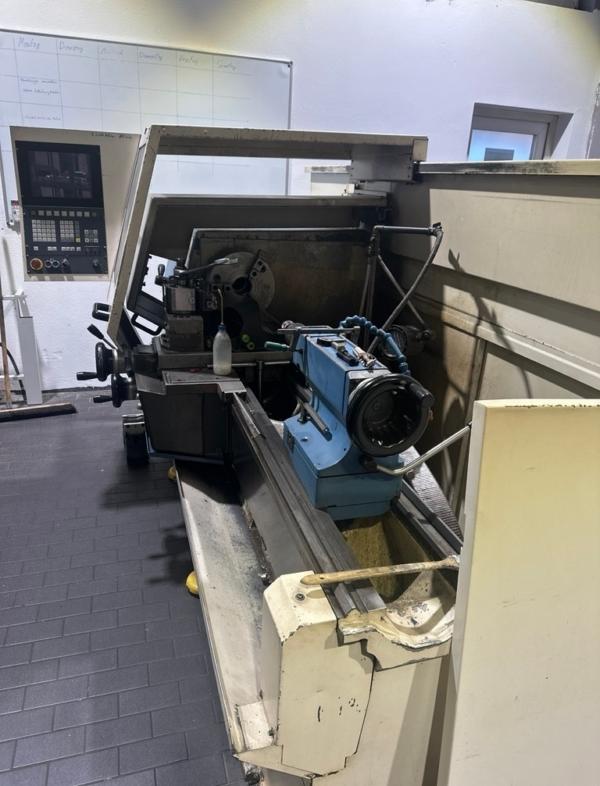

Lathe - cycle-controlled

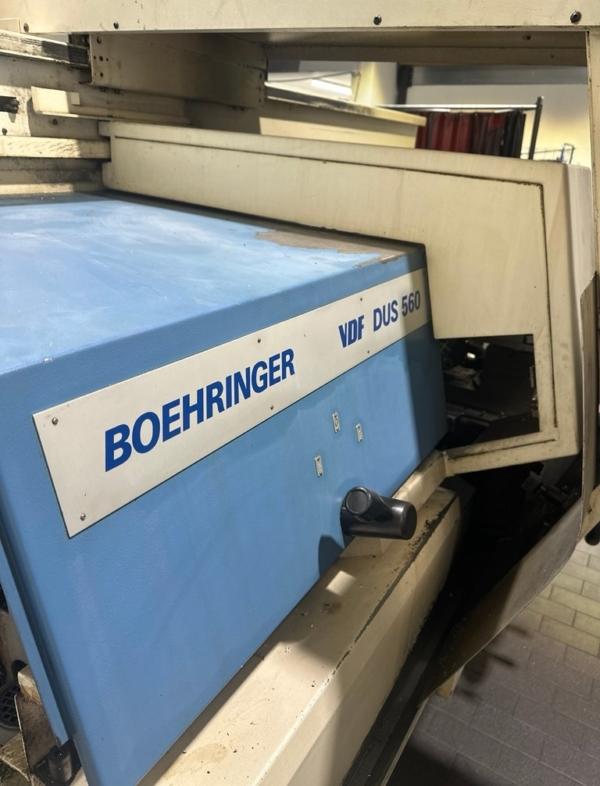

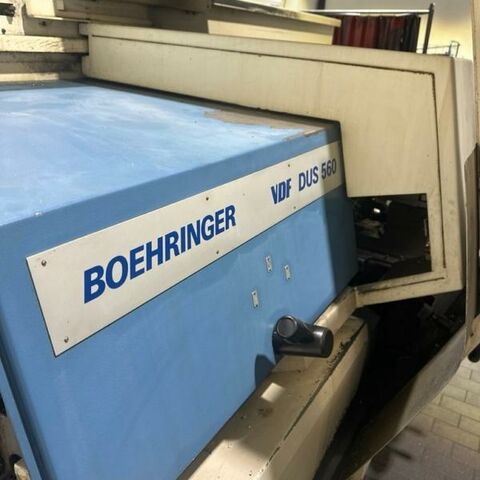

VDF- BOEHRINGER DUS 560 x 1250
Catalog no. 203469

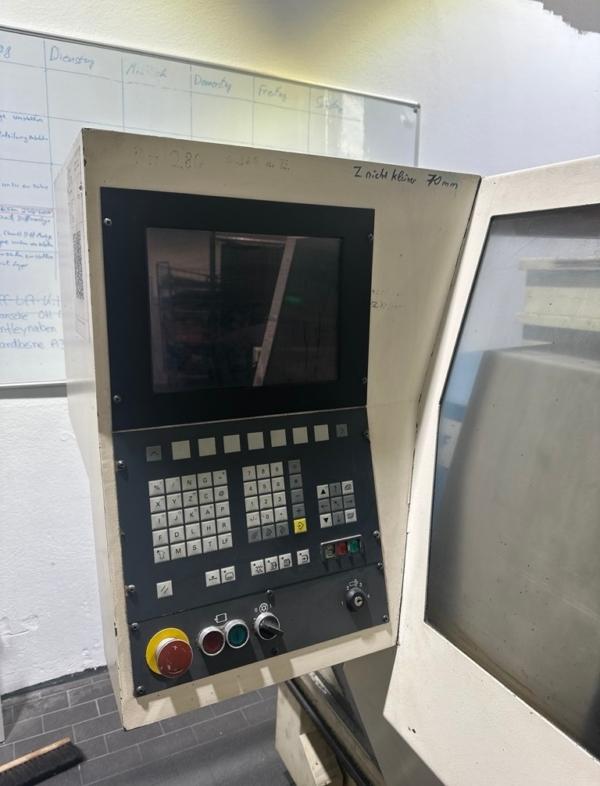

Built in 1995, Control Sinumerik 805,
controll Siemens 805, for cone turning, contour turning and
threat cutting. Machine has MULTIFIX toolholder system size "C", steady and
3 jaw chuck.
| turning diameter |
|---|
| 560 mm |
| turning length |
|---|
| 1250 mm |
| control |
|---|
| Sinumerik 805 |
| turning dia. over face-slide |
|---|
| 340 mm |
| spindle bore |
|---|
| 63 mm |
| spindle turning speed range |
|---|
| 3 - 2500 U/min |
| feeds - longitudinal |
|---|
| 0,001 - 3 mm/U |
| feeds - cross |
|---|
| 0,001 - 3 mm/U |
| rapid traverse longitudinal |
|---|
| 7 m/min |
| rapid traverse cross |
|---|
| 3,5 m/min |
| thread - mm pitch |
|---|
| 0,5 - 140 mm |
| thread - inch |
|---|
| 1/4 - 56 Gang/ inch. |
| thread - module |
|---|
| 0,125 - 28 mm |
| main drive |
|---|
| 19 kW |
| clamping length max. |
|---|
| 2250 mm |
| total power requirement |
|---|
| 24 kW |
| weight of the machine ca. |
|---|
| 4,8 t |
| dimensions of the machine ca. |
|---|
| 4,0 x 1,65 x 1,75 m |
Additional Information
Country of origin Germany,
Delivery immediately, Quotation ex stock, free on truck,
Price on request
