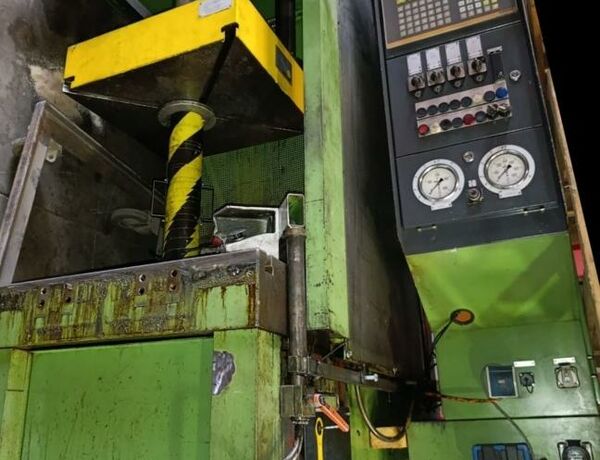

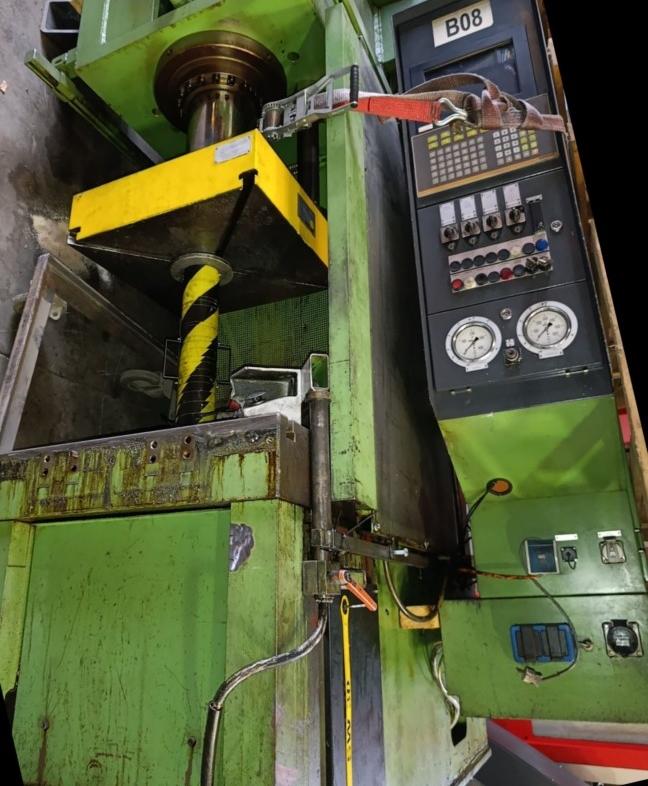

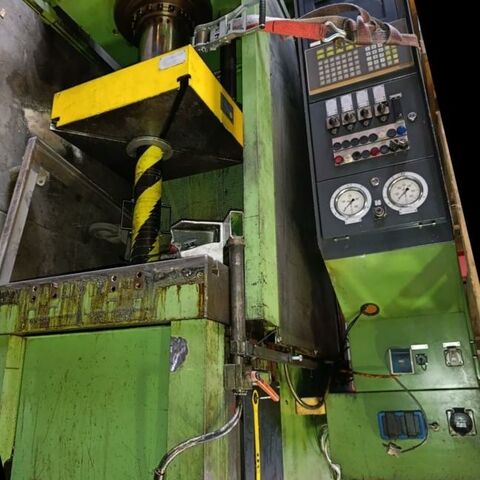

Single Column Press - Hydraulic

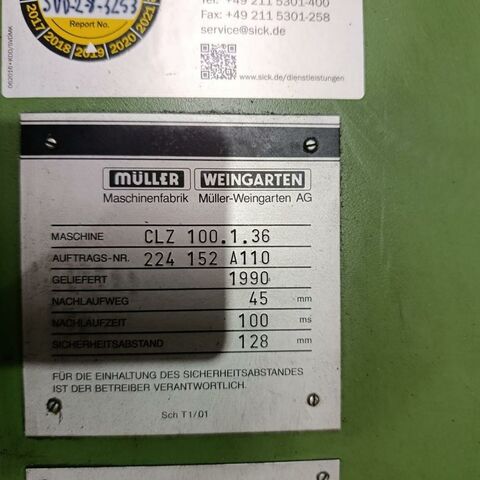

MUELLER CLZ 100.1.36
Catalog no. 23031
Built in 1990,
Machine has cushion in table.
| pressure |
|---|
| 100 t |
| table surface area |
|---|
| 800 x 800 mm |
| ram stroke |
|---|
| 450 mm |
| throat |
|---|
| 400 mm |
| dayligth |
|---|
| 800 mm |
| table height over floor |
|---|
| 900 mm |
| die cushion capacity |
|---|
| 40 t |
| die cushion stroke |
|---|
| 200 mm |
| oil volume |
|---|
| 700 l |
| rapid traverse - down |
|---|
| 185 mm/sec |
| rapid traverse - up |
|---|
| 160 mm/sec |
| working feed |
|---|
| 55 mm/sec |
| total power requirement |
|---|
| 17 kW |
| weight of the machine ca. |
|---|
| 5 t |
| dimensions of the machine ca. |
|---|
| 2,2 x 1,2 x 3,4 m |
Additional Information
Country of origin Germany, Current location warehouse Ennepetal H 2,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
