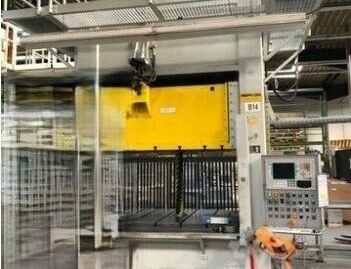

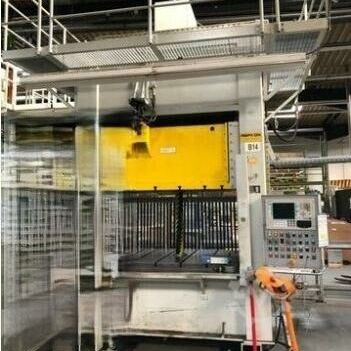

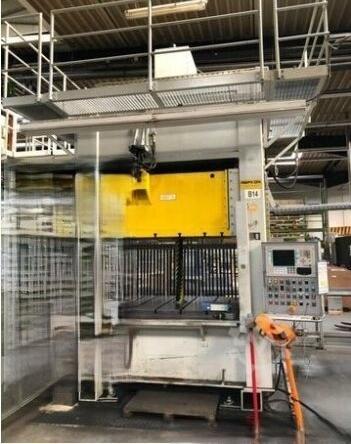

Double-Column Presse
REPKON 2000/800
Catalog no. 23032
Built in 2001, Control Siemens,
Machine is with cushion in table (80 t), light guards and Siemens control for
presses.
| pressure |
|---|
| 200 t |
| table surface area |
|---|
| 1600 x 1300 mm |
| ram stroke |
|---|
| 600 mm |
| dayligth |
|---|
| 900 mm |
| die cushion capacity |
|---|
| 80 t |
| die cushion stroke |
|---|
| 150 mm |
| die cushion area |
|---|
| 1200 x 750 mm |
| distance between columns |
|---|
| 1650 mm |
| table height over floor |
|---|
| 1060 mm |
| ram surface |
|---|
| 1600 x 1300 mm |
| oil volume |
|---|
| 1250 l |
| height over floor |
|---|
| 4000 mm |
| rapid drop speed |
|---|
| 400 mm/sec |
| drawing speed |
|---|
| 42 (80 to) mm/sec |
| drawing speed |
|---|
| 20 (200 to) mm/sec |
| return speed |
|---|
| 410 mm/sec |

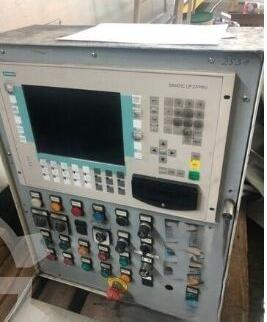

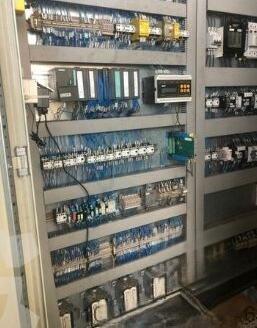

| Control |
|---|
| Siemens |
| total power requirement |
|---|
| 46,5 kW |
| weight of the machine ca. |
|---|
| 15 t |
Additional Information
Country of origin Turkey, Current location warehouse Ennepetal,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
