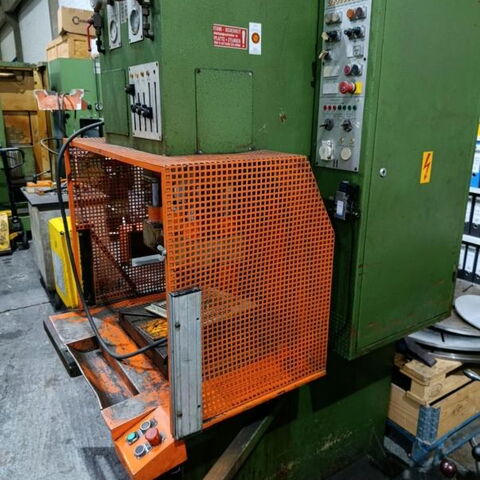

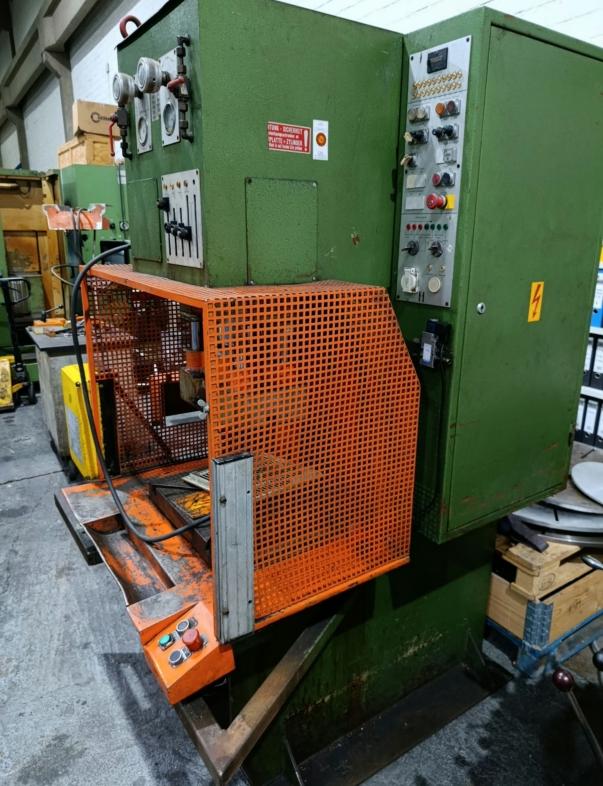

Single Column Press - Hydraulic
SCHOEN SH/C 30
Catalog no. 23033
Built in 1981,

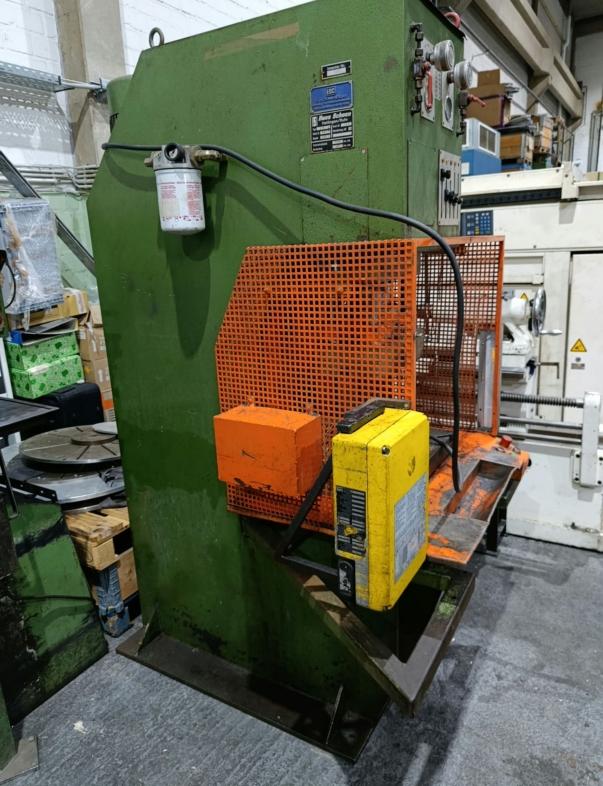

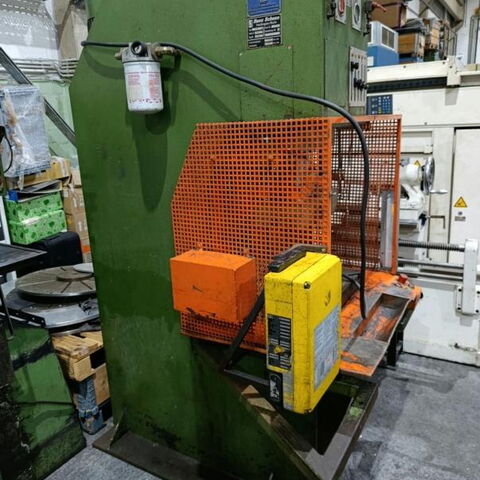

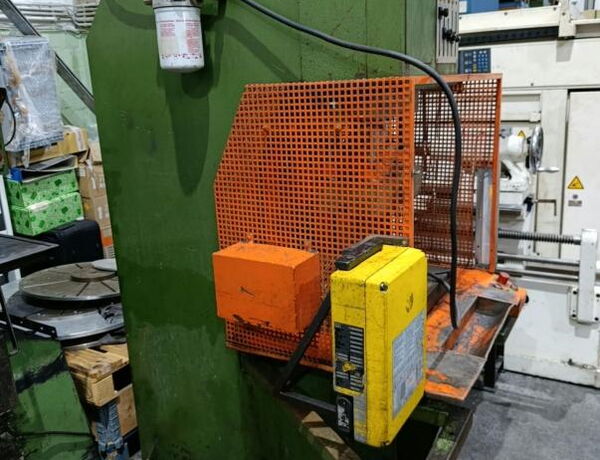

Fabricated construction with light guard and two hand switch.
| pressure |
|---|
| 030 t |
| throat |
|---|
| 250 mm |
| stroke |
|---|
| 100 mm |

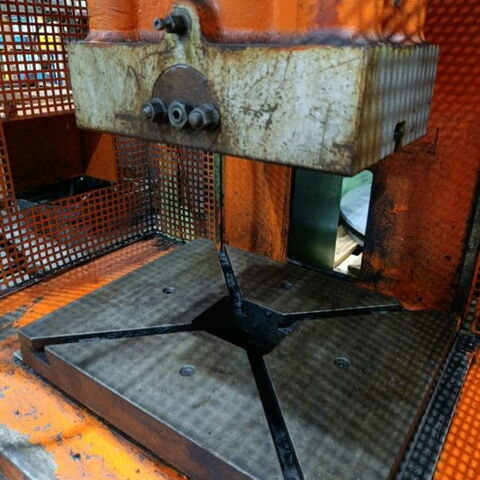

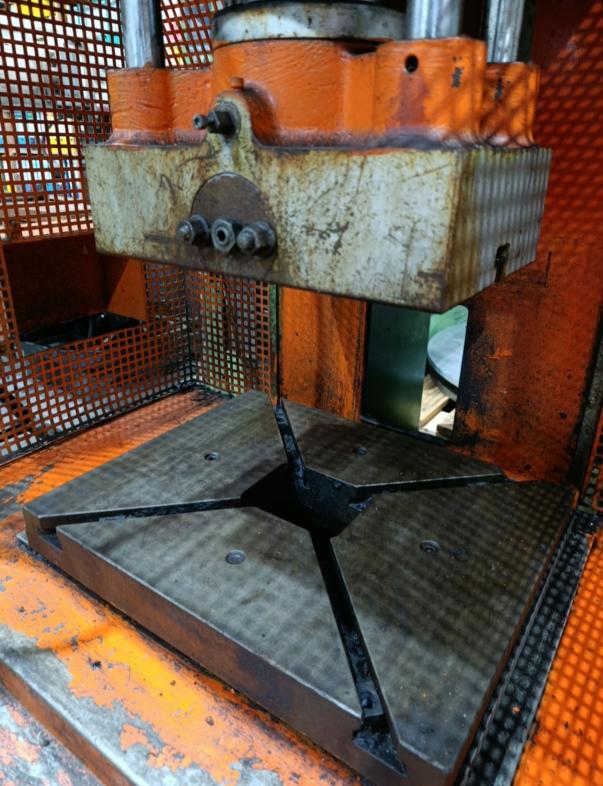

| table-size |
|---|
| 500 x 400 mm |
| max. distance table - ram |
|---|
| 320 mm |
| ram surface |
|---|
| 350 x 220 mm |
| hole in the table |
|---|
| 130 x 100 mm |
| total power requirement |
|---|
| 5,5 kW |
| weight of the machine ca. |
|---|
| 2 t |
| dimensions of the machine ca. |
|---|
| 1,8 x 1,6 x 2,5 m |
Additional Information
Country of origin Germany, Current location warehouse Ennepetal H 2,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
