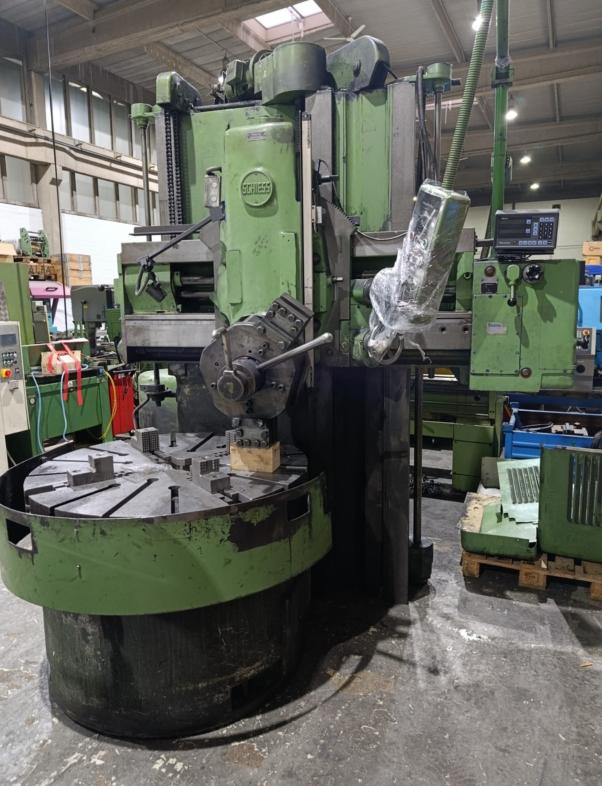

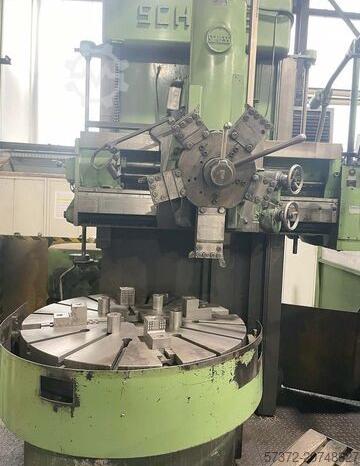

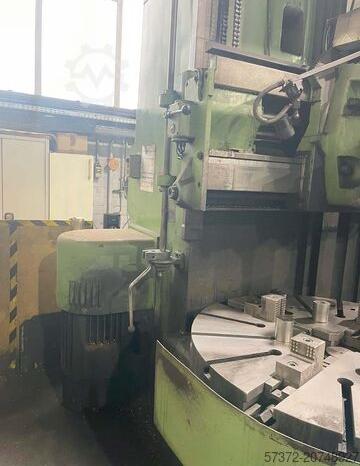

Vertical Turret Lathe - Single Column
SCHIESS KE 125
Catalog no. 401017
Built in 1961,

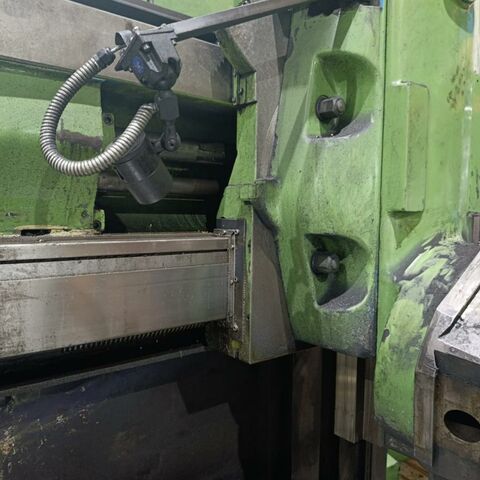

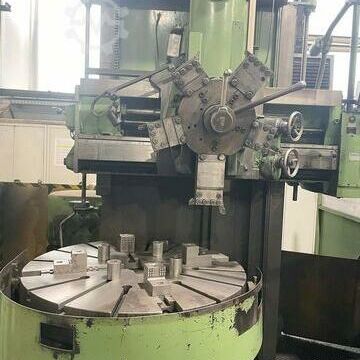

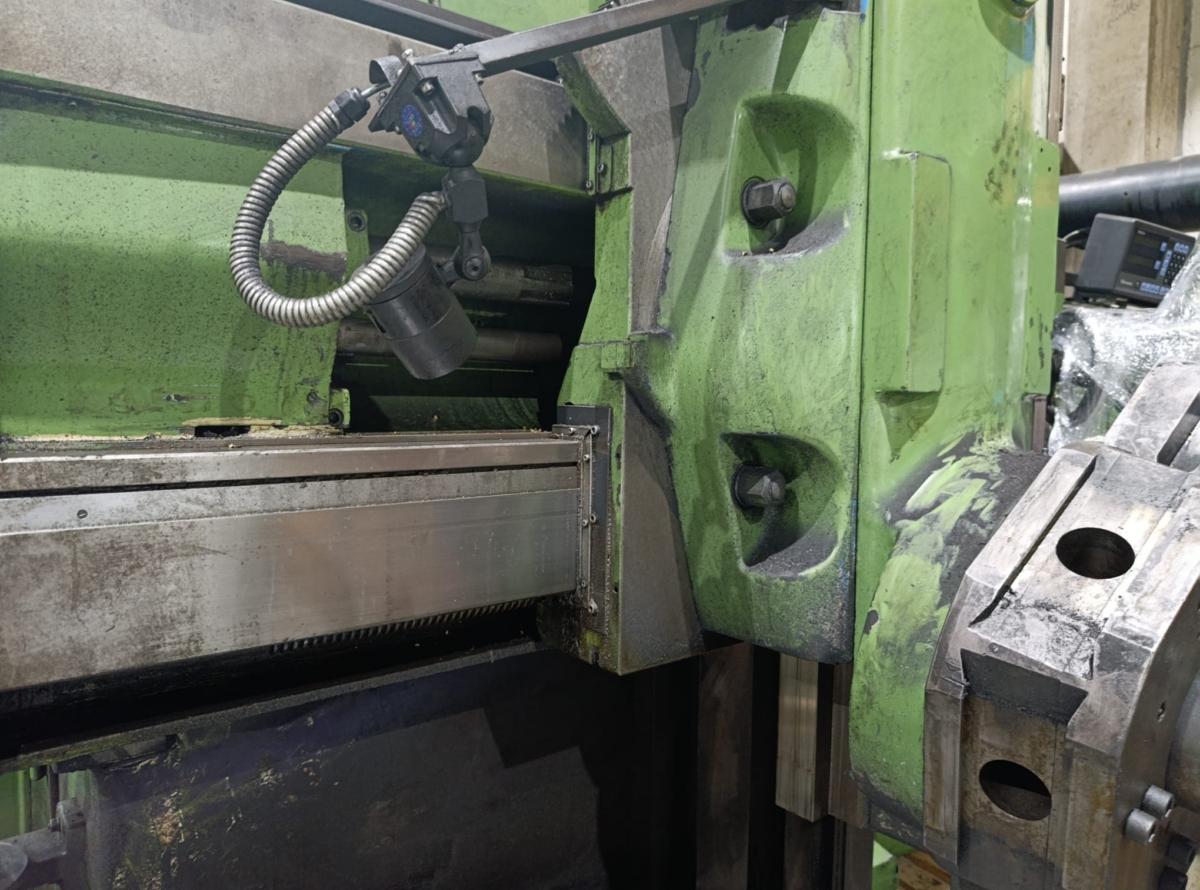

Machine has one vertical head with 5 Pos. Only two holders will be supplied
with the machine. Faceplate bearing was reconditioned. Spindle and spindle nut
of cross axe has to be reconditioned.
| faceplate diameter |
|---|
| 1250 mm |
| swing diameter |
|---|
| 1400 mm |
| turning height |
|---|
| 950 mm |
| drilling depth in one stroke |
|---|
| 650 mm |
| distance face plate/tool carrier |
|---|
| 1000 mm |
| vertical adjustment of the crossrail |
|---|
| 800 mm |
| workpiece weight |
|---|
| 5 t |
| speeds |
|---|
| 10,2 - 126,5 U/min |
| feeds |
|---|
| 0,07 - 5 mm/U |
| rapid traverse |
|---|
| 1300 mm/min |
| weight of the machine ca. |
|---|
| 12 t |
| dimensions of the machine ca. |
|---|
| 2,6 x 2,8 x 3,1 m |
Additional Information
Country of origin Germany, Current location warehouse Ennepetal H 2,
Delivery immediately, Quotation ex stock, free on truck,
Price on request
