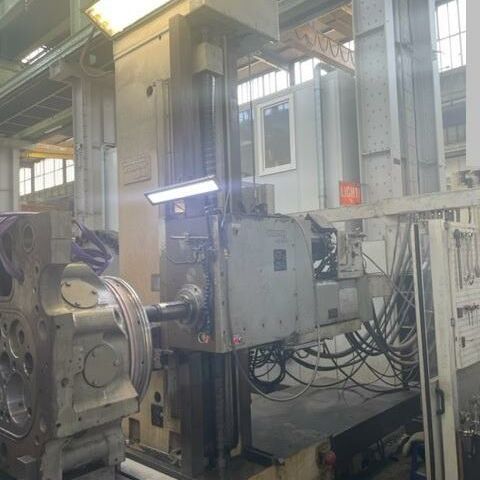

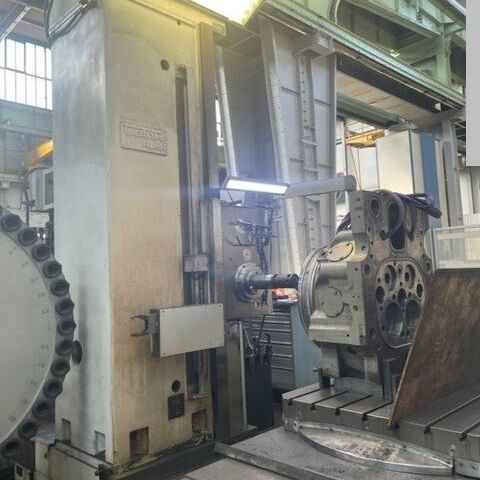

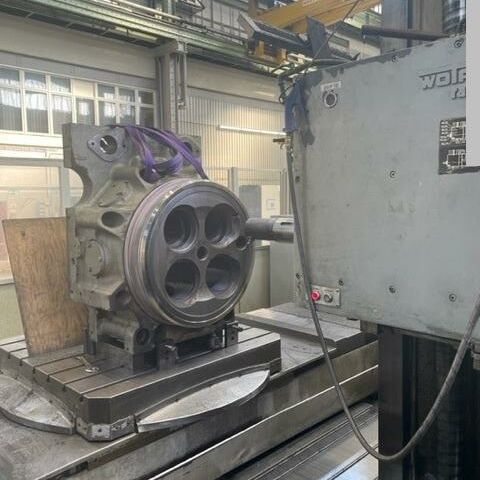

Table Type Boring and Milling Machine
WOTAN Rapid 1 R/6 (CNC)
Catalog no. 70104
Built in 1980,

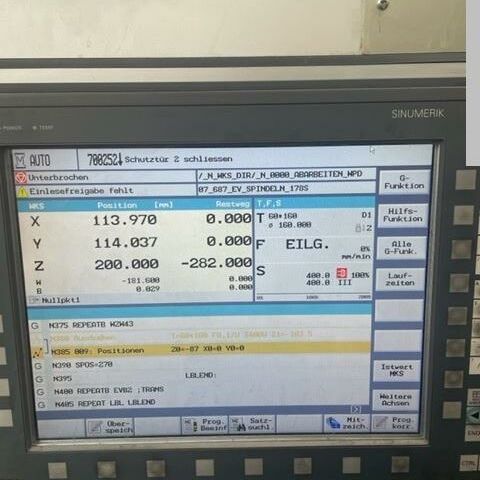

Machine was complete reconditioned and retrofitted with Siemens 840 D control
in 2008 for a price of 400.000,- Euro !

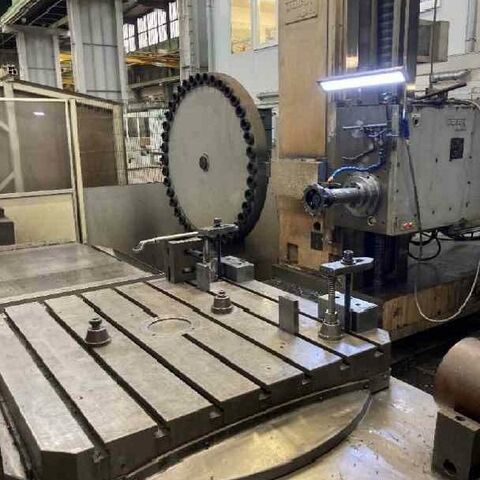

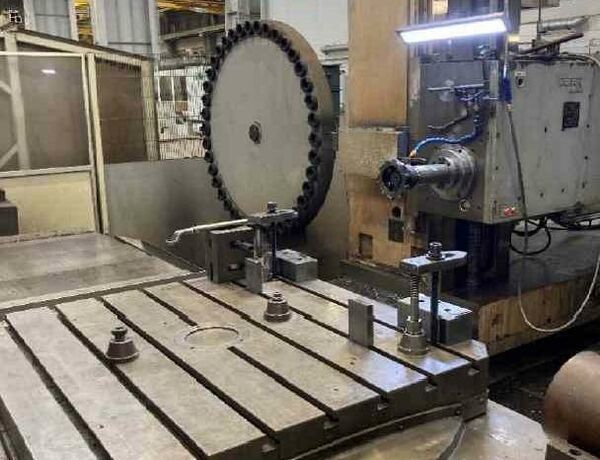

Machine has a 40 position ATC, 5 CNC axes with ball screw drives (X,Y,Z,W,B),

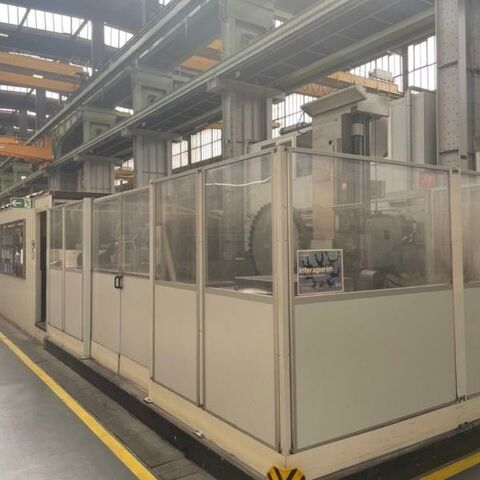

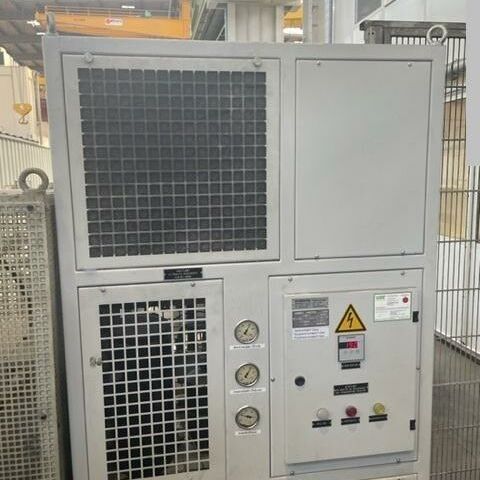

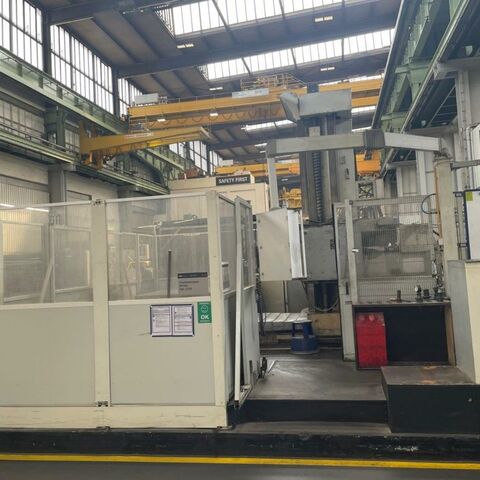

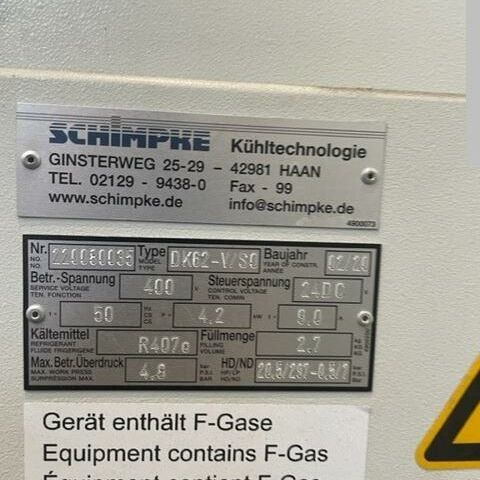

housing around machine with safety doors, cooling arrangement built in 2020 and
new spindle drive Siemens built in 2008.
| spindle diameter |
|---|
| 105 mm |
| cross travel of table |
|---|
| 1600 mm |
| vertical adjustment of drilling slide |
|---|
| 1600 mm |
| longitudinal movement of column |
|---|
| 1000 mm |
| spindle stroke - max. |
|---|
| 600 mm |
| spindle taper ISO |
|---|
| SK 50 |
| spindle turning speed range |
|---|
| 6,3- 1600 U/min |
| table surface area |
|---|
| 1120 x 1120 mm |
| spindle motor |
|---|
| 45 kW |
| voltage |
|---|
| 400 V |
| feeds x/y/z -stepless |
|---|
| 0 - 5000 mm/min |
| rapid travel x/y/z |
|---|
| 10 m/min |
| table load |
|---|
| 6 t |
| table rotation |
|---|
| 360 ° |
| total power requirement |
|---|
| 82 kW |
| weight of the machine ca. |
|---|
| 18 t |
| dimensions of the machine ca. |
|---|
| 4,8 x 4,9 x 4,2 m |
Additional Information
Country of origin Germany, Current location ex site,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
