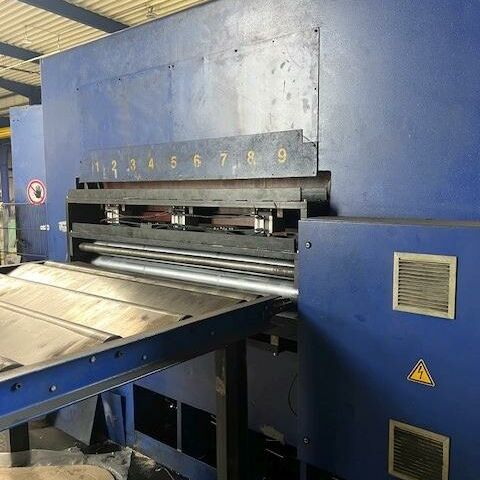

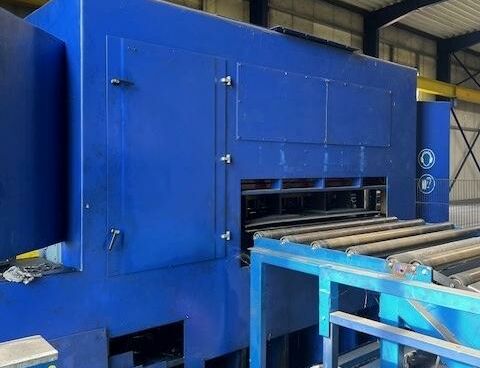

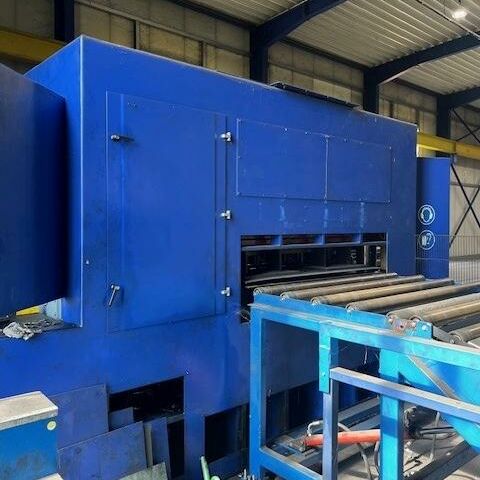

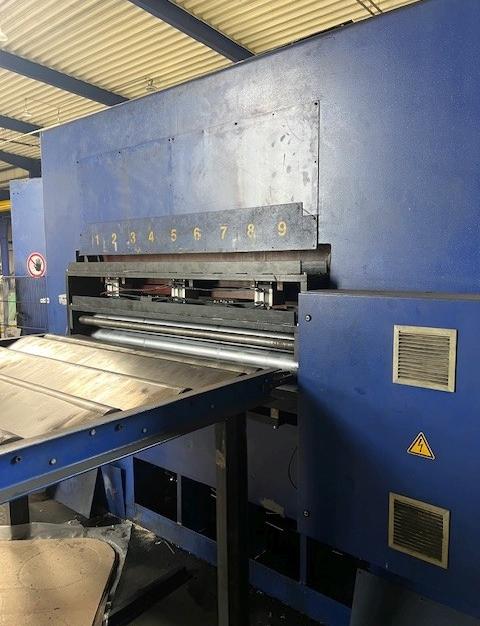

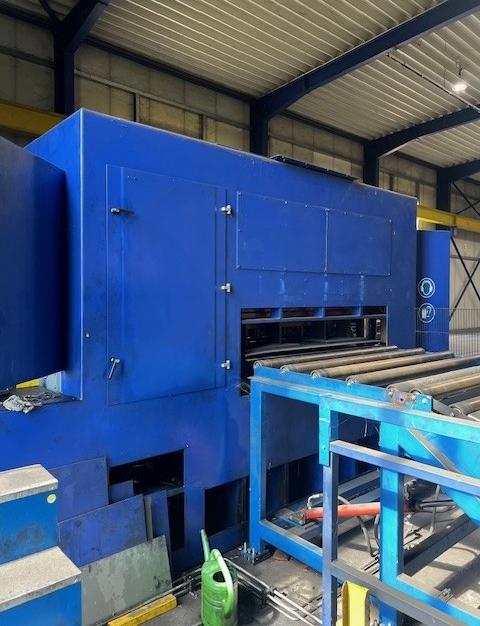

Straightening Machine - Cold Plate
LORENZ BRM50/1720.21-WD-SW-ZW
Catalog no. 90024
Built in 2001,

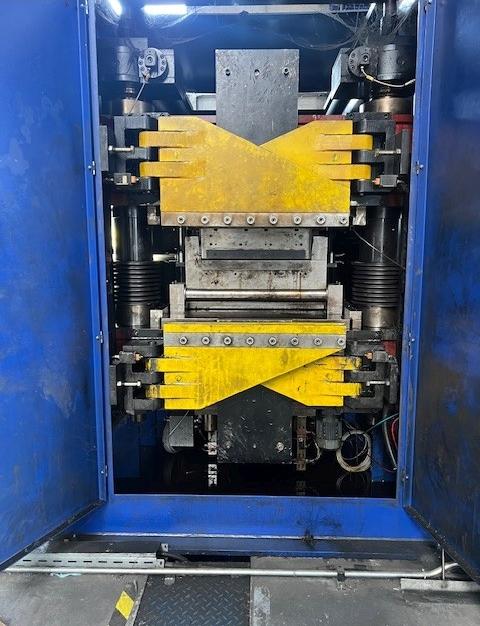

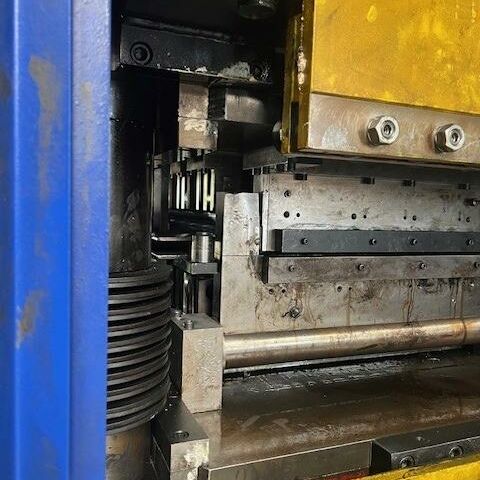

6 HI High-performance straightening machine with 21 rolls for fine
straightening work of steel or non-ferrous metals. Machine has 23 intermediate
rolls and 18 support points. Working rolls are adjustable with DRO in 0,01 mm.
Main Gearbox was renewed in 2021.
| sheet width |
|---|
| 1650 mm |
| plate thickness |
|---|
| 0,5- 3 mm |
| number of rolls |
|---|
| 21 |
| straightening feed |
|---|
| 0- 60 m/min |
| straightening roll diameter |
|---|
| 50 mm |
| adjustment |
|---|
| 30 mm |
| weight of the machine ca. |
|---|
| 24,5 t |
| dimensions of the machine ca. |
|---|
| 4,5x 2 x 2,8 m |
| voltage |
|---|
| 400 V |
| passage width |
|---|
| 1720 mm |
| number of support rolls |
|---|
| 18 |

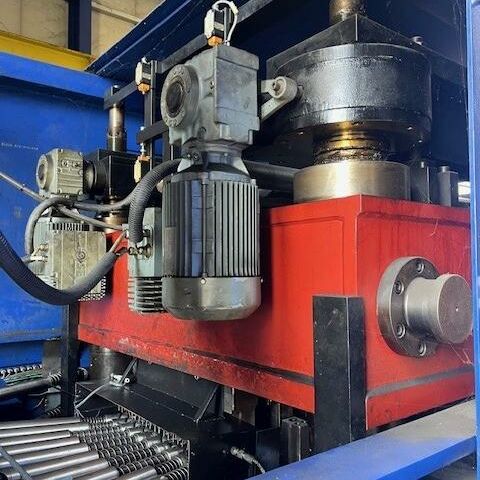

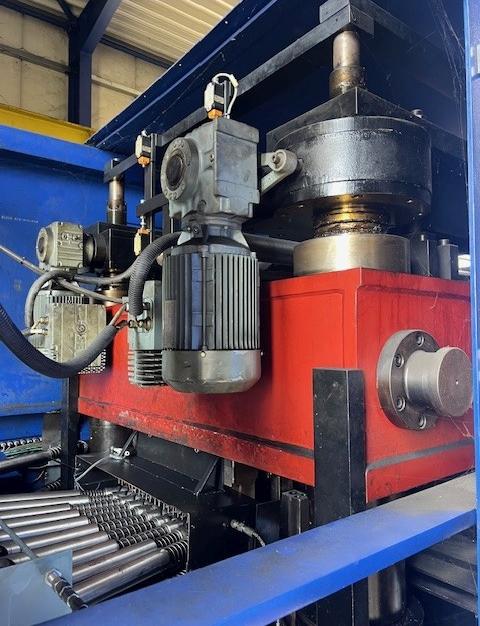

| main drive motor |
|---|
| 45 kW |
| run-in height |
|---|
| 1250 mm |
Additional Information
Country of origin Germany,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
