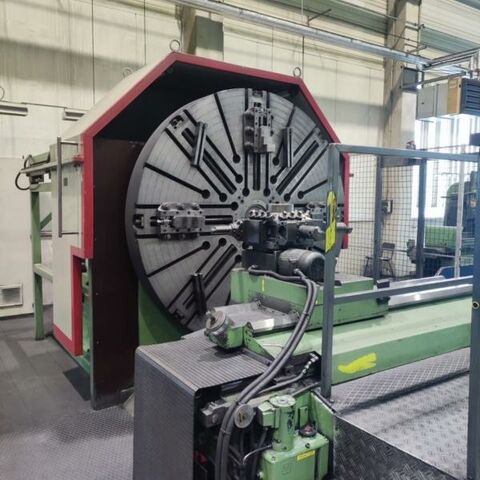

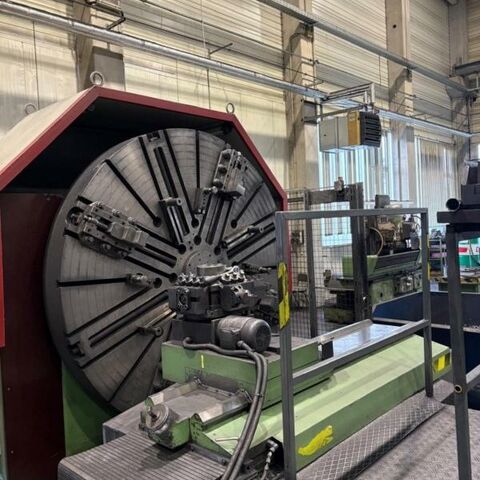

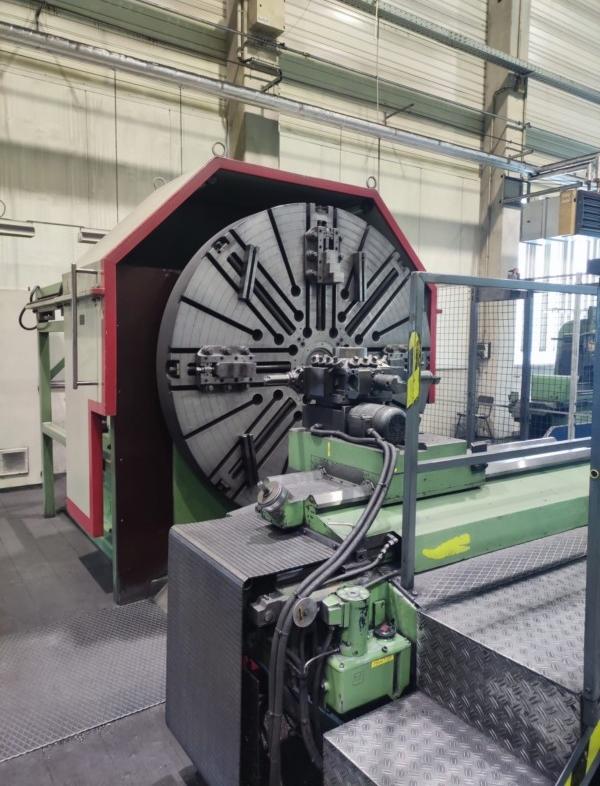

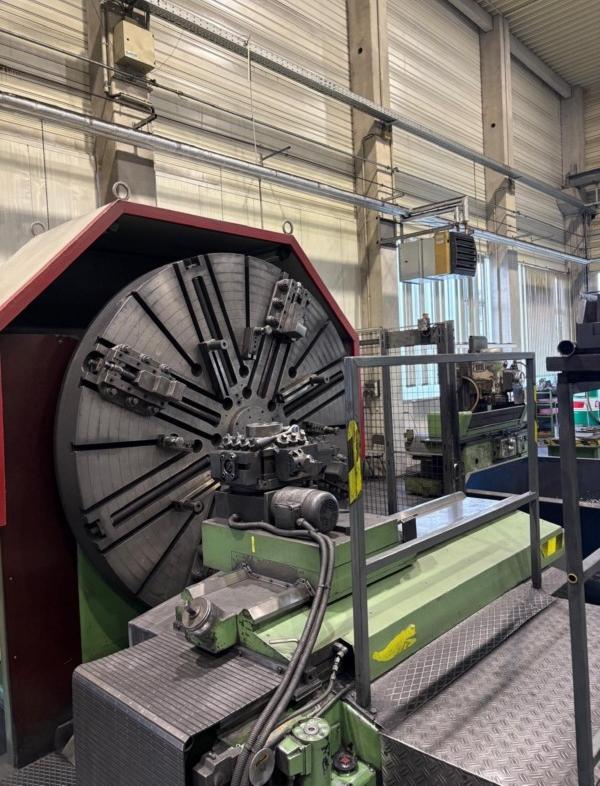

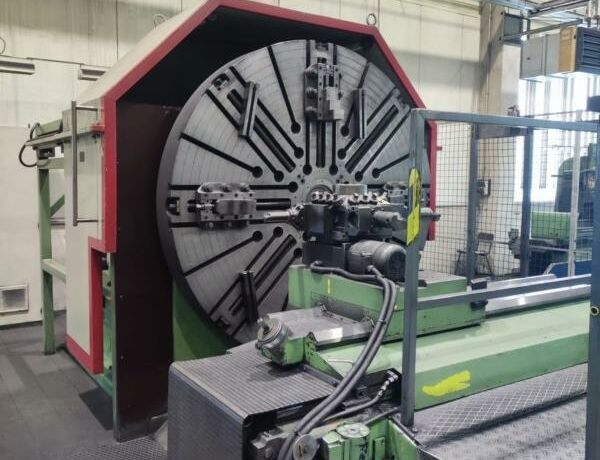

Facing Lathe
RAVENSBURG KH 100/24
Catalog no. 20206
Built in 1970, Control S 840 D,

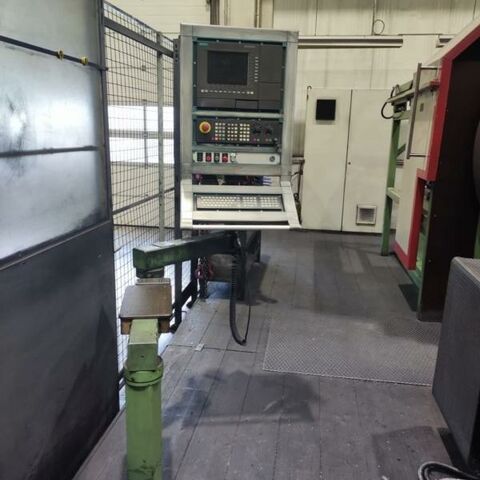

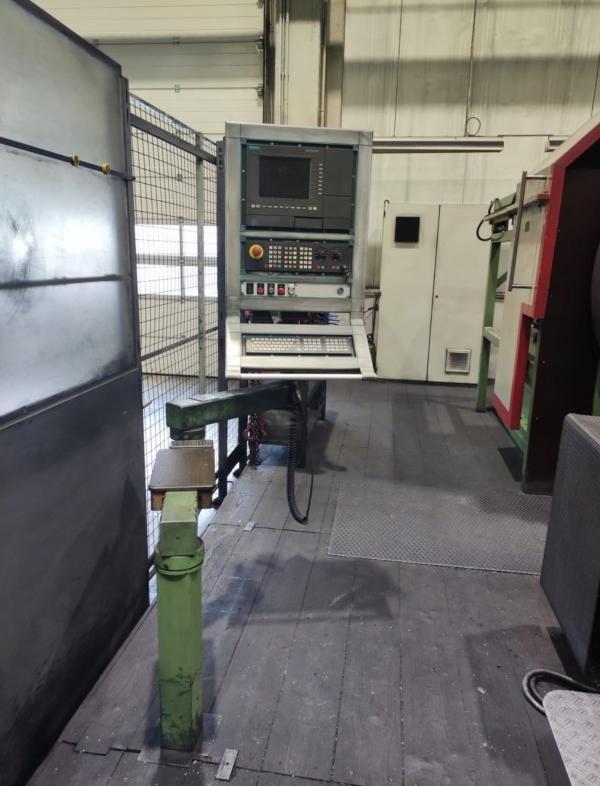

Machine was reconditioned and modernized in 2015 with Siemens 840 D CNC
control. Originaly it was built in 1980.

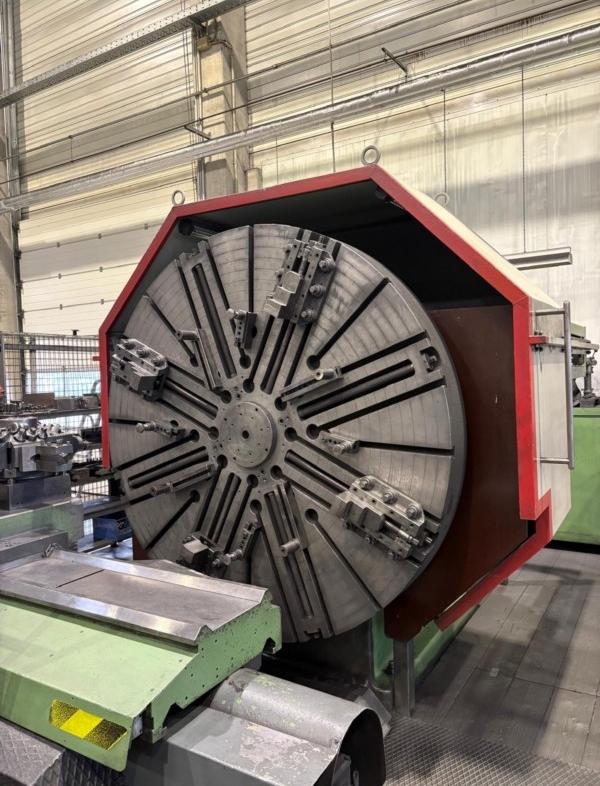

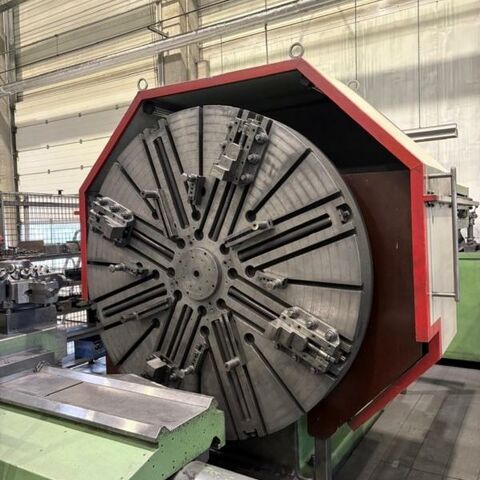

| faceplate diameter |
|---|
| 2000 mm |
| turning dia. in gap |
|---|
| 2400 mm |
| length of gap |
|---|
| 200- 630 mm |
| travel -x axis |
|---|
| 1700 mm |
| travel -z axis |
|---|
| 400 (+550) mm |
| faceplate turning speed range -stepless- |
|---|
| 5- 180 U/min |
| centre height over plate |
|---|
| 1140 mm |
| diameter of main spindle |
|---|
| 285 mm |
| spindle bore |
|---|
| 90 mm |

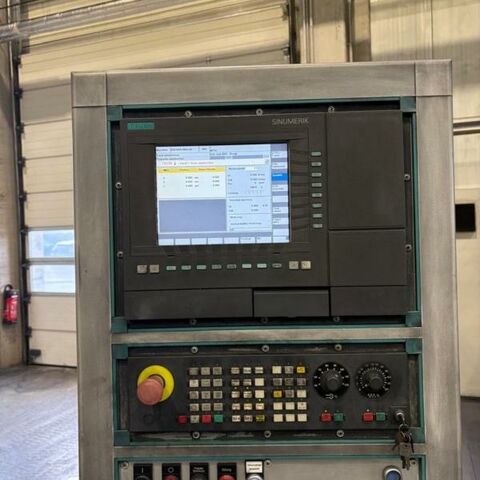

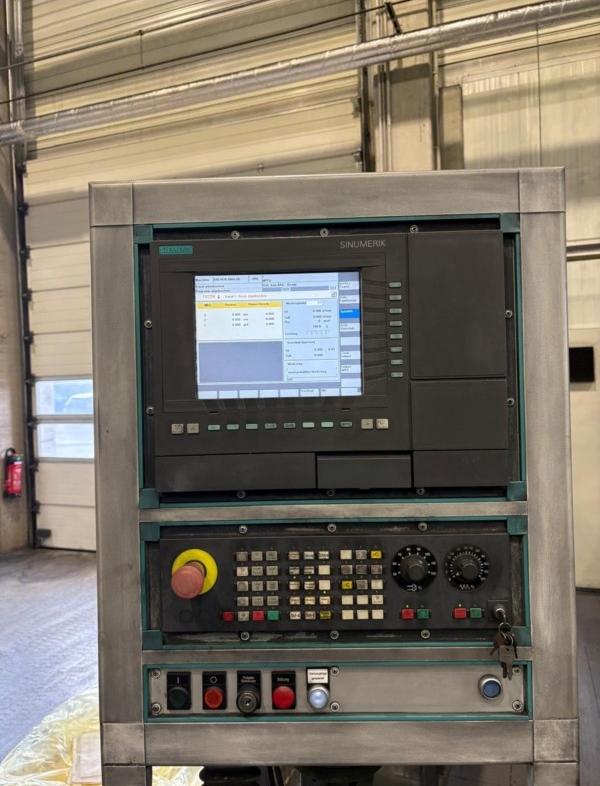

| Control |
|---|
| S 840 D |
| max. workpiece weight |
|---|
| 5000 kg |
| max. torque on the faceplate |
|---|
| 3000 Nm |
| total power requirement |
|---|
| 57 kW |
| weight of the machine ca. |
|---|
| 20 t |
| dimensions of the machine ca. |
|---|
| 5,5 x 3 x 2,8 m |
Additional Information
Country of origin Germany,
Delivery as per agreement, Quotation ex stock, free on truck,
Price on request
